PRV Audio 6MB400 6.5" Midbass Woofer

PRV AudioPart # 294-3524
Model: 6MB400
The 6MB600 can be summed up in three words: small, strong, and smooth. This compact midbass woofer will shock you with its power handling and suave punch.

Key Features

  • Punches above its weight class with high power handling for its size
  • Double-rolled surround gives a smoother response
  • Silver lead wires for better connectivity
  • A compact design means the magnet is low-profile yet powerful
  • A naturally damp paper cone helps bring a wide frequency response of 95 HZ to 7,500 Hz
  • Excels are reproducing the human voice
Your Price: $39.91
MSRP: $49.89
Save $9.98 (20%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when PRV Audio 6MB400 6.5" Midbass Woofer is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 6MB400 6.5" Midbass Woofer

This midbass woofer will impress whether in your car, home, or a professional audio system. The 6MB400 is preeminent in the reproduction of human vocal range. The solid, intelligent design brought to you by PRV will leave you feeling astonished.

Product Details

BrandPRV Audio
Model6MB400
Part Number294-3524
UPC810075525250
Unit of MeasureEach
Weight22.9

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance
Frequency Response95 to 7,500Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)117.4Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.53mH
Mechanical Q (Qms)8.97
Electromagnetic Q (Qes)0.64
Total Q (Qts)0.6
Compliance Equivalent Volume (Vas)0.2ft³
Mechanical Compliance of Suspension (Cms)0.187mm/N
BL Product (BL)8.26T·m
Diaphragm Mass Inc. Airload (Mms)9.8g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)147cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

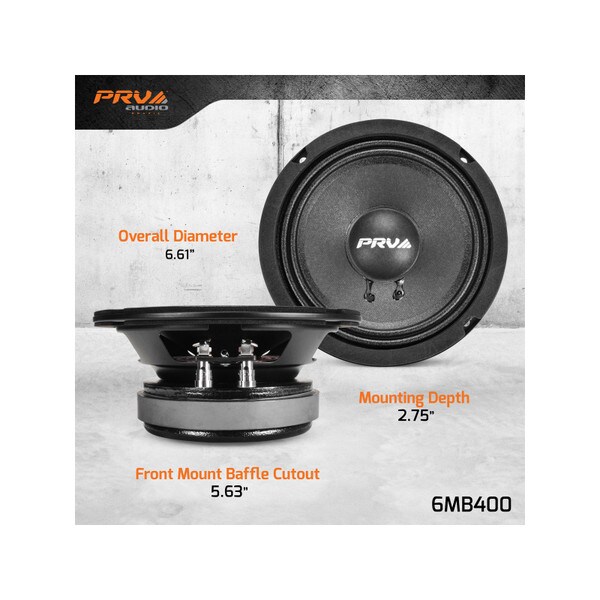

Mounting Information

Overall Outside Diameter6.61"
Baffle Cutout Diameter5.63"
Depth2.75"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.179ft³
Sealed F3167.5Hz
Vented Volume0.439ft³
Vented F380.96Hz
