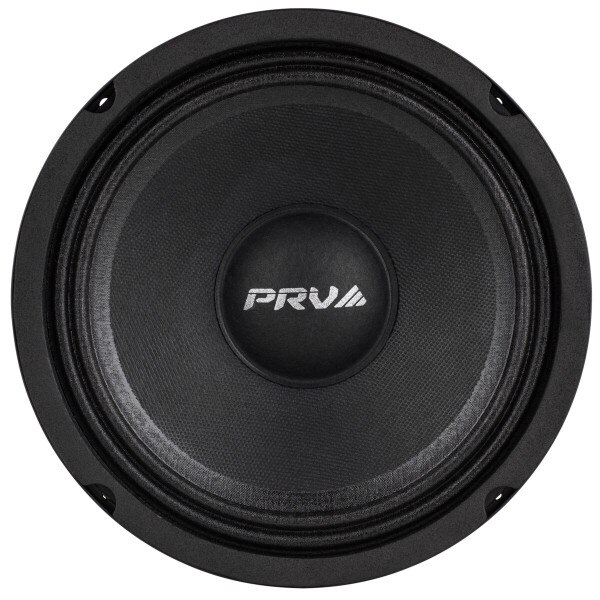

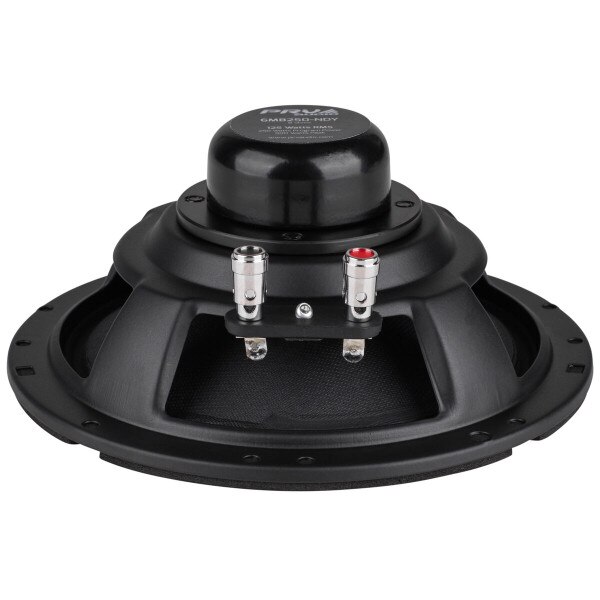

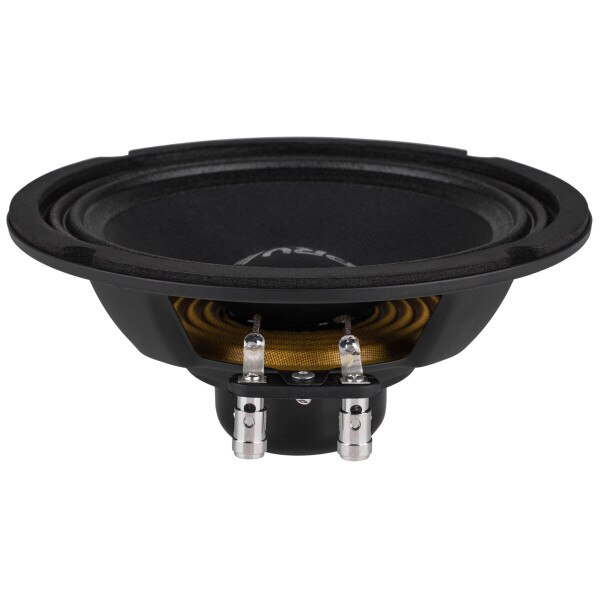

CLEARANCE PRV Audio 6MB250-NDY Neodymium 6-1/2" Midbass Woofer 8 Ohm

PRV AudioPart # 294-2701
Model: 6MB250-NDY
For high quality, high output midbass and midrange in pro audio, car audio, even as a replacement woofer in studio monitor systems, choose PRV Audio's 6MB250-NDY 6-1/2" neodymium midbass woofer.

Key Features

  • Great choice for pro audio and car audio systems
  • Smooth midrange combined with strong midbass punch
  • Neodymium motor is shelf shielded and reduces mounting depth
  • 125W RMS power handling
Get Notified When Available

We'll send you an email when PRV Audio 6MB250-NDY Neodymium 6-1/2" Midbass Woofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

PRV Audio 6MB250-NDY Neodymium 6-1/2" Midbass Woofer 8 Ohm

PRV Audio's 6MB250-NDY 6-1/2" midbass woofer offers punchy midbass combined with a smooth midrange and response up to 6,000 Hz. The size and punch of this pro audio driver makes it perfect for use as a midrange driver in a 3-way loudspeaker cabinet or as a woofer in your studio monitor.

A thick, yet light and rigid paper cone, 1.5" voice coil, durable spider suspension, and a woven surround supported by a sturdy steel basket. All of this, and the reduced mounting depth due to the neodymium motor, ensures its ability to withstand long hours of operation making this driver a popular speaker choice amongst high output car audio enthusiasts.

Product Details

BrandPRV Audio
Model6MB250-NDY
Part Number294-2701
UPC799928733748
Unit of MeasureEach
Weight1.45

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)125 Watts
Power Handling (MAX)250 Watts
Impedance8Ω
Frequency Response115 to 6,500Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)113.6Hz
DC Resistance (Re)7.4Ω
Voice Coil Inductance (Le)0.54mH
Mechanical Q (Qms)11.65
Electromagnetic Q (Qes)0.76
Total Q (Qts)0.71
Compliance Equivalent Volume (Vas)0.17ft³
BL Product (BL)9.45T·m
Diaphragm Mass Inc. Airload (Mms)12.88g
Maximum Linear Excursion (Xmax)4.25mm
Surface Area of Cone (Sd)152cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.57"
Baffle Cutout Diameter5.6"
Depth2.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.35ft³
Sealed F3129Hz
Vented Volume0.6ft³
Vented F379.3Hz
