  • PRV Audio 6MB250-NDY-4 6-1/2" Neodymium Midbass Woofer 4 Ohm

CLEARANCE PRV Audio 6MB250-NDY-4 6-1/2" Neodymium Midbass Woofer 4 Ohm

PRV AudioPart # 294-2839
Model: 6MB250-NDY-4

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
For high quality, high output midbass and midrange in pro audio, car audio, even as a replacement woofer in studio monitor systems, choose PRV Audio's 6MB250-NDY-4 6-1/2" neodymium midbass woofer.

Key Features

  • Powerful midbass punch with smooth response up to 5,000 Hz
  • Less than 2 pounds and only 2.5" mounting depth is ideal for high SPL car audio
  • 94 dB efficient delivers high output with lower power systems
  • Paper cone provides smooth and natural response
Get Notified When Available

We'll send you an email when PRV Audio 6MB250-NDY-4 6-1/2" Neodymium Midbass Woofer 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

PRV Audio 6MB250-NDY-4 6-1/2" Neodymium Midbass Woofer 4 Ohm

PRV Audio's 6MB250-NDY-4 6-1/2" midbass woofer offers punchy midbass combined with a smooth midrange and response up to 5,000 Hz. The size and punch of this pro audio driver makes it perfect for use as a midrange driver in a 3-way loudspeaker cabinet or as a woofer in your studio monitor. In addition, at less than 2 pounds it won't add much to your cabinet weight or your car audio installs.

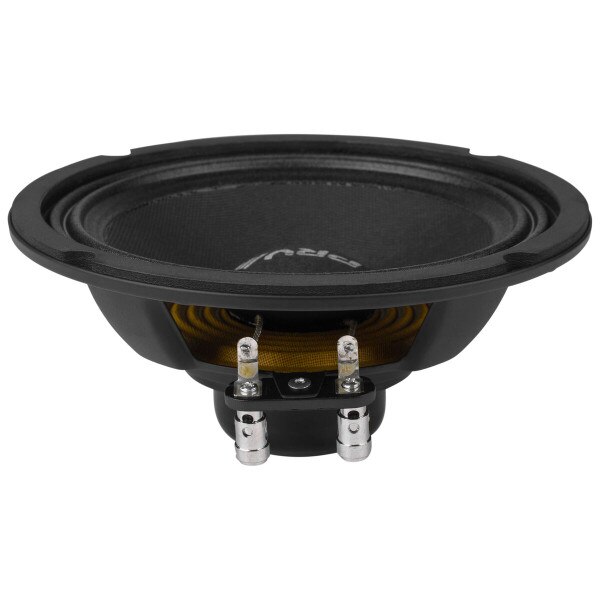

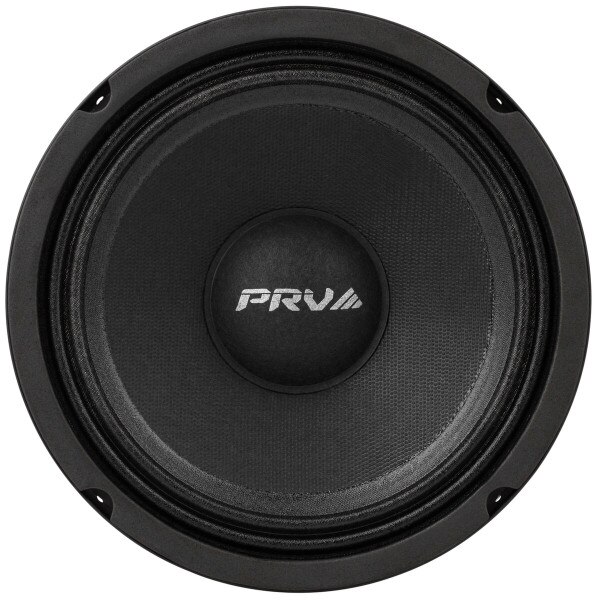

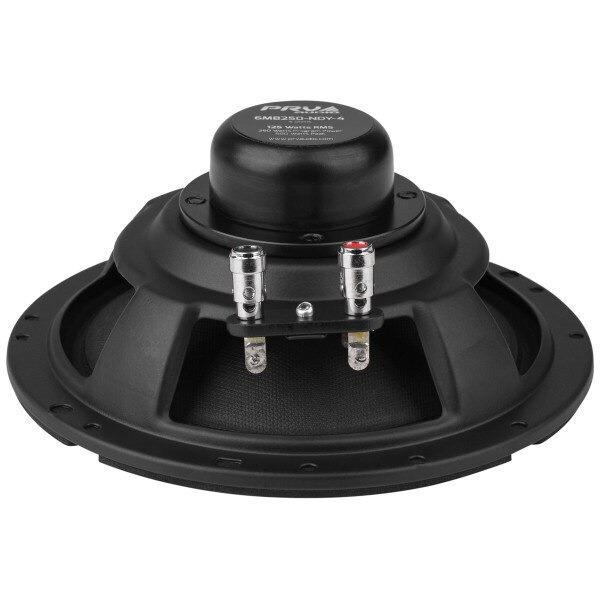

The 1.5" voice coil, durable spider suspension and the woven surround all supported by the sturdy steel basket ensures its ability to withstand long hours of operation without compromising efficiency of the speaker. A thick, yet light rigid cone ensures accurate response and power handling.

Looking for car door speakers? Thanks to the compact but powerful neodymium magnet, the 6MB250-NDY-4 is a perfect low-profile lightweight option for any high SPL car audio system.

Product Details

BrandPRV Audio
Model6MB250-NDY-4
Part Number294-2839
UPC602938021401
Unit of MeasureEach
Weight1.5

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.1
Power Handling (RMS)125 Watts
Power Handling (MAX)250 Watts
Impedance4Ω
Frequency Response115 to 6,500Hz
Sensitivity94dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)109.4Hz
DC Resistance (Re)4Ω
Voice Coil Inductance (Le)0.38mH
Mechanical Q (Qms)8.61
Electromagnetic Q (Qes)0.62
Total Q (Qts)0.58
Compliance Equivalent Volume (Vas)0.17ft³
Mechanical Compliance of Suspension (Cms)0.144mm/N
BL Product (BL)8.03T·m
Diaphragm Mass Inc. Airload (Mms)14.62g
Maximum Linear Excursion (Xmax)4.25mm
Surface Area of Cone (Sd)154cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.57"
Baffle Cutout Diameter5.63"
Depth2.8"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F3149.2Hz
Vented Volume0.45ft³
Vented F382.3Hz
