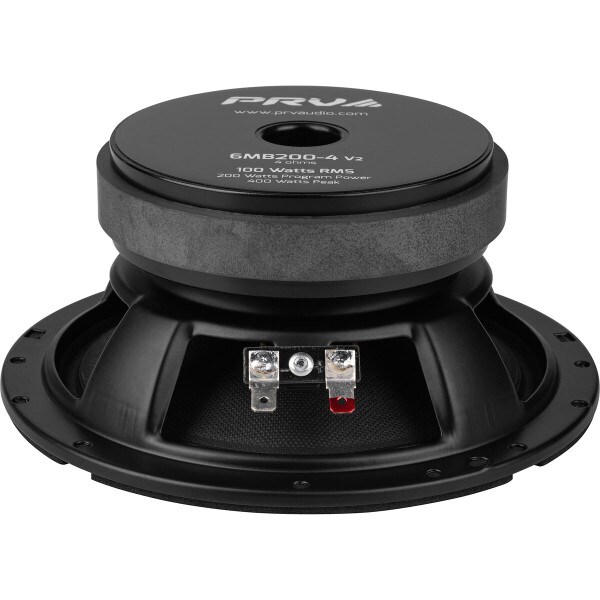

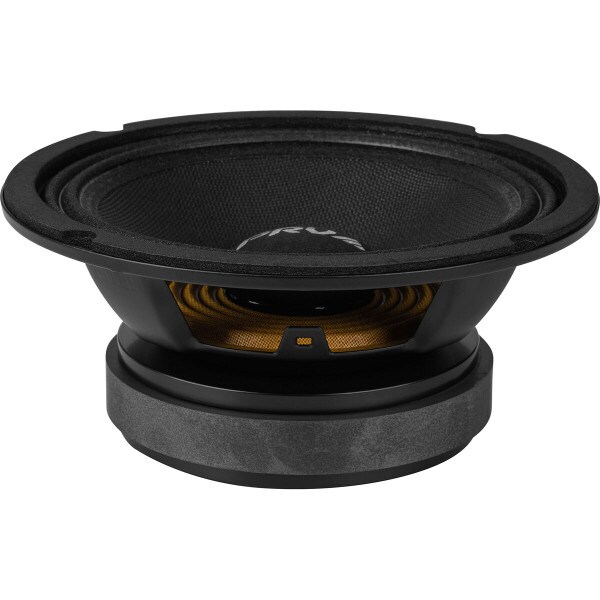

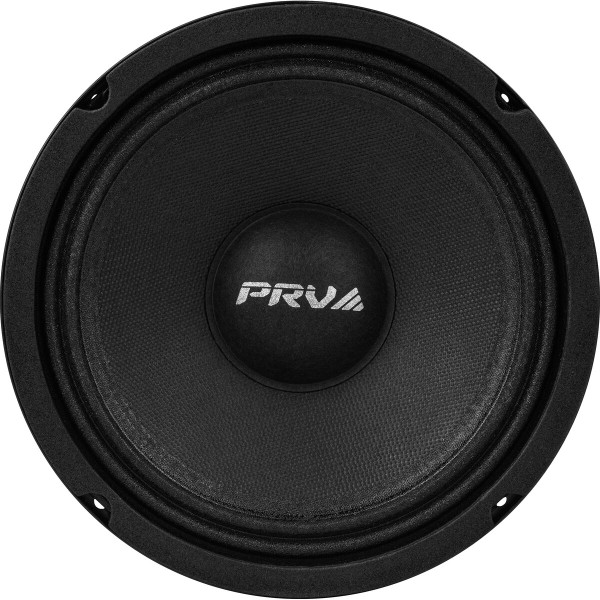

PRV Audio 6MB200-4 V2 6" Midbass Woofer 4 Ohm

PRV AudioPart # 294-3055
Model: 6MB200-4 V2
1 Question, 3 Answers or
The PRV 6MB200-4 v2 mid bass woofer offers outstanding durability and awesome impactful midbass even in small enclosures. This woofer is perfect for home, car, and even portable audio installations as a midbass or woofer.

Key Features

  • Great choice for home, car, or portable audio systems
  • Smooth midrange combined with strong midbass punch
  • Strong, yet lightweight stamped steel frame
  • Frequency response up to 6,500 Hz
Your Price: $29.91
MSRP: $37.39
Save $7.48 (20%)
Bulk Pricing
12 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 6MB200-4 V2 6" Midbass Woofer 4 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 6MB200-4 V2 6" Midbass Woofer 4 Ohm

The 6MB200-4 v2 offers very smooth mid range response, up to 6,500 Hz, and is a perfect option for mid range driver replacements in three-way cabinets. The magnet and motor assembly are attached to a sturdy reinforced steel frame, ensuring a solid support structure and long lasting play in most any environment. Its lightweight of only 3.3 Lbs helps to keep your enclosures light, making it perfect for car audio and portable audio applications.

Product Details

BrandPRV Audio
Model6MB200-4 V2
Part Number294-3055
UPC602938022026
Unit of MeasureEach
Weight3.75

Product Specifications

Nominal Diameter6"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance4Ω
Frequency Response125 to 6,500Hz
Sensitivity93.5dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)123.79Hz
DC Resistance (Re)3.7Ω
Voice Coil Inductance (Le)0.18mH
Mechanical Q (Qms)20.84
Electromagnetic Q (Qes)1.02
Total Q (Qts)0.97
Compliance Equivalent Volume (Vas)0.14ft³
Mechanical Compliance of Suspension (Cms)0.139mm/N
BL Product (BL)5.79T·m
Diaphragm Mass Inc. Airload (Mms)11.89g
Maximum Linear Excursion (Xmax)4.8mm
Surface Area of Cone (Sd)154cm²

Materials of Construction

Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel

Mounting Information

Overall Outside Diameter6.53"
Baffle Cutout Diameter5.63"
Depth2.6"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.35ft³
Sealed F3116.5Hz
