  • PRV Audio 69MR500-4 BULLET 6" x 9" Midrange Speaker 4 Ohms

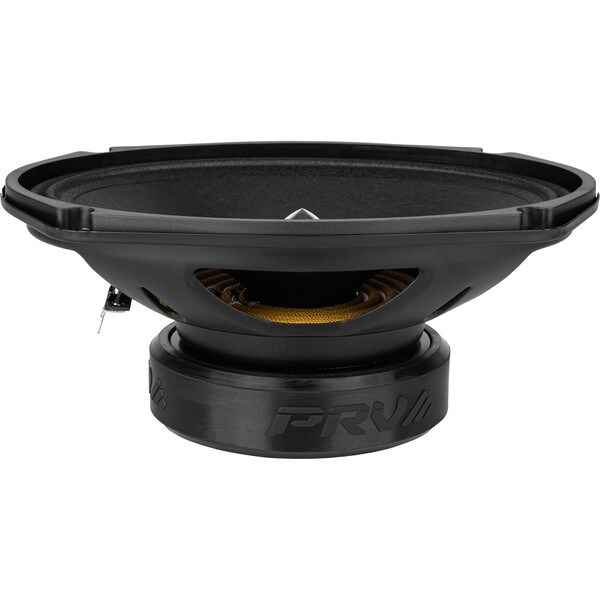

PRV Audio 69MR500-4 BULLET 6" x 9" Midrange Speaker 4 Ohms

PRV AudioPart # 294-3133
Model: 69MR500-4 BULLET
Continuing PRV Audio's "pro audio on wheels" concept, the 69MR500-4 BULLET 6" x 9" midrange is built to deliver the same performance as a professional loudspeaker. Featuring an aluminum phase plug for improved high frequency response, this driver is able to give high levels of output from your custom door or rear deck.

Key Features

  • Extremely wide frequency response from 145 to 12,500 Hz for smooth midrange output
  • 96 dB efficient and 250 watt RMS power handling for incredible output capability
  • Aluminum phase plug improved high frequency response on and off-axis
  • Powerful motor and low moving mass to provide incredible dynamics and detail
Your Price: $64.91
MSRP: $81.14
Save $16.23 (20%)
Bulk Pricing
Only 4 In Stock More due on 7/18/2025
Get Notified When Available

We'll send you an email when PRV Audio 69MR500-4 BULLET 6" x 9" Midrange Speaker 4 Ohms is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 69MR500-4 BULLET 6" x 9" Midrange Speaker 4 Ohms

The 69MR500-4 BULLET 6" x 9" midrange speaker uses a "bullet" phase plug made from pure aluminum to lower inductance and act as a heat sink cooling system for the voice coil. Machined to perfection for even sound dissipation the phase plug also improves off-axis frequency response. Beyond good looks, this cone is extremely light, providing excellent damping to keep an incredibly natural yet accurate sound with incredible efficiency.

A triple roll cloth surround, combined with an optimized fiber pressed paper cone, ensure the speaker’s frequency response is smooth and extends to high range making an easy transition to a super tweeter. The suspension design of the 69MR500-4 BULLET features a single layer spider – which connects to the coil former with premium stitched lead wires. The cone is driven by a copper-clad aluminum wire voice coil providing high efficiency and excellent power handling.

This driver is constructed of high-performance characteristics and high-quality components to provide exceptional clarity, detail, and dynamic sound. You can expect outstanding sound stage quality and realistic sound reproduction for a great value. This is the new standard of value in high-performance bullet speakers.

Built to perform and able to handle 500 watts of continuous power, this midrange is the perfect option to replace those old 2-way or 3-way coaxial speakers. Engineered and designed to easily transform a stock system into one that can deliver concert levels. The 69MR500-4 BULLET is ideal for audiophiles seeking tremendous output without radical modifications.

Product Details

BrandPRV Audio
Model69MR500-4 BULLET
Part Number294-3133
UPC619620087652
Unit of MeasureEach
Weight5.15

Product Specifications

Nominal Diameter6 x 9"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance4Ω
Frequency Response150 to 12,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)149Hz
DC Resistance (Re)3.3Ω
Voice Coil Inductance (Le)0.13mH
Mechanical Q (Qms)16.8
Electromagnetic Q (Qes)1.2
Total Q (Qts)1.12
Compliance Equivalent Volume (Vas)0.183ft³
Mechanical Compliance of Suspension (Cms)0.08mm/N
BL Product (BL)5.86T·m
Diaphragm Mass Inc. Airload (Mms)13.11g
Maximum Linear Excursion (Xmax)3.25mm
Surface Area of Cone (Sd)216cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.43" x 9.29"
Baffle Cutout Diameter5.9" x 8.6"
Depth3.85"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3132.3Hz
