PRV Audio 18SW2400 18" Subwoofer 8 Ohm

PRV AudioPart # 294-3420
Model: 18SW2400

With its extended low-end response, great performance is realized in vented boxes as small as 7 cu. ft. This makes it ideal for applications where space is limited but powerful, deep bass is needed.

Key Features

  • High BL motor for impressive control and massive output
  • Over 12.5 mm of Xmax for deep bass reproduction
  • Rigid cast aluminum frame can withstand the use and abuse of pro and car audio
  • 31 mm Height, 4″ voice coil handles 2400 watts Program RMS
Your Price: $279.91
+ FREE SHIPPING
MSRP: $349.89
Save $69.98 (20%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when PRV Audio 18SW2400 18" Subwoofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 18SW2400 18" Subwoofer 8 Ohm

Incorporating a sturdy cast aluminum frame, meticulously designed with slim spokes to curtail reflections directed back at the cone, the structure also integrates strategic force cooling system openings to facilitate optimal airflow for cooling the voice coil.

Driving the voice coil is a substantial ferrite magnet featuring precisely machined top and bottom plates. Further enhancing performance, the coil benefits from an additional dual forced vent within the back plate, contributing to its capability to handle up to 2400 watts RMS seamlessly.

The driver showcases a distinctive paper cone composition, boasting remarkable high-strength pulp, meticulously engineered to ensure optimal linearity across the mid-frequency range. This is complemented by a specialized cone treatment that enhances the dampening properties of the moving assembly, thereby significantly refining the overall smoothness of its frequency response.

The voice coil, meticulously wound around a 4" glass fiber utilizing copper wire, maintains minimal weight for exceptionally rapid transient response. Engineered with a generous 31 mm winding depth, this inside/outside voice coil configuration guarantees robust thermal resilience and mechanical durability.

Product Details

BrandPRV Audio
Model18SW2400
Part Number294-3420
UPC810075522945
Unit of MeasureEach
Weight31.65

Product Specifications

Nominal Diameter18"
Power Handling (RMS)1200 Watts
Power Handling (MAX)2400 Watts
Impedance8Ω
Frequency Response45 to 2,200Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)36.3Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)1.54mH
Mechanical Q (Qms)15.57
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.56
Compliance Equivalent Volume (Vas)6.8ft³
Mechanical Compliance of Suspension (Cms)0.083mm/N
BL Product (BL)22.5T·m
Diaphragm Mass Inc. Airload (Mms)231.2g
Maximum Linear Excursion (Xmax)12.5mm
Surface Area of Cone (Sd)1290cm²

Materials of Construction

Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

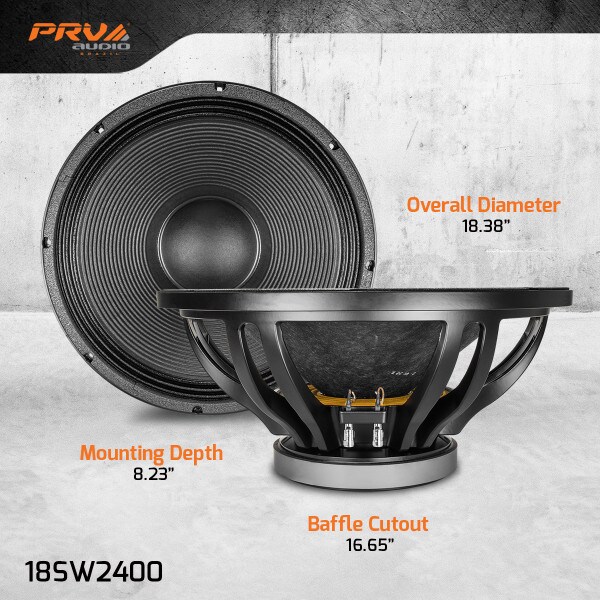

Mounting Information

Overall Outside Diameter18.38"
Baffle Cutout Diameter16.65"
Depth8.23"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume4.48ft³
Sealed F356Hz
Vented Volume13.1ft³
Vented F327.3Hz
