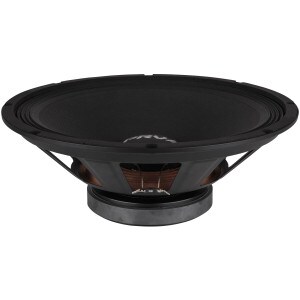

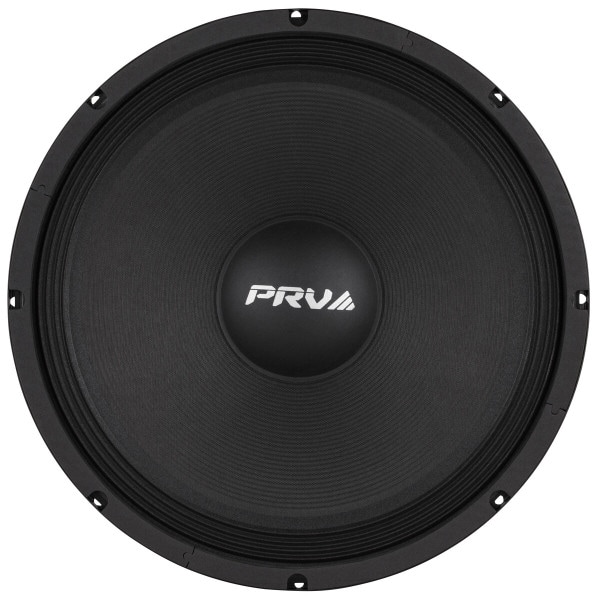

PRV Audio 15W700 15" High Power PA Woofer 8 Ohm

PRV AudioPart # 294-2740
Model: 15W700
Choose the PRV Audio 15W700 15" woofer for replacing old, worn-out, or blown drivers in your PA speaker cabinet. The 15W700 works equally well in ported or sealed cabinets and offers features not normally found in woofers at this price point.

Key Features

  • 3" voice coil on a Kapton® former for 350W of power handling
  • 5.5 mm of Xmax and a low Fs for playing below 40 Hz with authority
  • Ribbed paper cone captures that "classic tone" of high-end speakers
  • Great 95 dB sensitivity
Your Price: $79.91
MSRP: $99.89
Save $19.98 (20%)
Bulk Pricing
8 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 15W700 15" High Power PA Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 15W700 15" High Power PA Woofer 8 Ohm

The PRV Audio 15W700 15" professional audio woofer is designed to be a perfect drop-in replacement for many popular PA speaker cabinets and works equally well in ported or sealed cabinets. A ribbed paper cone is employed to give you the classic tone associated with many high-end speakers.

Moving to the motor, you'll find features not normally associated with other drivers at this price point: a 3" diameter voice coil with a Kapton® former and 5.5 mm of Xmax, high sensitivity, and a fairly low free-air resonance that allows this driver to play down below 40 Hertz. A specially designed resin was been applied to the woven spider for increased longevity, and the cloth accordion surround ensures smooth, accurate sound.

Product Details

BrandPRV Audio
Model15W700
Part Number294-2740
UPC799928733618
Unit of MeasureEach
Weight12.65

Product Specifications

Nominal Diameter15"
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance8Ω
Frequency Response35 to 3,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)31.69Hz
DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)1.33mH
Mechanical Q (Qms)16.27
Electromagnetic Q (Qes)0.65
Total Q (Qts)0.62
Compliance Equivalent Volume (Vas)10.88ft³
Mechanical Compliance of Suspension (Cms)0.252mm/N
BL Product (BL)13.97T·m
Diaphragm Mass Inc. Airload (Mms)99.87g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)935cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15"
Baffle Cutout Diameter14.13"
Depth5.51"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume3ft³
Sealed F351.7Hz
Vented Volume4.25ft³
Vented F343.5Hz
