  • PRV Audio 15W1600 15" High Power PA Woofer 8 Ohm

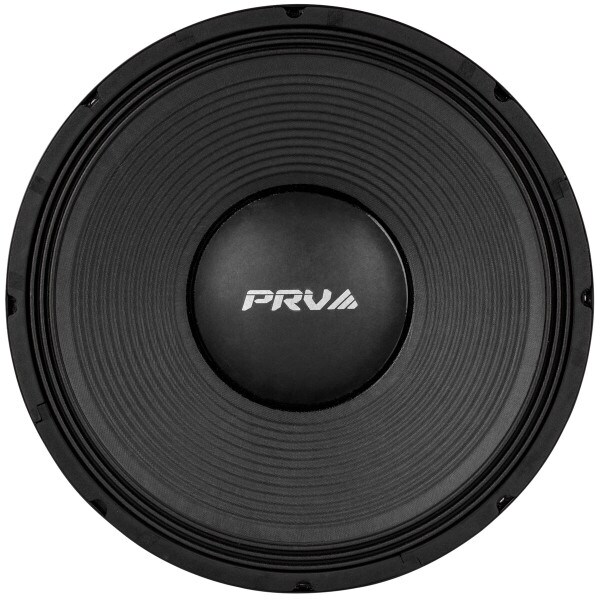

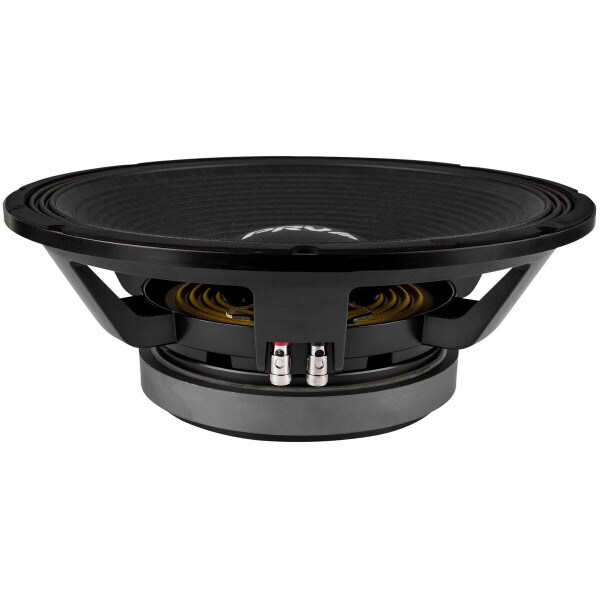

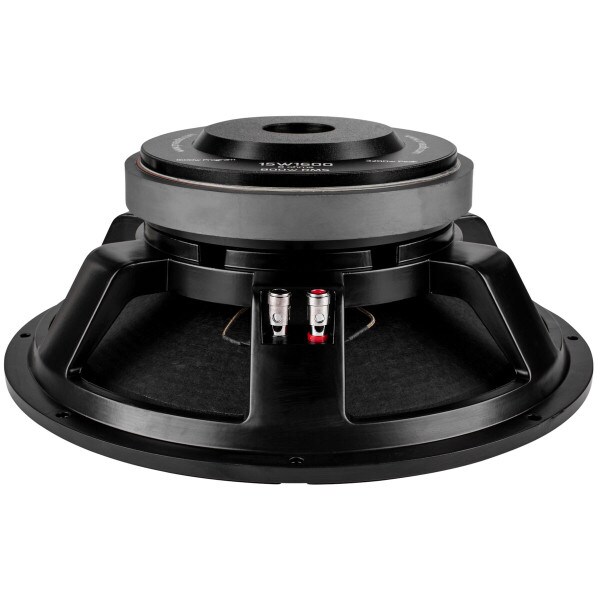

PRV Audio 15W1600 15" High Power PA Woofer 8 Ohm

PRV AudioPart # 294-2742
Model: 15W1600

The PRV Audio 15W1600 is a 15" low-frequency driver built for pro audio and high-powered systems. It’s designed to deliver deep, sustained bass while managing thermal stress through advanced motor ventilation.

Key Features

  • 800 W RMS / 1600 W program power handling
  • 97 dB sensitivity for efficient output with less amplifier strain
  • 4" voice coil wound on Kapton former to endure heat and high excursion
  • Xmax of 7.6 mm for extended linear excursion before distortion
  • Forced-air cooling system to reduce power compression under load
  • Die-cast aluminum frame for structural integrity and heat dissipation
  • Mounting depth 5.51" suits large enclosures without excessive bulk
Your Price: $179.91
+ FREE SHIPPING
MSRP: $224.89
Save $44.98 (20%)
Bulk Pricing
15 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 15W1600 15" High Power PA Woofer 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 15W1600 15" High Power PA Woofer 8 Ohm

PRV Audio 15W1600 15" High Power PA Woofer 8 Ohm

Specifications

  • Nominal Diameter: 15″ (381 mm)
  • Nominal impedance: 8 Ohm
  • Nominal Power Handling: 800 Watts
  • Continuous Program Power (RMS): 1600 Watts
  • Sensitivity 2.83V at 1m: 97 dB
  • Recommended Hi Pass Crossover**: 75 Hz**
    **For Full Power Handling **12db Per Octave Crossover
  • Frequency Response: 55 – 2,500 Hz
  • Voice Coil Diameter: 4″ (100 mm)
  • Voice Coil Wire: Copper
  • Voice Coil Winding Depth: 18.5 mm
  • Former Material: Kapton
  • Magnetic Gap Depth: 9.0 mm
  • Frame Material: Die Cast Aluminum
  • Overall Diameter: 15.27” (388 mm)
  • Front Mount Baffle Cutout: 14.05” (357 mm)
  • Mounting Depth: 5.51” (140 mm)
  • Overall Depth: 5.98” (152 mm)
  • Net Weight: 24.71 lbs. (11.20 kg)

Product Details

BrandPRV Audio
Model15W1600
Part Number294-2742
UPC799928733595
Unit of MeasureEach
Weight27.25

Product Specifications

Nominal Diameter15"
Power Handling (RMS)800 Watts
Power Handling (MAX)1600 Watts
Impedance8Ω
Frequency Response50 to 1,500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)53.6Hz
DC Resistance (Re)5.8Ω
Voice Coil Inductance (Le)1.78mH
Mechanical Q (Qms)13.77
Electromagnetic Q (Qes)0.44
Total Q (Qts)0.42
Compliance Equivalent Volume (Vas)3.25ft³
Mechanical Compliance of Suspension (Cms)0.067mm/N
BL Product (BL)24.13T·m
Diaphragm Mass Inc. Airload (Mms)130.8g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)984cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter15.27"
Baffle Cutout Diameter14"
Depth5.51"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2ft³
Sealed F3101.9Hz
Vented Volume3.88ft³
Vented F349.7Hz
