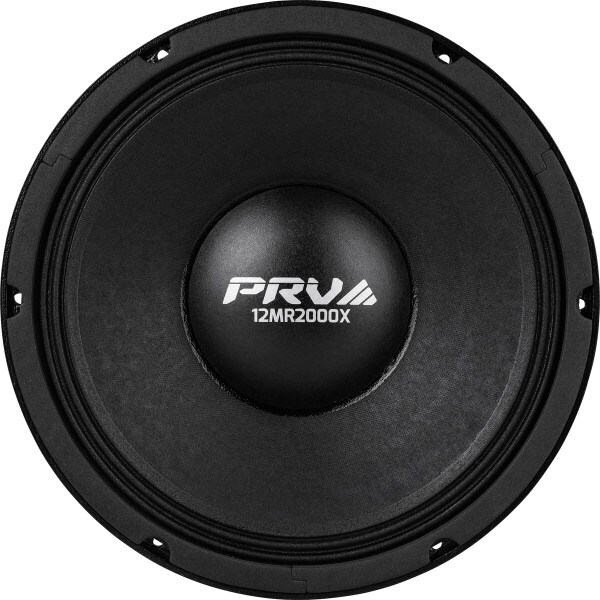

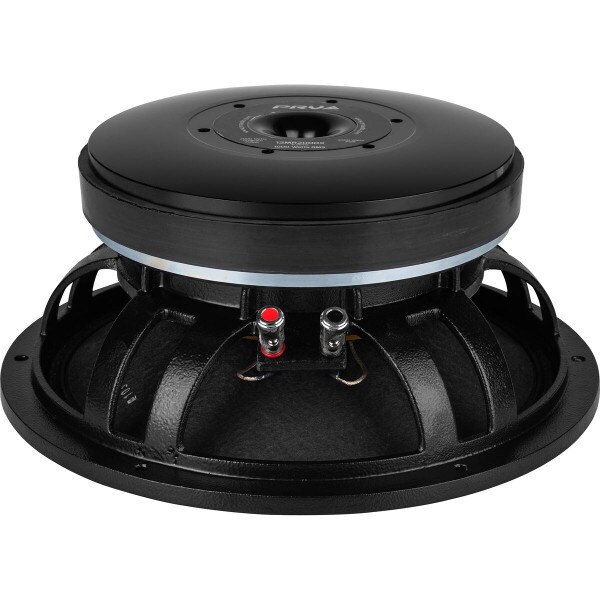

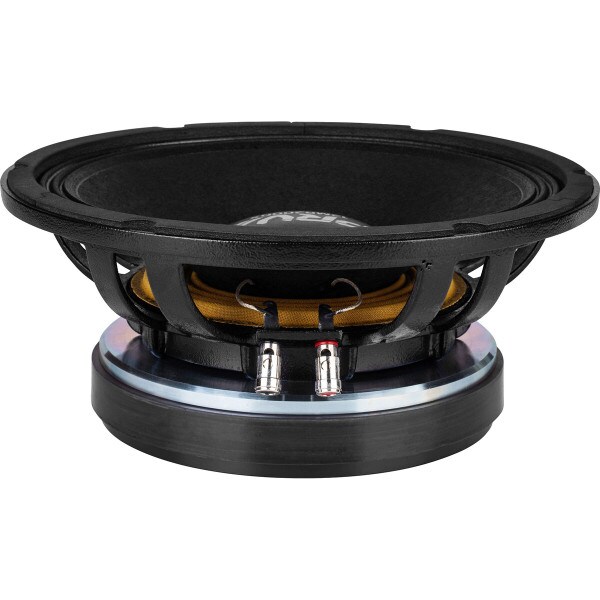

  • PRV Audio 12MR2000X 12" Professional Midrange Driver 8 Ohm

CLEARANCE PRV Audio 12MR2000X 12" Professional Midrange Driver 8 Ohm

2 Questions, 1 Answer or
PRV Audio
Part #294-3049

CLEARANCE PRV Audio 12MR2000X 12" Professional Midrange Driver 8 Ohm

PRV Audio
Part #294-3049
Model: 12MR2000X
2 Questions, 1 Answer or
The PRV Audio 12MR2000X is an outstanding midrange woofer offers extreme midrange performance and durability, this is PRV Audio's most powerful midrange driver. This speaker is great for high-power two or three-way systems and produces excellent vocal support for stage monitors.
Key Features
  • Demodulation ring which reduces flux modulation, minimizing electromagnetic distortion
  • 4" diameter voice coil for extreme 1,000 watts RMS power handling
  • Carefully chosen soft parts for the best combination of efficiency and durability
  • Coated woven surround offers smooth, precise geometry during hard play
60 Day No Hassle Return Policy

Overview

PRV Audio 12MR2000X 12" Professional Midrange Driver 8 Ohm

PRV Audio's most powerful midrange woofer, the 12MR2000X offers outstanding durability. A specially-designed spider suspension is assembled with a proprietary resin and combines with the bumped backplate to improve the resistance against failure during intense use. The reinforced surround offers smooth accurate geometry during hard play, while a large 4" voice coil results in very high efficiency while providing smooth and accurate midbass response.

This carefully designed loudspeaker features a demodulation ring which reduces flux modulation, minimizing electromagnetic distortion and a robust cast aluminum basket designed to minimize unwanted reflections and to reduce acoustic distortion.

A coated woven surround offers smooth, precise geometry during hard play, the 4? copper clad aluminum voice coil is wounded on a high temperature glass fiber former for heat resistance and high efficiency, while providing smooth and accurate response. A low-mass yet stiff cone helps provide clean, detailed, high-impact sound reproduction.

Product Details

BrandPRV Audio
Model12MR2000X
Part Number294-3049
UPC602938022194
Unit of MeasureEach
Weight29.75

Product Specifications

Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response90 to 5,300Hz
Sensitivity100dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)76.9Hz
DC Resistance (Re)4.5Ω
Voice Coil Inductance (Le)0.57mH
Mechanical Q (Qms)10.83
Electromagnetic Q (Qes)0.45
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)0.77ft³
Mechanical Compliance of Suspension (Cms)0.051mm/N
BL Product (BL)19.85T·m
Maximum Linear Excursion (Xmax)8.19mm
Surface Area of Cone (Sd)552cm²

Materials of Construction

Surround MaterialPaper
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.48"
Baffle Cutout Diameter11.20"
Depth5.52"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.246ft³
Sealed F3151.5Hz
Vented Volume0.763ft³
Vented F376.98Hz
