  • PRV Audio 12MB1000FT 12" Forte Series Speaker 8 Ohm

CLEARANCE PRV Audio 12MB1000FT 12" Forte Series Speaker 8 Ohm

PRV AudioPart # 294-3418
Model: 12MB1500FT

PRV Audio's 12MB1000FT midbass emerges as a stellar choice for high-output speaker systems, offering remarkable performance capabilities. As a notable addition to the Forte Series, this midbass encapsulates the essence of enhanced power handling and reduced distortion within mid low mid bass frequencies, making it a prime solution for superior audio experiences.

Key Features

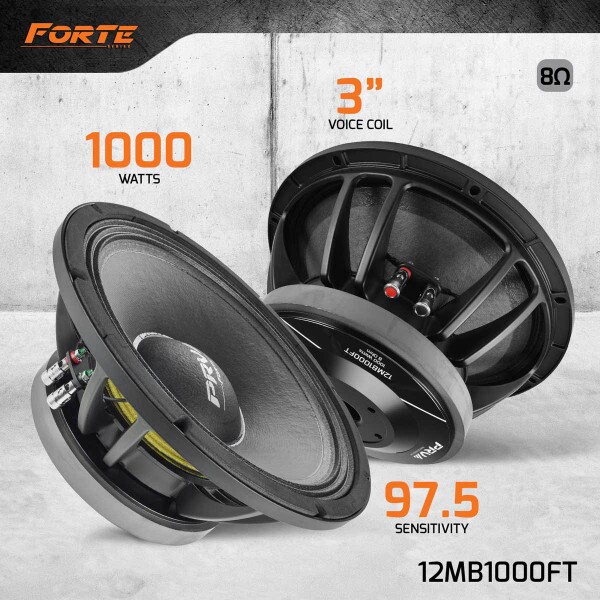

  • 1000 watts continuous program power rating makes the high acoustical output
  • 3″ Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance
  • Rigid cast aluminum frame can withstand the use and abuse of pro and car audio
  • Natural paper cone and double-roll surround for smooth response
  • Ventilated voice coil gap reduces power compression
CLEARANCE $164.91
+ FREE SHIPPING
MSRP: $206.14
Save $41.23 (20%)
Bulk Pricing
6 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 12MB1000FT 12" Forte Series Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 12MB1000FT 12" Forte Series Speaker 8 Ohm

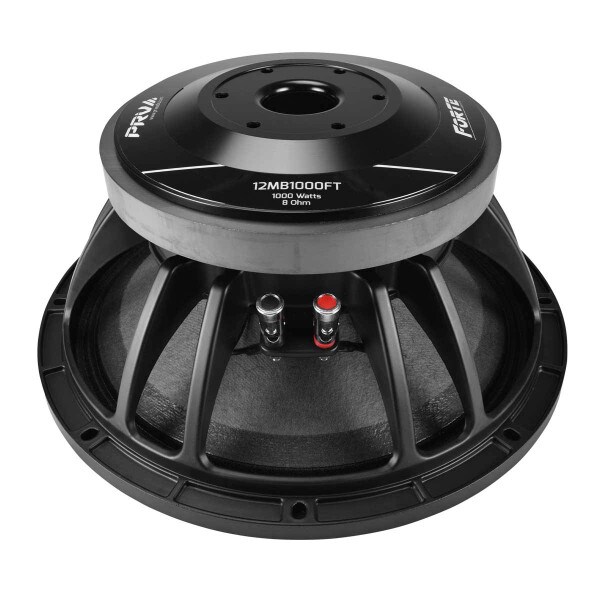

Incorporating a sturdy cast aluminum frame, meticulously designed with slim spokes to curtail reflections directed back at the cone, the structure also integrates strategic force cooling system openings to facilitate optimal airflow for cooling the voice coil.

Driving the voice coil is a substantial ferrite magnet featuring precisely machined top and bottom plates. Further enhancing performance, the coil benefits from an additional dual forced vent within the back plate, contributing to its capability to handle up to 1000 watts RMS seamlessly.

The driver showcases a distinctive paper cone composition, boasting remarkable high-strength pulp, meticulously engineered to ensure optimal linearity across the mid-frequency range. This is complemented by a specialized cone treatment that enhances the dampening properties of the moving assembly, thereby significantly refining the overall smoothness of its frequency response.

The voice coil, meticulously wound around a 3" glass fiber utilizing aluminum wire, maintains minimal weight for exceptionally rapid transient response. Engineered with a generous 17.5 mm winding depth, this inside/outside voice coil configuration guarantees robust thermal resilience and mechanical durability.

Product Details

BrandPRV Audio
Model12MB1500FT
Part Number294-3418
UPC810075522761
Unit of MeasureEach
Weight17.55

Product Specifications

Nominal Diameter12"
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response70 to 3,200Hz
Sensitivity97.5dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)52.72Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)1mH
Mechanical Q (Qms)13.35
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)2.63ft³
Mechanical Compliance of Suspension (Cms)0.162mm/N
BL Product (BL)16.54T·m
Diaphragm Mass Inc. Airload (Mms)55.94g
Maximum Linear Excursion (Xmax)6.87mm
Surface Area of Cone (Sd)573cm²

Materials of Construction

Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

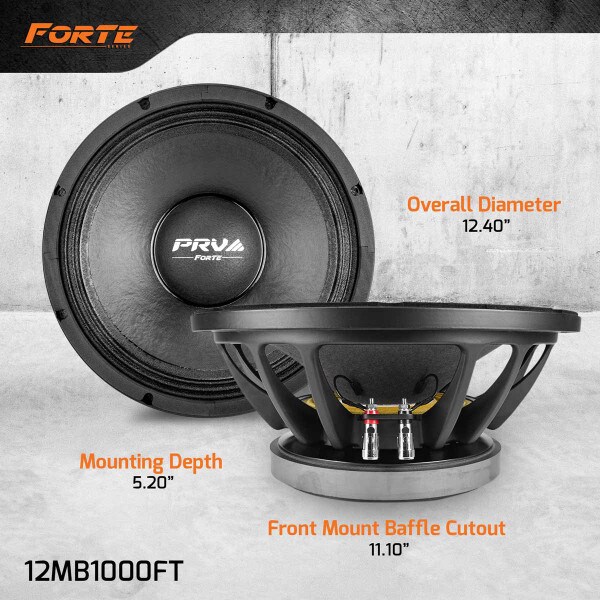

Mounting Information

Overall Outside Diameter12.40"
Baffle Cutout Diameter11.10"
Depth5.2"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume121.4ft³
Sealed F30.562Hz
Vented Volume67.04ft³
Vented F31.542Hz
