  • PRV Audio 10W1000-NDY 10" Neodymium Woofer

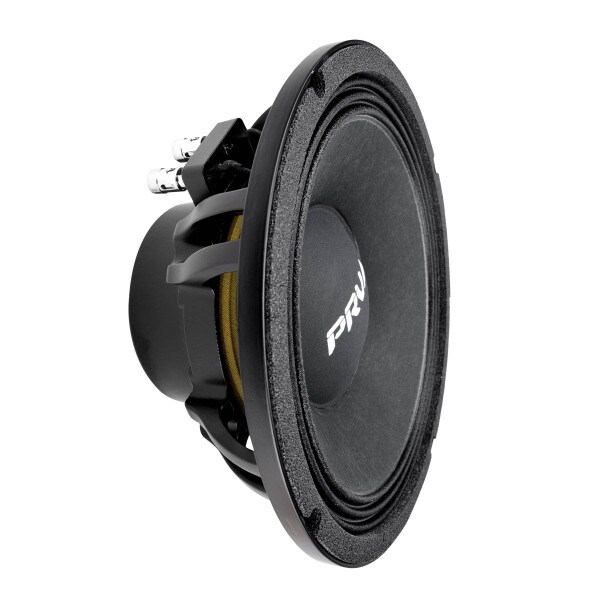

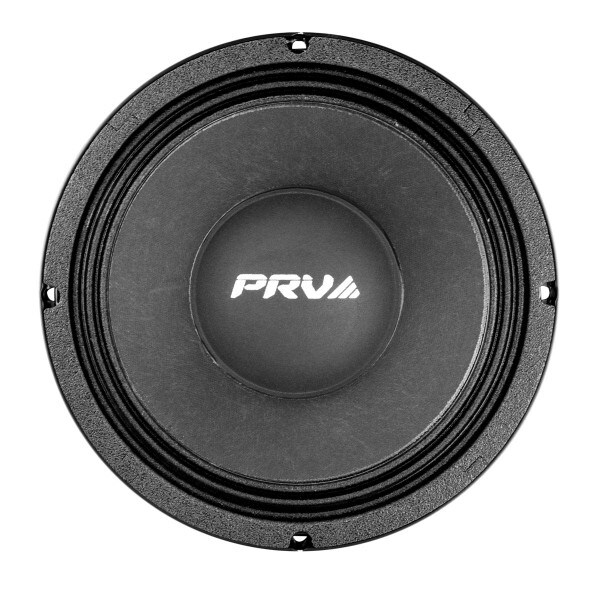

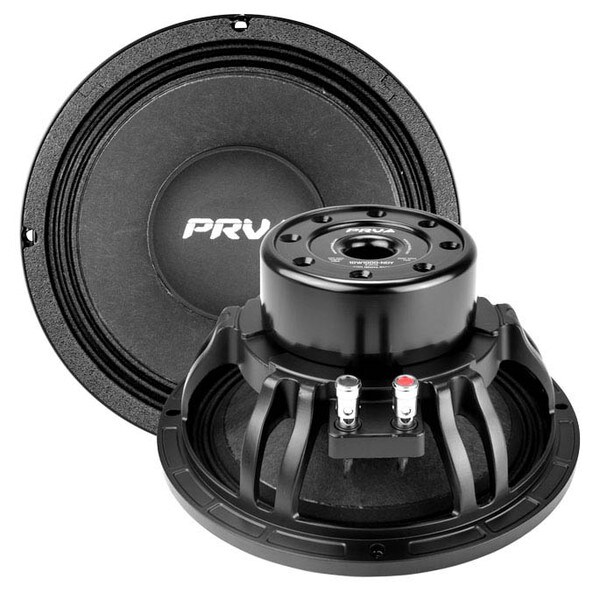

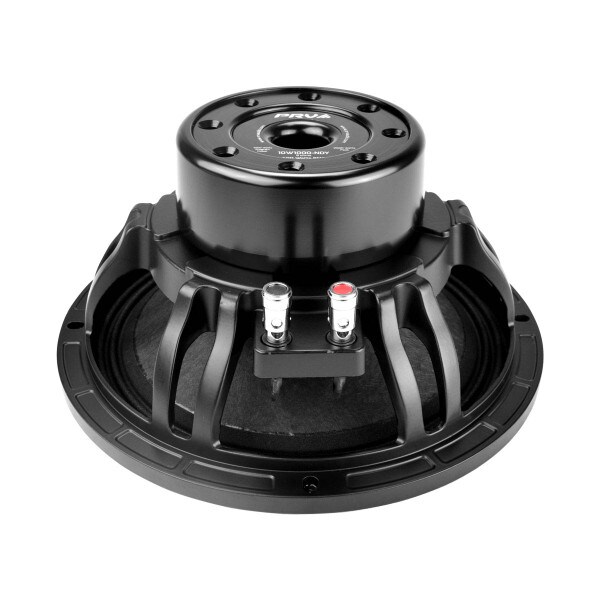

PRV Audio 10W1000-NDY 10" Neodymium Woofer

PRV AudioPart # 294-3414
Model: 10W1000-NDY
Read 1 Review or

Precision-engineered for exceptional sound fidelity and dynamic performance, the PRV 10W1000-NDY Neodymium woofer embodies meticulous craftsmanship aimed at delivering a natural and seamlessly smooth audio experience. Representing the evolution of PRV midbass loudspeakers, the 10W1000-NDY is a testament to the research and development department's unwavering commitment. They have skillfully pushed the boundaries of output for a midbass driver, resulting in a distinctive and unparalleled sound reproduction.

Key Features

  • 1000 watts continuous program power rating makes the high acoustical output
  • 3″ Inside/Out copper clad aluminum wire on glass fiber former for hi-temp performance
  • Rigid cast aluminum frame can withstand the use and abuse of pro and car audio
  • Natural paper cone and double-roll surround for smooth response
  • 36 mm peak-to-peak excursion before damage
Your Price: $249.91
+ FREE SHIPPING
MSRP: $312.39
Save $62.48 (20%)
Bulk Pricing
8 In Stock
Get Notified When Available

We'll send you an email when PRV Audio 10W1000-NDY 10" Neodymium Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 10W1000-NDY 10" Neodymium Woofer

The PRV 10W1000-NDY stands as a testament to its proficiency. For resilience in the rigors of the professional sound realm, a 3" CCAW voice coil is meticulously designed, wound inside-outside on a fiberglass former. Boasting a generous 18 mm winding length, this configuration ensures extended Xmax and diminished distortion, enhancing performance (with a recommended 80 Hz, 12 dB/octave high pass filter in place).

To attain exceptional fidelity, the specialized composite cone is meticulously constructed using non-pressed paper, meticulously engineered to minimize break-up tendencies. This design results in a smooth frequency response and a reduced moving mass, culminating in heightened speaker efficiency.

Its potent neodymium motor, optimized for power and performance, is ingeniously vented to ensure effective cooling. The substantial 3" voice coil contributes to its exceptional 1,000-watt power handling, with a robust cooling system seamlessly integrated into the motor.

With a remarkable sensitivity rating of 98 dB 1W/1M, this woofer is poised to generate an impressive level of output, reaffirming its prowess in sound reproduction.

Product Details

BrandPRV Audio
Model10W1000-NDY
Part Number294-3414
UPC602938022576
Unit of MeasureEach
Weight10

Product Specifications

Nominal Diameter10"
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response55 to 5,500Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)62.12Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.64mH
Mechanical Q (Qms)11.57
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)1.377ft³
Mechanical Compliance of Suspension (Cms)0.193mm/N
BL Product (BL)12.73T·m
Diaphragm Mass Inc. Airload (Mms)33.93g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)380cm²

Materials of Construction

Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter10.27"
Baffle Cutout Diameter9.05"
Depth4.49"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume130.4ft³
Sealed F30.371Hz
Vented Volume68.54ft³
Vented F31.101Hz
