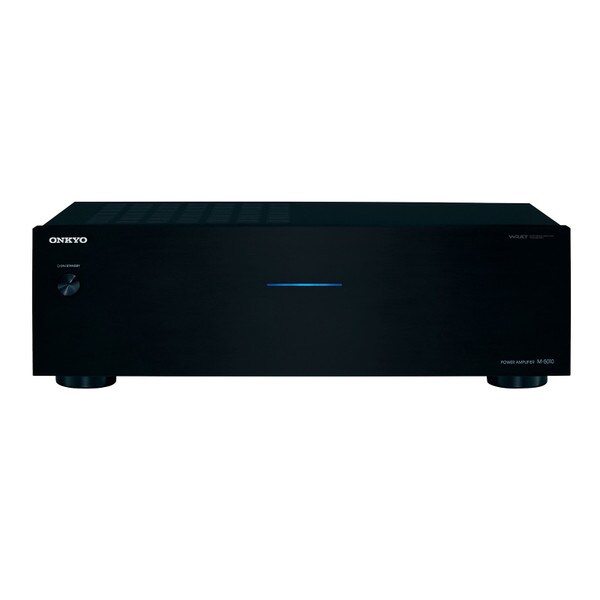

NEW Onkyo M-5010 2-Channel Amplifier

OnkyoPart # 252-558
Model: M-5010

The Onkyo M‑5010 is a two-channel power amplifier that expands both your home theater's multi-room setup and enables 11-channel surround performance on select Onkyo A/V receivers. It combines high-current analog amplification with flexible control options for a clean, powerful audio experience.

Key Features

  • WRAT technology with three-stage inverted Darlington design for wide bandwidth and low distortion
  • Rigid, anti-resonant metal chassis maintains sonic purity by resisting vibration
  • Steady power delivery via heavy-duty transformer and large capacitors for accurate dynamic response
  • Selectable audio or 12 V trigger, plus level adjustment for integration with home theater automation

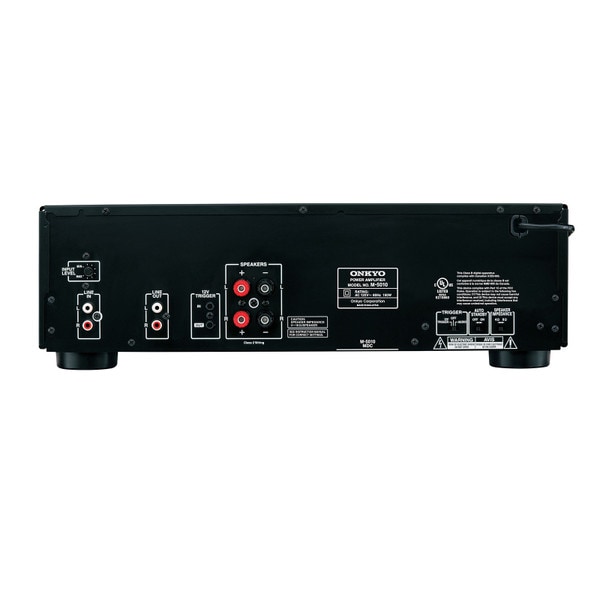

  • Rear-level control and daisy-chain inputs support bi-amping and multi-zone audio expansion
NEW $549.99
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Onkyo M-5010 2-Channel Amplifier is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Onkyo M-5010 2-Channel Amplifier

Onkyo M-5010 2-Channel Amplifier

This two-channel power amplifier incorporates Onkyo’s acclaimed Wide Range Amplifier Technology (WRAT) with three-stage inverted Darlington circuitry, making it ideal for capturing the quick dynamics of movie soundtracks while maintaining the sensitivity needed for detailed musical playback. This amplifier features a low negative feedback design that minimizes noise, extends frequency response, and maximizes efficiency. Its heavy-duty build includes a thick anti-resonant metal chassis for superior vibration resistance, while the pure all-analog circuitry delivers exceptionally clear sound. A high-output power supply ensures clean, stable signal reproduction, and flexible setup options include selectable audio inputs, 12-volt triggers, and rear level adjustments. For straightforward integration, banana plug-compatible speaker terminals are also included.

Specifications

  • Power Output: 75 W/Ch (8 Ohms, 1 kHz, 0.08%, 2 Channels Driven, FTC)
  • THD (Total Harmonic Distortion): 0.08% (Rated Power)
  • Damping Factor: 60 (Front, 1 kHz, 8 Ohms)
  • Input Sensitivity and Impedance: 870 mV/20 k-Ohms (Unbalanced)
  • Rated RCA Output Level and Impedance: 0.87 V/270 Ohms (Line Out)
  • Frequency Response: 10 Hz–100 kHz/+0 dB, -3 dB
  • Signal-to-Noise Ratio: 110 dB (Line, IHF-A)
  • Speaker Impedance: 4 Ohms–16 Ohms

  • Power Supply: AC 120 V~, 60 Hz
  • Power Consumption: 160 W
  • No-Sound Power Consumption: 45 W
  • Standby Power Consumption: 0.4 W
  • Dimensions (W x H x D): 17 1/8˝ x 5 1/2˝ x 12 1/4˝ (435 x 139 x 311 mm)
  • Weight: 17.6 lbs. (8.0 kg)

Product Details

BrandOnkyo
ModelM-5010
Part Number252-558
UPC751398010897
Unit of MeasureEach
Weight3
