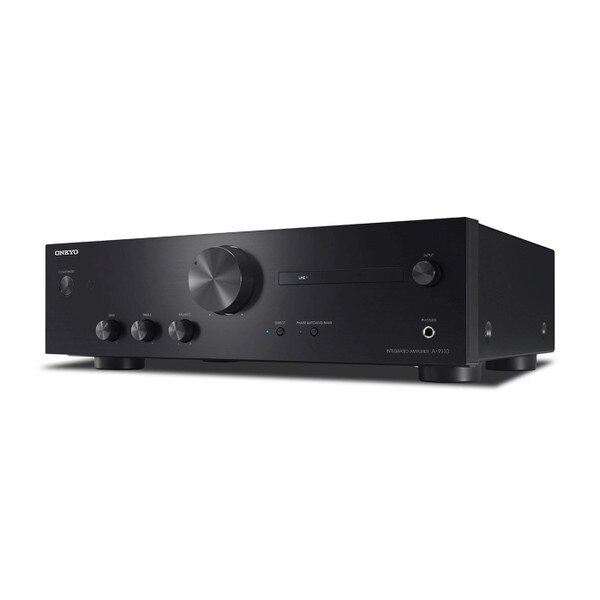

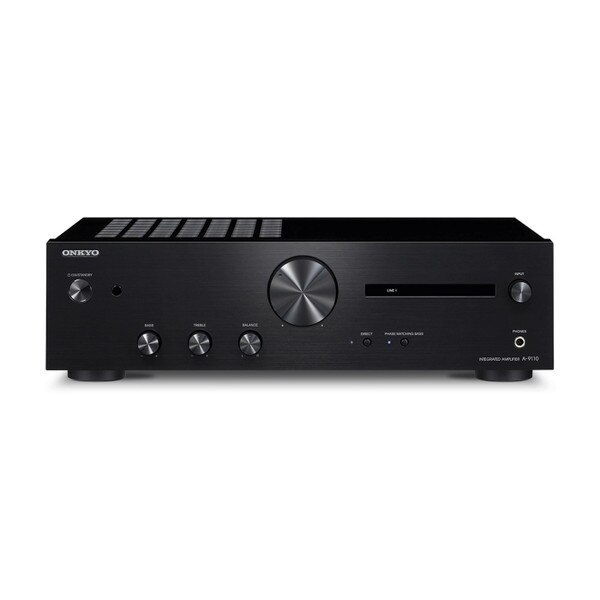

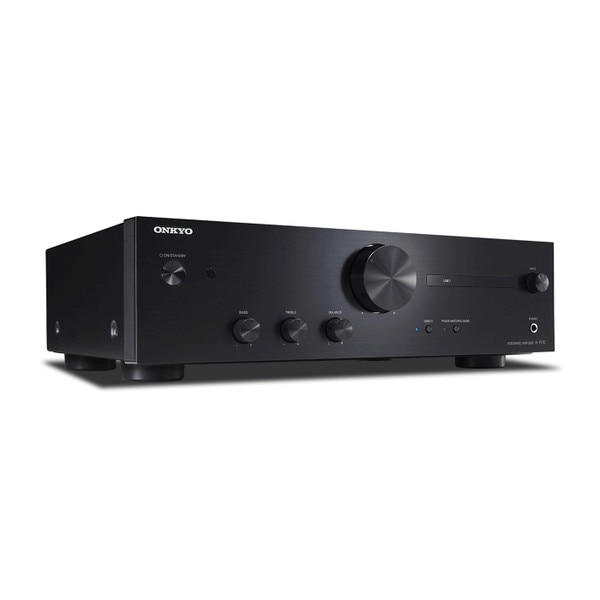

NEW Onkyo A-9110 Integrated Stereo Amplifier

OnkyoPart # 252-517
Model: A-9110

The Onkyo A‑9110 Integrated Stereo Amplifier is a listener-focused, high-current analog amplifier designed to deliver dynamic, musical sound with refined detail and expressive warmth. It combines solid phono playback, analog flexibility, and thoughtful design to offer a compelling hi-fi experience.

Key Features

  • WRAT (Wide Range Amplifier Technology) delivers high-current stability for accurate, dynamic sound reproduction
  • Optimum Gain Volume enhances clarity at low levels by keeping signals well above the noise floor
  • Phase Matching Bass Boost delivers fuller bass at low volumes without compromising voice clarity
  • MM phono stage with discrete op-amp preserves vinyl’s depth and authenticity
  • Five analog RCA inputs extend easy connectivity from turntables, CD players, and more
  • Rigid, thick chassis minimizes resonance and enhances sound purity
  • Stylish, refined analog experience with analog-focused features and speaker-grade posts
NEW $374.99
+ FREE SHIPPING
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Onkyo A-9110 Integrated Stereo Amplifier is back in stock or available for preorder.

Estimated back in stock 11/28/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Onkyo A-9110 Integrated Stereo Amplifier

Onkyo A-9110 Integrated Stereo Amplifier

Onkyo expands on the success of the A-9010 pre-main amplifier with the introduction of the A-9110 Integrated Stereo Amplifier, refining a design that earned strong acclaim for its dynamic, musical performance. Its warm, expressive tuning delivers lively dynamics, deep bass, and layered detail. WRAT technology provides high-current power stability through large custom capacitors, while low-NFB amps preserve the depth and spatial quality of analog and high-resolution recordings. Five RCA inputs, including an MM phono stage, accommodate a variety of sources, while robust speaker terminals highlight Onkyo’s hi-fi heritage and dedication to quality craftsmanship.

Stable high-current power with wide-range amplifiers

Dynamic shifts in music cause impedance to vary, and if power delivery fails when impedance drops, sound quality suffers. Onkyo addresses this with WRAT, which incorporates a high-output EI transformer, large custom audio capacitors, and carefully chosen high-grade components. This stability in current allows precise control of speaker drivers for accurate reproduction of dynamic passages. Additionally, the A-9110 employs Onkyo's proven low-negative-feedback amplifier design, emphasizing the warmth, fullness, and vibrancy of recordings. The circuitry captures an extended frequency range with exceptionally low distortion.

Clearer sound at low volumes

At low listening levels, signals often approach the noise floor of the component, which introduces noise and results in muddled audio. The A-9110 counters this with Optimum Gain Volume Circuitry, a volume design requiring less than half the usual attenuation. By keeping the signal well above the noise floor, music remains clear and detailed even at low volumes.

Phase Matching Bass Boost for low-level listening

Standard loudness controls on many amplifiers enhance low-mid frequencies but often introduce phase shift, diminishing vocal clarity. Onkyo’s Phase Matching Bass Boost avoids this by eliminating phase shift between low and mid frequencies above 300 Hz. This results in stronger bass presence without compromising vocal definition, particularly beneficial when playing music softly where bass and highs are harder to hear.

Thick and rigid chassis reduces resonance

All hi-fi components generate electromechanical resonance, which manifests as signal noise and affects audio quality. To counter this, the A-9110 is built with a rigid metal chassis that is 1.3 times thicker than that of the A-9010 at 1/16" (1.6 mm). Alongside large, wide-spaced insulators, this design effectively suppresses unwanted resonance, ensuring cleaner and more stable sound output.

Specifications

Amplifier

  • Power Output: 30W/ch (8ohms, 20Hz~20kHz, 0.7% THD, 2ch driven, FTC)
  • Total Harmonic Distortion + Noise: 0.05% (8 ohms, 1 kHz, half power)
  • Damping Factor: 95 (1 kHz, 8 ohms)
  • Line: 200 mV/47 k-ohms
  • Phono MM: 4 mV/47 k-ohms
  • Line out: 0.2 V/2.3 k-ohms
  • Phono Overload: 70 mV (MM, 1 kHz, 0.5%)
  • Frequency Response: 10 Hz-100 kHz/+1 dB, -3 dB (Direct Mode)
  • Bass: ±10 dB, 100 Hz
  • Treble: ±10 dB, 10 kHz
  • Signal-to-Noise Ratio: 103 dB (IHF-A, Line In, Speaker Out) 78 dB (IHF-A, Phono In, Speaker Out)
  • Speaker Impedance: 4 ohms–16 ohms

General

  • Power Supply: AC 120 V, 60 Hz
  • Power Consumption: 140 W
  • Standby Power Consumption: 0.1 W
  • Dimensions (W x H x D): 17 1/8" x 5 1/16" x 13 (435 x 129 x 330 mm)
  • Weight: 15.4 lbs. (7.0 kg)

Product Details

BrandOnkyo
ModelA-9110
Part Number252-517
UPC889951001393
Unit of MeasureEach
Weight19.25
