BUYOUT O-14 3-1/2" Paper Cone Full-Range Speaker 8 Ohms

Factory Buyouts
Part #299-4298

BUYOUT O-14 3-1/2" Paper Cone Full-Range Speaker 8 Ohms

Factory Buyouts
Part #299-4298
Model: O-14

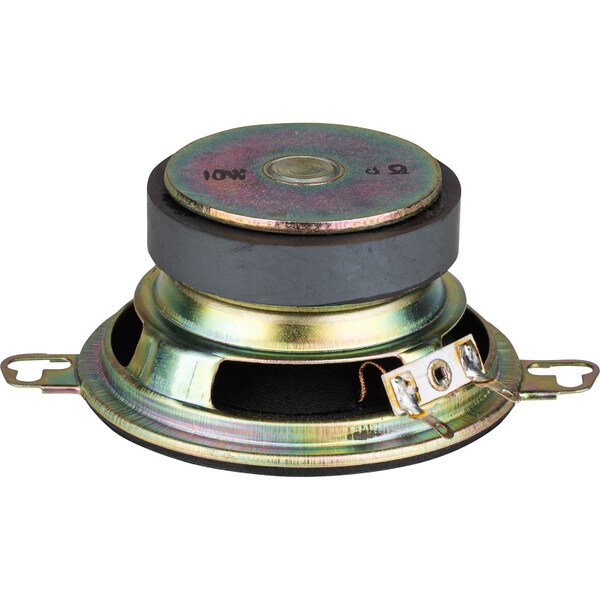

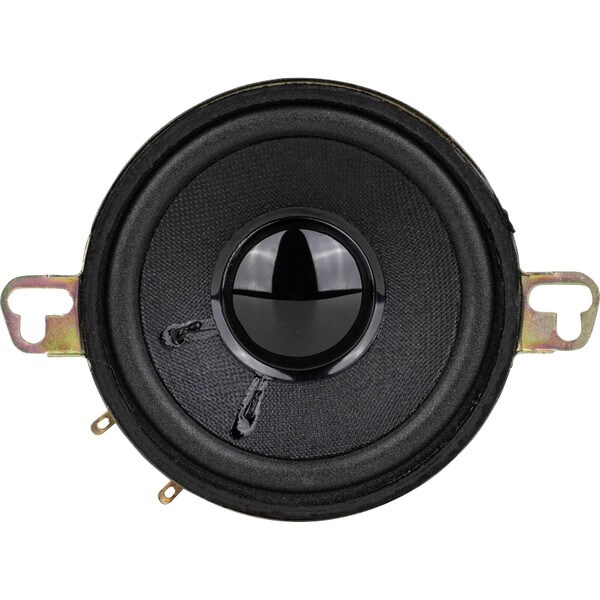

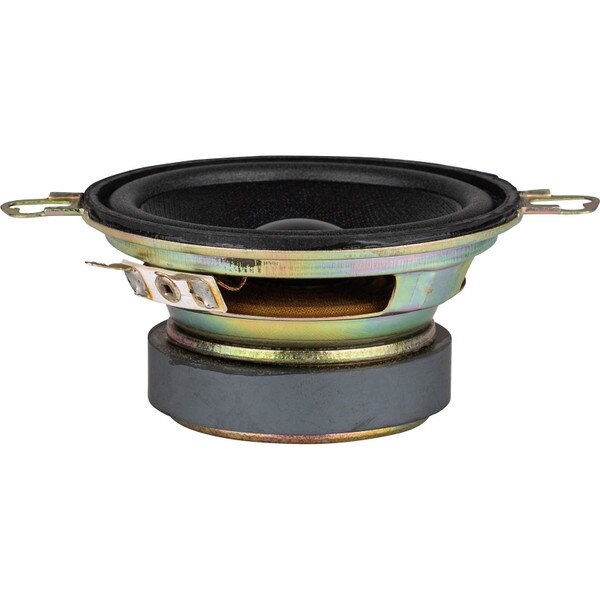

The O-14 3-1/2" paper cone full-range driver uses a paper cone and cloth surround for smooth and natural response along with reliable performance. The common size and 2-hole mounting flange make this a popular replacement driver for many TV's and portable speakers.
Key Features
  • Damped paper cone for smooth, controlled response on and off axis
  • Durable cloth surround ensures reliable performance
  • Common size replacement driver for many TV's and portable speakers
  • Mylar dust cap improves high frequency response
BUYOUT $2.88
Bulk Pricing
Quantity:Qty: 1-29 $2.88/ea
Quantity:Qty: 30-59 $2.56/ea
Quantity:Qty: 60+$2.45/ea
Order in the next 0 hr 54 min to ship today. Details

3916In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

O-14 3-1/2" Paper Cone Full-Range Speaker 8 Ohms

The O-14 3-1/2" paper cone full-range driver uses a paper cone and cloth surround for clean, natural audio reproduction. The low-profile mounting flange and 8 ohm impedance make this a great contender for use in line arrays. Also, a stylish mylar dustcap helps increase high frequency response.

Product Details

BrandFactory Buyouts
ModelO-14
Part Number299-4298
UPC848864073941
Unit of MeasureEach
Weight0.7

Product Specifications

Nominal Diameter3-1/2"
Bolt Circle Diameter4.125
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8Ω
Frequency Response100 to 12,000Hz
Sensitivity84.3dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)138Hz
DC Resistance (Re)7.2Ω
Voice Coil Inductance (Le)0.27mH
Mechanical Q (Qms)5.56
Electromagnetic Q (Qes)1.98
Total Q (Qts)1.46
Compliance Equivalent Volume (Vas)0.041ft³
Mechanical Compliance of Suspension (Cms)0.097mm/N
BL Product (BL)2.75T·m
Diaphragm Mass Inc. Airload (Mms)2.4g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)38.4cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.5"
Baffle Cutout Diameter3.125"
Depth1.75"
# Mounting Holes2

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.55ft³
Sealed F3127Hz
Vented Volume0.056ft³
Vented F3114Hz
