  • Datsun ZB-551R/B7340-B5010 4-1/2" Paper Cone Replacement Speaker 4 ohm

BUYOUT Datsun ZB-551R/B7340-B5010 4-1/2" Paper Cone Replacement Speaker 4 ohm

AC InfinityPart # 299-210
Model: ZB-551R/B7340-B5010
Read 1 Review or

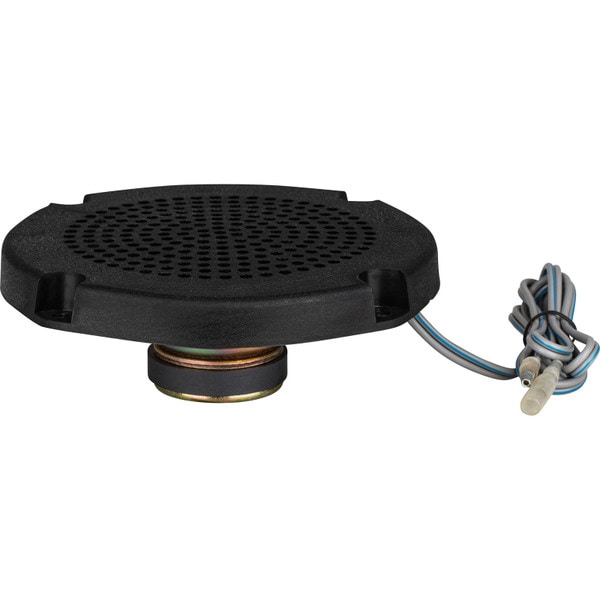

The Datsun ZB-551R/B7340-B5010 4-1/2" Paper Cone Replacement Speaker uses a ribbed paper cone for natural audio reproduction. The included plastic grill adds protection from curious fingers.

Key Features

  • Ribbed paper cone for natural audio reproduction
  • 4 ohm impedance

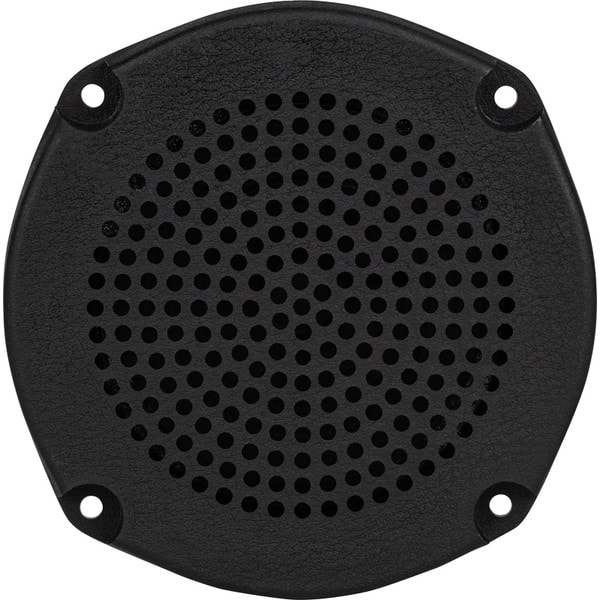

  • Perforated plastic grill for protection
  • 5/8” copper voice coil
  • 36” pre-installed wire leads
BUYOUT $4.88
Bulk Pricing
Quantity:Qty: 1-59 $4.88/ea
Quantity:Qty: 60-119 $4.34/ea
Quantity:Qty: 120+ $4.15/ea
1406 In Stock
Get Notified When Available

We'll send you an email when Datsun ZB-551R/B7340-B5010 4-1/2" Paper Cone Replacement Speaker 4 ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Datsun ZB-551R/B7340-B5010 4-1/2" Paper Cone Replacement Speaker 4 ohm

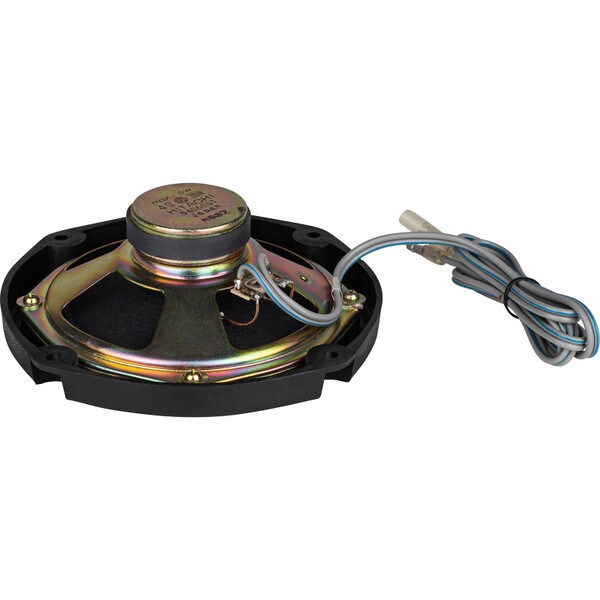

The Datsun ZB-551R/B7340-B5010 4-1/2" Paper Cone Replacement Speaker is a great choice as a replacement or addition in a vintage car audio application. The plastic grill adds protection from curious fingers and is easily removed if not required. It’s small size and full range ability make it a great choice for a cost effective speaker in a custom array system.NOS new old stock. The driver was manufactured by Hitachi part number 5406051. Made in Japan. Comes with mounting screws. 4 Ohm 6 Watt max.

Product Details

ModelZB-551R/B7340-B5010
Part Number299-210
UPC656403848659
Unit of MeasureEach
Weight1.08

Product Specifications

Nominal Diameter4-1/2"
Bolt Circle Diameter4.75
Power Handling (RMS)3.5 Watts
Power Handling (MAX)7 Watts
Impedance4Ω
Frequency Response150-6,000Hz
Sensitivity87.61dB 2.83V/1m
Voice Coil Diameter0.625"

Thiele-Small Parameters

Resonant Frequency (Fs)120.6Hz
DC Resistance (Re)4.001Ω
Voice Coil Inductance (Le)0.1241mH
Mechanical Q (Qms)6.128
Electromagnetic Q (Qes)2.528
Total Q (Qts)1.79
Compliance Equivalent Volume (Vas)0.189ft³
Diaphragm Mass Inc. Airload (Mms)2.48g
Maximum Linear Excursion (Xmax)1.75mm
Surface Area of Cone (Sd)73.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5-9/16"
Baffle Cutout Diameter4-3/16"
Depth1.5"
# Mounting Holes4
