  • Neutrik NYS-SPP-L1-USA 1/4" TRS Programmable Patchbay

CLEARANCE Neutrik NYS-SPP-L1-USA 1/4" TRS Programmable Patchbay

NeutrikPart # 245-140
Model: NYS-SPP-L
Neutrik offers the fourth generation 1/4" patch panel, the PatchLink SPL. This latest version offers a metal entryway at the nose of each jack for increased wearability and reliability.

Key Features

  • 24/48 channel 1/4" TRS patchbay

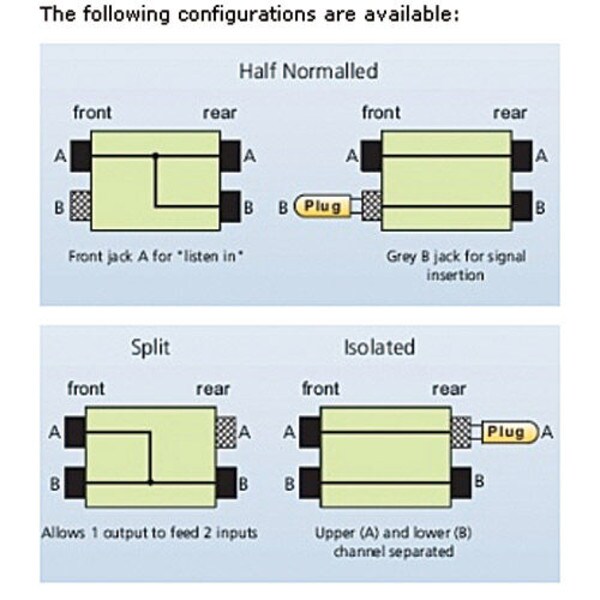

  • Each channel is programmable for normalled, half-normalled, or isolated operation
  • Rugged construction for years of reliable service
Get Notified When Available

We'll send you an email when Neutrik NYS-SPP-L1-USA 1/4" TRS Programmable Patchbay is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

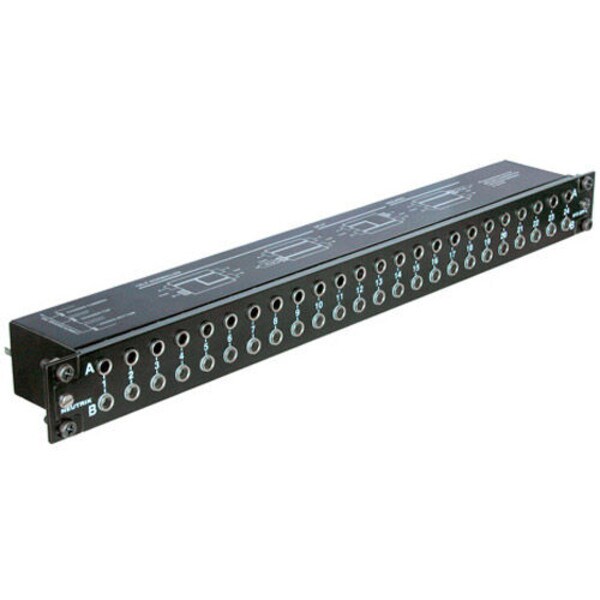

Neutrik NYS-SPP-L1-USA 1/4" TRS Programmable Patchbay

"The easy way to link your audio systems." Held into rack by 4 screws (included), the removable front panel has 2 separate screws to make changing configurations fast and easy.  Each card is fully PCB wired with 4 jacks - each with non-tarnishing contacts.  No soldering required to program - just flip the PC card and insert your standard 1/4" plugs. All PCBs are securely held in place without the use of a nut - no little pieces to drop, lose or break! In addition, the PatchLink SPL is exceptionally versatile and easy to use. Configurations are screen printed on top of each unit and include normalled, half-normalled or isolated operation. The normalled jack is colored gray for easy identification. Black coated steel housing.

Specifications: • Dimensions: 19" W x 1.73" H (1U) x 2.4" D • Mfg. #NYS-SPP-L.

"The easy way to link your audio systems."

  • 48 balanced channels (24 pairs - front and rear) in one 19" rack mount space
  • 4 identification strips included
  • Optional 1/4" patch box available with 8 send/return (split print) modules (Neutrik #NYS-SSR8, our part #245-145)



    Product Details

    BrandNeutrik
    ModelNYS-SPP-L
    Part Number245-140
    UPC844632059964
    Unit of MeasureEach
    Weight3.5
