Neutrik NLT8XX-BAG speakON STX 8 Pole Female Cable Connector Black-Chrome Metal Housing

Name: Neutrik NLT8XX-BAG speakON STX 8 Pole Female Cable Connector Black-Chrome Metal Housing
Brand: Neutrik
SKU: 092-345
Price: 28.36 USD
Availability: InStock
Rating: 5 (2 reviews)

Read 2 Reviews | 2 Questions, 4 Answers or

Neutrik

Part #092-345

Neutrik NLT8XX-BAG speakON STX 8 Pole Female Cable Connector Black-Chrome Metal Housing

Neutrik

Part #092-345

Model: NLT8FXX-BAG

Read 2 Reviews | 2 Questions, 4 Answers or

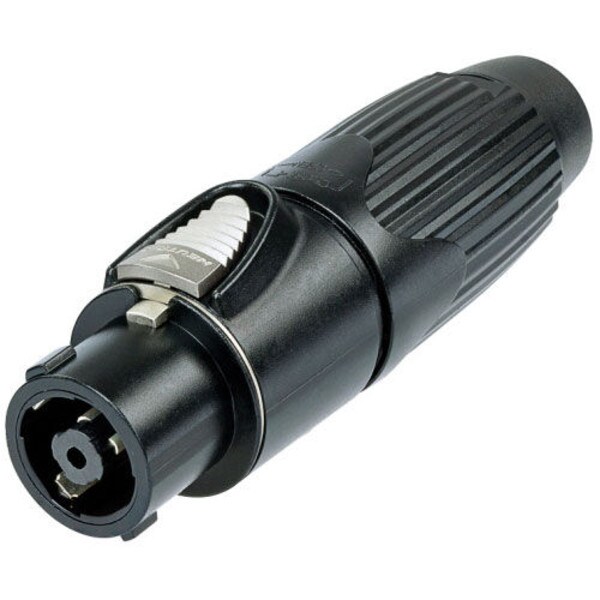

Neutrik's NLT8XX-BAG is an 8 pole female speakON cable connector, with black-chrome housing, and a chuck type strain relief.

Key Features

Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
Robust and durable all metal housing
Reinforced metal quick lock system for ease and precise locking
Extra large solder contacts for up to 6 mm (AWG10) wires
Mate with all available speakON products

See all items in speakON / HPC Speaker Connectors

Your Price: $28.36

MSRP: $37.99

Bulk Pricing

Quantity:Qty: 1-99	$28.36/ea
Quantity:Qty: 100-249	$26.47/ea
Quantity:Qty: 250+	$25.45/ea

Ships next business day. Details

29In Stock

Get Notified When Available

We'll send you an email when Neutrik NLT8XX-BAG speakON STX 8 Pole Female Cable Connector Black-Chrome Metal Housing is back in stock or available for preorder.

Qty Quantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Product Details

Brand

Neutrik

Model

NLT8FXX-BAG

Part Number

092-345

Unit of Measure

Each

Weight

0.3

Product Specifications

Circuit

8-Pole

Gender

Female

Mounting Type

Cable Mount

Product
Connector Type	speakON
Gender	Female
Electrical
Contact resistance	<2 mΩ (after lifetime)
Dielectric strength	4 kVdc (peak)
Insulation resistance	>10 GΩ (after dampheat)
Rated current per contact	40A RMS continuous
Rated current per contact	50A audiosignal, duty cycle 50%
Rated voltage	250V (Insulation)
Attention	speakON is NOT to be used as an AC mains connector!
Mechanical
Cable O.D.	8-20 mm
Cable retention force	≥220 N (subject to cable O.D. and material)
Lifetime	>5,000 mating cycles
Wire size	6 mm²
Wire size	10 AWG
Wiring	Solder contacts
Locking device	Quick lock (latch)
Material
Bushing	Polyamide (PA 6 15% GR)
Contact plating	4 µm Ag
Contacts	Brass (CuZn39Pb3)
Insert	Polyamide (PA 6 30 % GR)
Locking element	Zinc diecast (ZnAl4Cu1)
Shell	Zinc diecast (ZnAl4Cu1)
Strain relief	Polyacetal (POM)
Environmental
Flammability	UL 94 HB
Protection class	IP 52 (mated condition)
Solderability	Complies with IEC 68-2-20
Temperature range	-30°C to +80°C
