Neutrik NLT4MP-BAG speakON STX 4 Pole Male Chassis Connector Black-Chrome Metal Housing

NeutrikPart # 092-340
Model: NLT4MPXX-BAG

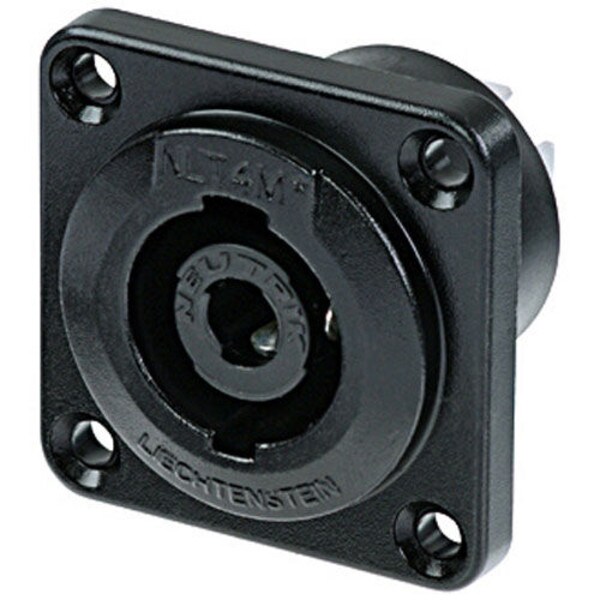

Neutrik's NLT4MP-BAG is a 4 pole male speakON chassis connector, with black-chrome metal housing, and 1/4" flat tabs for quick disconnects or solder.

Key Features

  • Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating
  • Reinforced metal quick lock system for ease and precise locking
  • Mate with all available speakON products
  • Silver plated contacts for long lasting connectivity
Your Price: $8.84
MSRP: $11.99
Save $3.15 (26%)
Bulk Pricing
Quantity:Qty: 1-99 $8.84/ea
Quantity:Qty: 100-249 $8.37/ea
Quantity:Qty: 250+ $8.05/ea
117 In Stock
Get Notified When Available

We'll send you an email when Neutrik NLT4MP-BAG speakON STX 4 Pole Male Chassis Connector Black-Chrome Metal Housing is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NLT4MP-BAG speakON STX 4 Pole Male Chassis Connector Black-Chrome Metal Housing

The new STX Series is the next generation of 4 pole speakON connectors especially designed for amplifier-loudspeaker applications in harsh and demanding environments such as professional touring. The extremely rugged and durable STX Series feature an all metal housing and a built-in gasket providing weatherproof protection to IP54. The 4 pole version is now available as 4 gender system including male cable and female chassis connector.

Product
Connector TypespeakON
GenderMale
Electrical
Contact resistance<2 mΩ (after lifetime)
Dielectric strength4 kVdc (peak)
Insulation resistance>10 GΩ (after dampheat)
Rated current per contact40A RMS continuous
Rated current per contact50A audiosignal, duty cycle 50%
Rated voltage250V (Insulation)
AttentionspeakON is NOT to be used as an AC mains connector!
Mechanical
Lifetime>5,000 mating cycles
WiringFlat tabs for 1/4" (FASTON 6.3 x 0.8 mm) or soldering
Locking deviceQuick lock
Mounting directionFront and rear
Chassis shapeSquare G-size flange
LayoutFour thru holes
Material
Contact plating4 µm Ag
ContactsSpring copper (CuSn0.2)
InsertPolyamide (PA 6 30% GR)
ShellZinc diecast (ZnAl4Cu1) Ni
Environmental
ApprovalsUL, cUL
FlammabilityUL 94 HB
Protection classIP 54 (mated condition)
SolderabilityComplies with IEC 68-2-20
Temperature range-30°C to +80°C

Product Details

BrandNeutrik
ModelNLT4MPXX-BAG
Part Number092-340
UPC844632095733
Unit of MeasureEach
Weight0.11

Product Specifications

Circuit4-Pole
GenderMale
Mounting TypeChassis / Panel Mount
