  • Neutrik NL2FX speakON Connector 2 Pole Cable Mount

CLEARANCE Neutrik NL2FX speakON Connector 2 Pole Cable Mount

Neutrik
Part #092-198

CLEARANCE Neutrik NL2FX speakON Connector 2 Pole Cable Mount

Neutrik
Part #092-198
Patent protected, reliable, cost effective, and extremely durable, Neutrik's speakON series of professional speaker and amplifier connectors offers the original "quick lock" locking system. The NL2FX replaces and improves upon the popular NL2FC, and will mate with 4-pole speakON chassis connectors.
Key Features
  • Durable shell construction, easy and fast tool-less assembly
  • Contacts are touch-proof and meet all safety requirements
  • Reliable and nearly universal 2-pole connector for pro PA applications
  • Improved latching mechanism
Similar items that may interest you:
See all items in speakON / HPC Speaker Connectors
60 Day No Hassle Return Policy

Overview

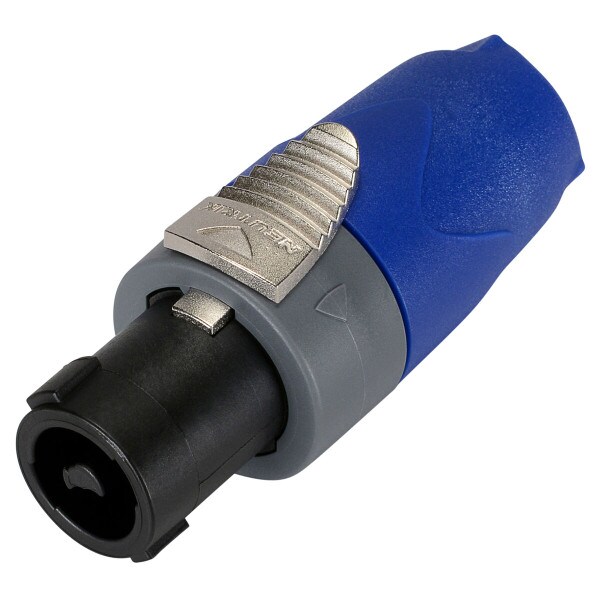

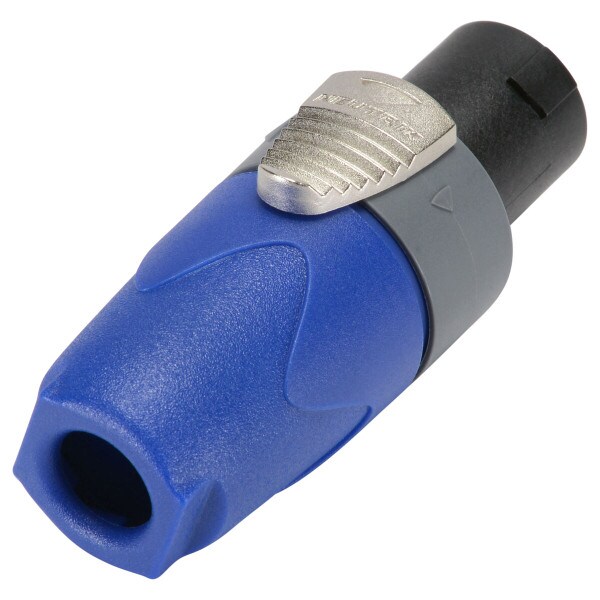

Neutrik NL2FX speakON Connector 2 Pole Cable Mount

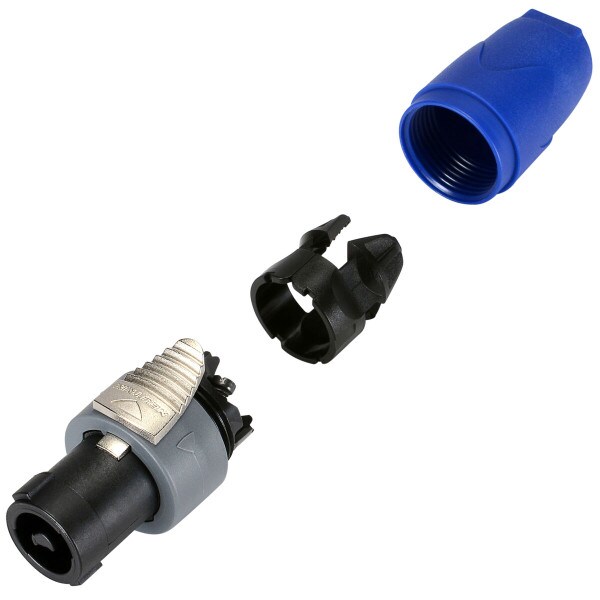

Neutrik's NL2FX speakON connector replaces the incredibly popular NL2FC with an even easier-to-use feature set, while retaining the ruggedness, reliability, and attributes that have made speakON the industry standard for speaker and amplifier connections. The NL2FX features solid contacts with screw-type terminals including a stranded wire protection which also allows for solder termination. Only three parts make installation a breeze, and since no special tools are required, these connectors remain 100% field repairable.

The contacts in this series are touch-proof and designed to prevent damage from arcing if disconnected under load, ensuring fail-safe conditions for both the equipment and the operator. All speakON connectors meet the prevailing safety standards of IEC65, IEC348, CE, and CSA, and are UL rated (file #E135070). A truly superior 2-pole device for PA amplifier-to-speaker connections!

Specifications: • Connector type: Cable end connector, 2-pole • Current rating: 40A continuous; 50A audio signal with 50% duty cycle • Accepts 6-10 mm OD cable. • Mfg. #NL2FX.

Note: Intermates with 4-pole speakON chassis connectors and makes contact with +1/-1. Updated model doesn't work with right angle attachment 092-194.

Product Details

BrandNeutrik
ModelNL2FX
Part Number092-198
Unit of MeasureEach
Weight0.06

Product Specifications

Circuit2-Pole
GenderMale
Mounting TypeCable Mount
