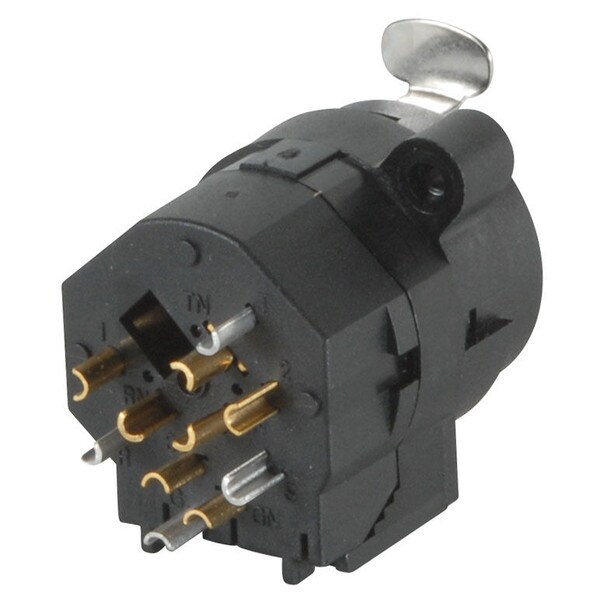

Neutrik NCJ10FI-S Combo Connector XLR 1/4" Stereo Jack Switching Gnd

NeutrikPart # 092-046
Model: NCJ10FI-S
2 Questions, 6 Answers or
Neutrik is proud to offer the Combo connector - a combined XLR female 3-pin receptacle and 1/4" phone jack in one! This unique connector accepts balanced and line inputs or instrument inputs - all in one unit of panel space.

Key Features

  • Combined XLR receptacle and 1/4" phone jack
  • Balanced or line inputs in one XLR shell
  • Saves rack space by combining 2 connectors in one housing
  • Very low conductor capacitance, therefore suitable for digital audio
Your Price: $5.90
MSRP: $7.99
Save $2.09 (26%)
Bulk Pricing
Quantity:Qty: 1-99 $5.90/ea
Quantity:Qty: 100-249 $5.58/ea
Quantity:Qty: 250+ $5.37/ea
12 In Stock
Get Notified When Available

We'll send you an email when Neutrik NCJ10FI-S Combo Connector XLR 1/4" Stereo Jack Switching Gnd is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Neutrik NCJ10FI-S Combo Connector XLR 1/4" Stereo Jack Switching Gnd

In the past consoles and amplifiers were furnished with two input receptacles per channel: a balanced 3-pin female XLR receptacle and a 1/4" phone jack. In the majority of cases, only one input was used at a time. Keeping with the Neutrik view of innovation, the Combo connector was born. Neutrik is proud to offer the Combo connector - a combined XLR female 3-pin receptacle and 1/4" phone jack in one! This unique connector accepts balanced and line inputs or instrument inputs - all in one unit of panel space. The 1/4" jack is available in mono, stereo, stereo-switching and stereo-switching with switching XLR ground contact. The jack retention force is delivered by a special element which is completely separate from the jack and the contact connections are via convenient solder cups. The Combo is digital capable due to the low capacitance of the connectors.

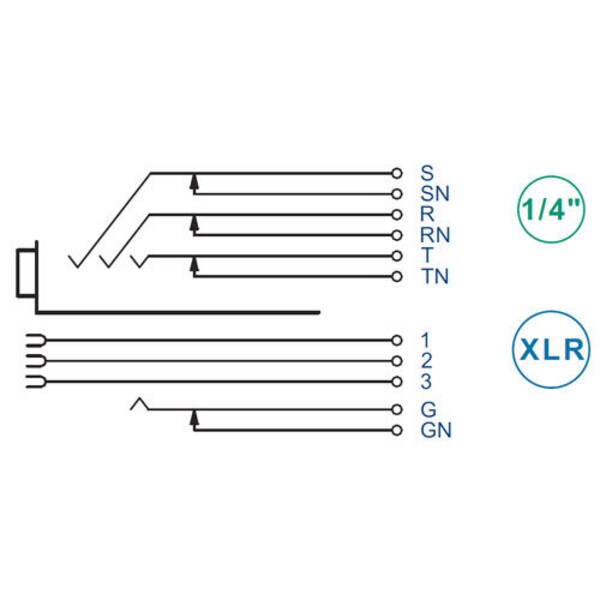

Specifications:• Connector type: XLR / switching (normalling) 1/4" stereo jack with switching ground • Contacts: 1, 2, 3 (XLR); T, R, S, TN, RN, SN, G, GN (1/4") • Mfg. #NCJ10FI-S.

Product Details

BrandNeutrik
ModelNCJ10FI-S
Part Number092-046
UPC844632060724
Unit of MeasureEach
Weight0.04

Product Specifications

Conductors3-Pin
GenderFemale
Mounting TypeChassis / Panel Mount
