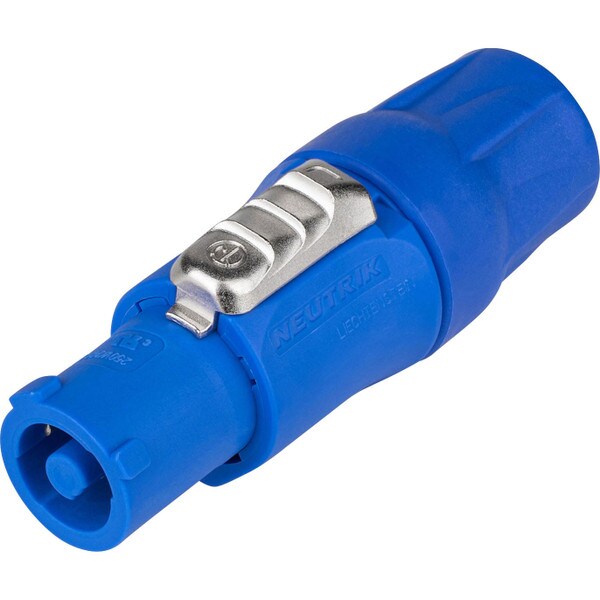

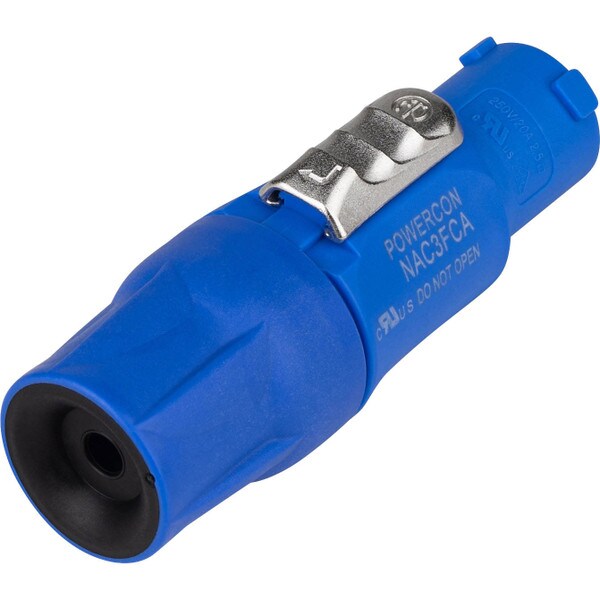

CLEARANCE Neutrik NAC3FCA powerCON Cable Connector Power In Blue

Neutrik
Part #092-280

CLEARANCE Neutrik NAC3FCA powerCON Cable Connector Power In Blue

Neutrik
Part #092-280
Model: NAC3FCA
powerCON is a lockable 3-pole equipment (AC) connector with contacts for line, neutral and premating safety grounds. • Connector: powerCON cable connector • Type: Power In • Color: Blue (A) • Mfg. #NAC3FCA
Key Features

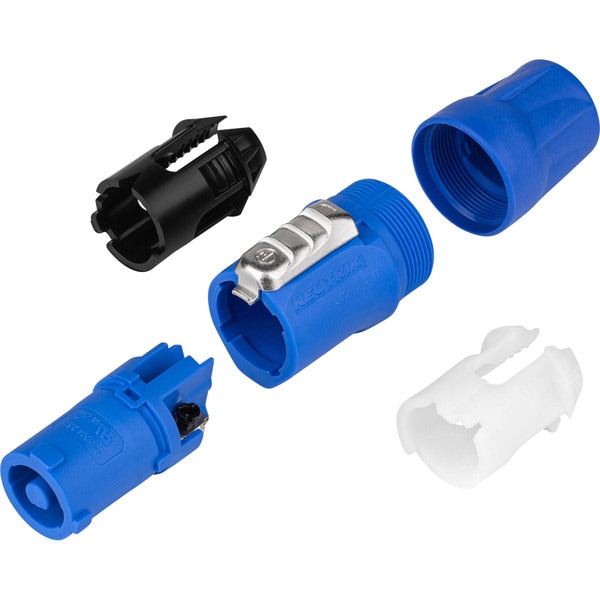

  • Solderless 3-conductor terminations for quick and easy assembly
  • Field serviceable, robust, and unbreakable
  • Fail-safe, long life electrical termination integrity
  • Developed for frequently connected/disconnected systems with operator and equipment safety in mind
  • Unique Neutrik chuck type strain relief
60 Day No Hassle Return Policy

Overview

Neutrik NAC3FCA powerCON Cable Connector Power In Blue

powerCON® is a lockable 3-pole equipment (AC) connector with contacts for line, neutral and premating safety grounds. Color coded for easy identification, powerCON offers power-in (blue) and power-out (gray) versions with different keying to avoid the possibility of short circuiting. The contacts are designed to prevent damage from arcing when disconnected while under load. powerCON meets or exceeds the demands of applications in the fields of A/V usages, test and measurement equipment, computers or industrial designs. UL, cUL recognized components, VDE certified, SEV approved. Rated at 20A/250VAC.

• Connector: powerCON cable connector • Type: Power In • Color: Blue (A)

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

Product Details

BrandNeutrik
ModelNAC3FCA
Part Number092-280
Unit of MeasureEach
Weight0.1

Product Specifications

ConfigurationNeutrik powerCON
Current Rating20A
Power Connector TypeCable Mount
