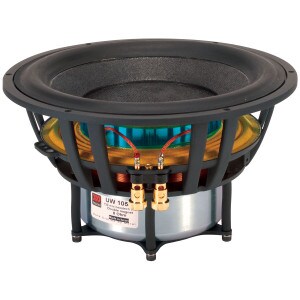

Morel Ultimate UW 1058 10" Subwoofer

MorelPart # 297-130
Model: Ultimate UW 1058
And now…the Ultimate 10" subwoofer. Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver.

Key Features

  • Uniflow™aluminum diecast chassis
  • High-flux double ferrite magnet system
  • 5.1" Hexatech™aluminum voice coil with 1-1/2" winding length
  • Very high Xmax for extended bass response
  • One piece paper cone/center dome
  • Accucenter&#153 self-centering cone assembly
  • PFS&#153 Progression Field Symmetry spider/surround engineering
Your Price: $653.00
+ FREE SHIPPING
MSRP: $816.99
Save $163.99 (20%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Morel Ultimate UW 1058 10" Subwoofer is back in stock or available for preorder.

Estimated back in stock 7/18/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel Ultimate UW 1058 10" Subwoofer

And now…the Ultimate 10" subwoofer. Morel applied their years of experience and creative genius to produce a world-beating sub-bass driver. Extra-large diameter 5" voice coil, free-breathing cast frame, and symmetrical suspension system guarantee the ultimate in subwoofer performance.

Product Details

BrandMorel
ModelUltimate UW 1058
Part Number297-130
UPC844632070860
Unit of MeasureEach
Weight16.5

Product Specifications

Nominal Diameter10"
Power Handling (RMS)500 Watts
Power Handling (MAX)1500 Watts
Impedance
Frequency Response20 to 1,000Hz
Sensitivity85.8dB 2.83V/1m
Voice Coil Diameter5.1"

Thiele-Small Parameters

Resonant Frequency (Fs)26Hz
DC Resistance (Re)6.8Ω
Voice Coil Inductance (Le)1.33mH
Mechanical Q (Qms)1.72
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)1.44ft³
Mechanical Compliance of Suspension (Cms)0.24mm/N
BL Product (BL)15.3T·m
Diaphragm Mass Inc. Airload (Mms)99.3g
Maximum Linear Excursion (Xmax)12.5mm
Surface Area of Cone (Sd)346cm²

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.35"
Baffle Cutout Diameter9.49"
Depth5.85"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.87ft³
Sealed F348Hz
Vented Volume1.5ft³
Vented F324.9Hz
