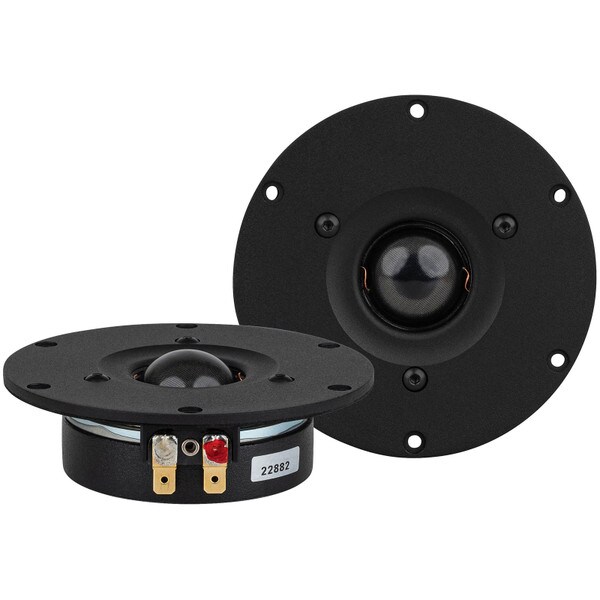

CLEARANCE Morel TSCT1104 Supreme 1" Silk Dome Neodymium Tweeters - Matched Pair

MorelPart # 277-100
Model: TSCT1104
Morel engineered the TSCT1104 1” Supreme series silk dome tweeter pair to deliver high efficiency, flat response, and incredibly low distortion. As the flagship tweeters from Morel, these combine over 40 years of technology and advancement to produce the purest and most detailed high frequency output possible. The TSCT1104 features a powerful neodymium motor, underhung Hexatech aluminum voice coil, titanium former, copper shorting sleeve, and more. In addition, these tweeters are sold in hand matched pairs to ensure consistent response between units.

Key Features

  • 95 dB efficiency for unmatched output capability and dynamics
  • Extremely powerful neodymium motor precisely controls the underhung voice coil
  • Hexatech aluminum voice coil wound on a titanium former minimizes mass for incredible dynamics
  • Full copper shorting sleeve controls inductance and keeps distortion as low as possible

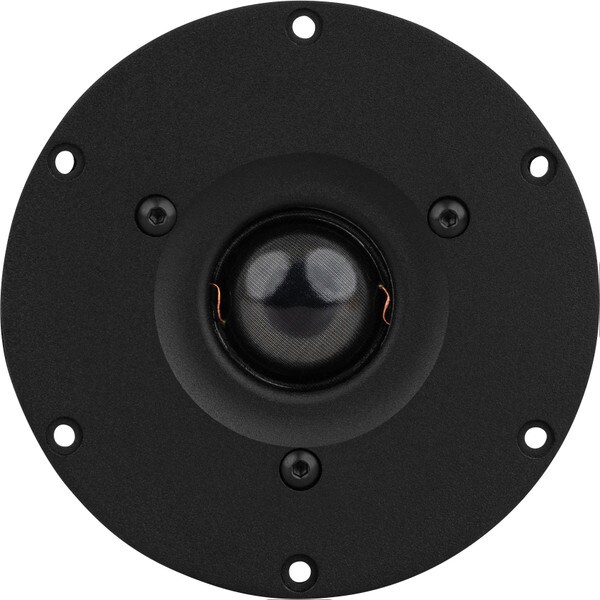

  • Cast aluminum faceplate with IDR (Improved Dispersion Recess) smooths off axis response

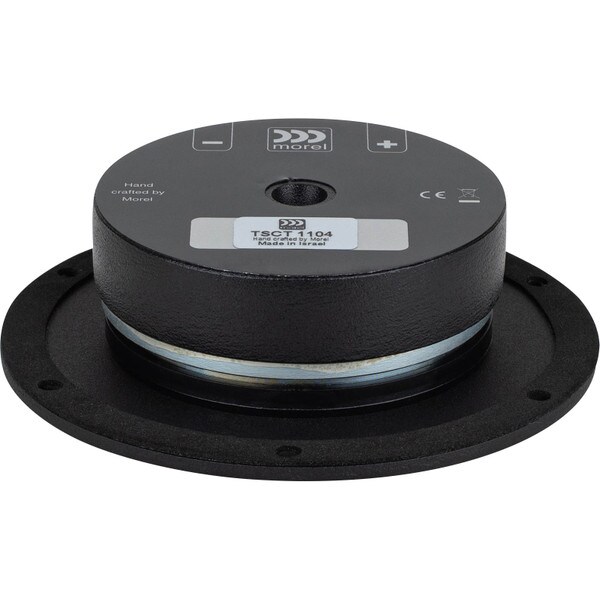

  • Aluminum die-cast rear chamber lowers FS and damps unwanted resonances
Similar items that may interest you:
Morel TSCT1044 Supreme 1" Silk Dome Neodymium Tweeters - Matched Pair
Price: $890.00Part # 277-102
See all items in Tweeters
Get Notified When Available

We'll send you an email when Morel TSCT1104 Supreme 1" Silk Dome Neodymium Tweeters - Matched Pair is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Morel TSCT1104 Supreme 1" Silk Dome Neodymium Tweeters - Matched Pair

If you are searching for no-compromise high frequency response, then look no further than Morel’s TSCT1104 Supreme series 1” silk dome tweeter pair. These remarkable tweeters will provide extremely flat response with low distortion and high efficiency. In addition, the TSCT1104 are sold in matched pairs to make sure that your tweeters have identical frequency response.

Morel included every advancement and refinement at their disposal to ensure that the TSCT1104 delivers class leading performance. A rigid titanium former supports the lightweight Hexatech voice coil, which is wound with hexagonal shaped aluminum wire, to minimize mass for incredible dynamics and transient response. The underhung voice coil assembly is driven by a high energy neodymium motor providing extraordinary control and 95 dB efficiency. With a full copper sleeve on the pole piece inductance and distortion are driven to remarkable low levels. For a low Fs the TSCT1104 uses a cast aluminum rear chamber which effectively damps unwanted resonances. The 110 mm cast aluminum faceplate includes Morel’s unique Improved Dispersion Recess (IDR) to ensure smooth on and off-axis response.

Note: This tweeter is also available with a 104 mm faceplate. See part # 277-102

Product Details

BrandMorel
ModelTSCT1104
Part Number277-100
UPC848864068541
Unit of MeasurePairs
Weight2.85

Product Specifications

Cutout Diameter2.87
Tweeter TypeSoft Dome
Power Handling (RMS)200 Watts
Impedance4Ω
Frequency Response1,500 to 20,000Hz
Sensitivity95dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)591Hz
DC Resistance (Re)4.19Ω
Voice Coil Inductance (Le)0.047mH
Mechanical Q (Qms)2.44
Electromagnetic Q (Qes)0.55
Total Q (Qts)0.44

Mounting Information

Overall Outside Diameter4.33"
Depth1.17"
