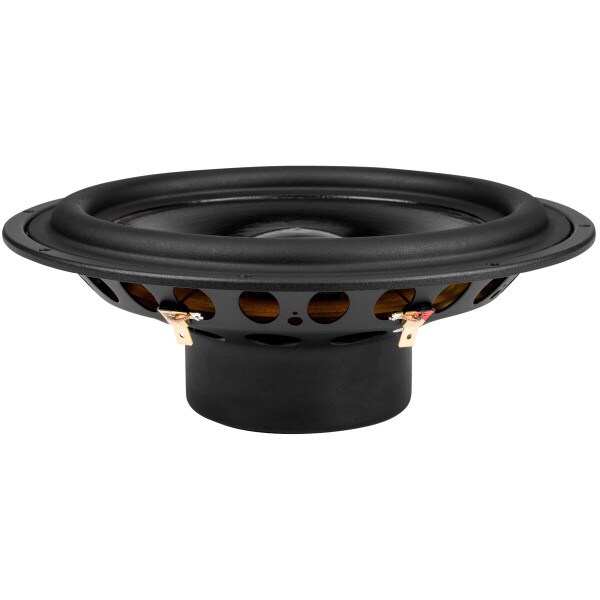

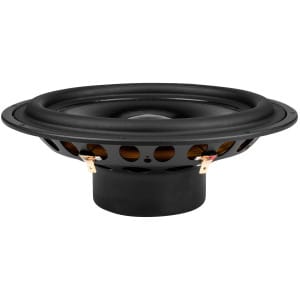

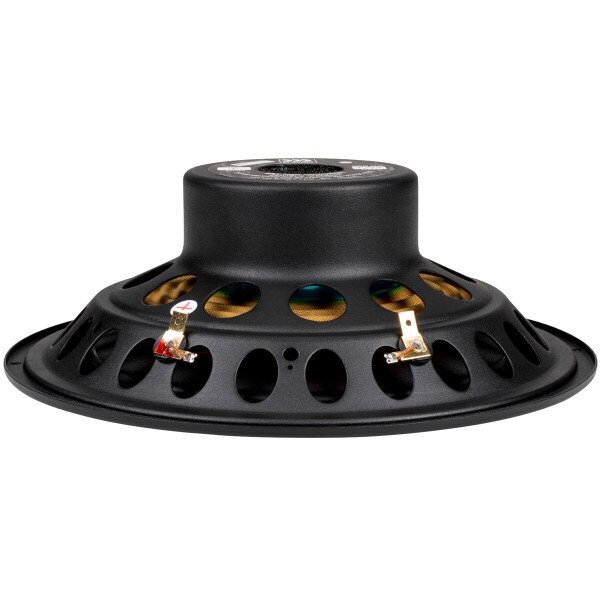

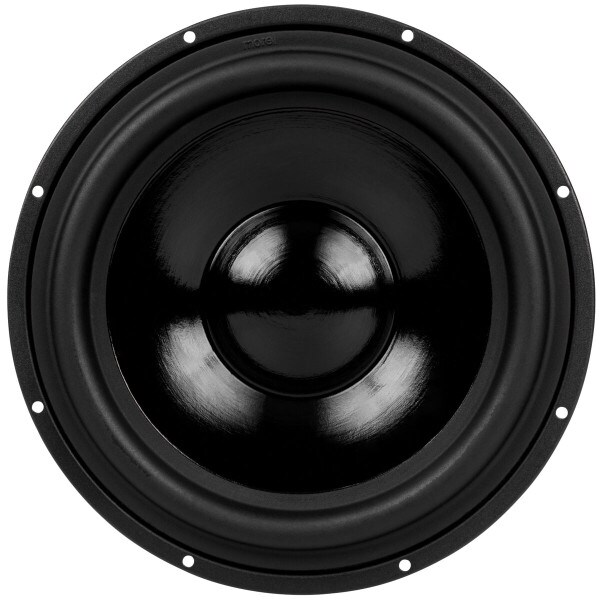

Morel MW-266 8" Poly Woofer

Morel
Part #297-040

Morel MW-266 8" Poly Woofer

Morel
Part #297-040
Model: MW-266
The MW-266 incorporates Morel's unique vented double magnet and 3" Hexatech system to provide long excursion, smooth response, and extremely low distortion. Cone is made of polymer treated paper and is coupled to a rubber surround.
Key Features
  • 3" voice coil for high power handling
  • Composite paper cone provides excellent damping
  • Dual magnet motor system for great control
  • Vented motor, voice coil, and frame minimizes compression
Similar items that may interest you:
Your Price: $166.00
+ FREE SHIPPING
MSRP: $249.99
Save $83.99 (34%)
Bulk Pricing
Ships next business day. Details

Only 2 In Stock

More due on 5/23/2025

Free Shipping available on orders over $99.00 in the US. Details

Overview

Morel MW-266 8" Poly Woofer

The MW-266 incorporates Morel's unique vented double magnet and 3" Hexatech system to provide long excursion, smooth response, and extremely low distortion. Cone is made of polymer treated paper and is coupled to a rubber surround. Blends well with any of the Morel tweeters, when crossed over at 2KHz.

Product Details

BrandMorel
ModelMW-266
Part Number297-040
UPC844632019814
Unit of MeasureEach
Weight2.65

Product Specifications

Nominal Diameter8"
Power Handling (RMS)150 Watts
Power Handling (MAX)1000 Watts
Impedance
Frequency Response22 to 2,200Hz
Sensitivity89dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.54mH
Mechanical Q (Qms)2.45
Electromagnetic Q (Qes)0.73
Total Q (Qts)0.56
Compliance Equivalent Volume (Vas)2.83ft³
Mechanical Compliance of Suspension (Cms)1.19mm/N
BL Product (BL)6.25T·m
Diaphragm Mass Inc. Airload (Mms)24.9g
Maximum Linear Excursion (Xmax)4.3mm
Surface Area of Cone (Sd)219cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.75"
Baffle Cutout Diameter7.75"
Depth2.7"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.92ft³
Sealed F348.5Hz
Vented Volume1.38ft³
Vented F338Hz
