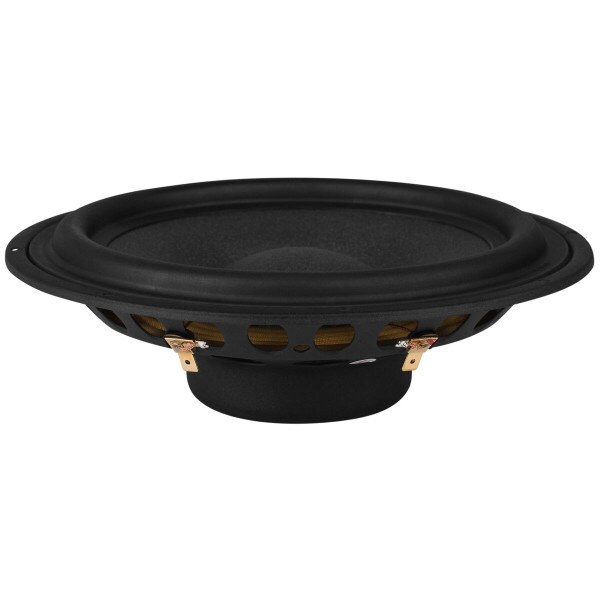

Morel MSW 265 Shallow Classic Series 8" Composite Paper Cone Woofer 4 Ohms

Morel
Part #297-008

Morel MSW 265 Shallow Classic Series 8" Composite Paper Cone Woofer 4 Ohms

Morel
Part #297-008
Model: MSW265
The Morel MSW 265 8" woofer delivers all the quality and performance you have come to expect from Morel's Classic Series with less mounting depth. At only 2.375" deep, this driver will provide excellent sound in the shallowest installations.
Key Features
  • Shallow profile Damped Polymer Cone for smooth on and off axis response
  • Huge 3" Hexatech™ aluminum voice coil delivers precise control
  • 2.375" mounting depth for use in the shallowest enclosures
  • Extensive frame, coil, and motor venting lowers compression and distortion
Your Price: $208.00
+ FREE SHIPPING
MSRP: $243.99
Save $35.99 (15%)
Bulk Pricing

Back-Ordered

Estimated back in stock 5/16/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel MSW 265 Shallow Classic Series 8" Composite Paper Cone Woofer 4 Ohms

With the emphasis today on smaller speaker designs, Morel has re-engineered the Classic Series woofers to minimize depth without sacrificing their sonic characteristics. At only 2.375" deep, MSW 265 8" has been optimized for use in the smallest enclosures. With a shallow profile Damped Polymer Cone this driver will provide smooth response both on and off axis for natural, room filling response. The huge 3" Hexatech™ voice coil has extensive venting in the former, frame, and magnet to ensure high power handling and low power compression. The MSW 265 is the perfect woofer for use in extremely compact 2-way or 3-way speaker designs.

Product Details

BrandMorel
ModelMSW265
Part Number297-008
UPC848864043616
Unit of MeasureEach
Weight2.3

Product Specifications

Nominal Diameter8"
Bolt Circle Diameter8.5
Power Handling (RMS)180 Watts
Power Handling (MAX)360 Watts
Impedance4Ω
Frequency Response35 to 2,000Hz
Sensitivity90dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)30Hz
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)3.12ft³
Maximum Linear Excursion (Xmax)3.5mm

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.75"
Baffle Cutout Diameter7.75"
Depth2.375"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.8ft³
Sealed F357.2Hz
Vented Volume1ft³
Vented F342.4Hz
