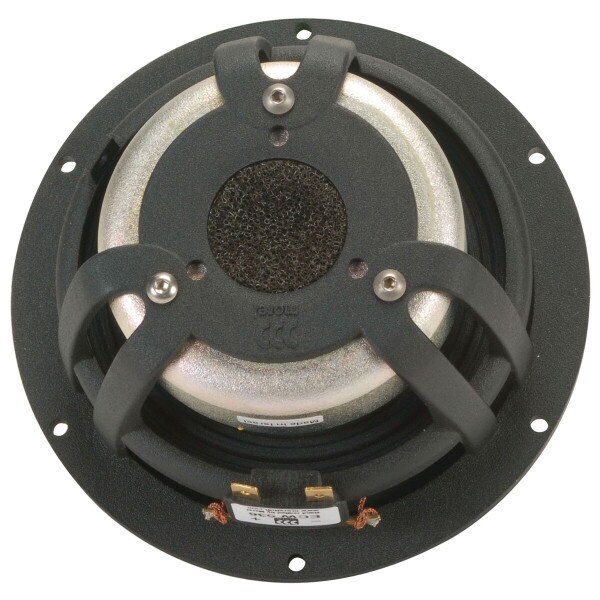

Morel EW 536 5" Woofer

MorelPart # 297-122
Model: EW 536
Morel Elite Series 5" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits.

Key Features

  • DPC (Damped Polymer Composite) cone material
  • Large diameter Hexatech&#153 aluminum voice coil
  • Hybrid&#153 neodymium/ferrite magnet
  • Uniflow&#153 chassis removes air restrictions
  • High power handling
Your Price: $256.00
+ FREE SHIPPING
MSRP: $313.99
Save $57.99 (18%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when Morel EW 536 5" Woofer is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel EW 536 5" Woofer

Morel Elite Series 5" woofers feature large diameter voice coils, open yet strong frames, advanced composite cones, and carefully engineered magnetic circuits. Frequency response is extremely flat and overall definition is superb. Suitable for the most demanding audio reproduction systems. Latest version of Morel's MW-143, HU-531, and HU-521 drivers.

Product Details

BrandMorel
ModelEW 536
Part Number297-122
UPC844632074691
Unit of MeasureEach
Weight2.8

Product Specifications

Nominal Diameter5"
Power Handling (RMS)150 Watts
Power Handling (MAX)1000 Watts
Impedance6Ω
Frequency Response40 to 4,500Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)45Hz
DC Resistance (Re)4.5Ω
Voice Coil Inductance (Le)0.38mH
Mechanical Q (Qms)1.16
Electromagnetic Q (Qes)0.28
Total Q (Qts)0.22
Compliance Equivalent Volume (Vas)0.36ft³
Mechanical Compliance of Suspension (Cms)0.95mm/N
BL Product (BL)1T·m
Diaphragm Mass Inc. Airload (Mms)13g
Maximum Linear Excursion (Xmax)5.5mm
Surface Area of Cone (Sd)88cm²

Materials of Construction

Cone MaterialPoly Composite
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.63"
Baffle Cutout Diameter4.76"
Depth2.56"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.2ft³
Vented F350.8Hz
