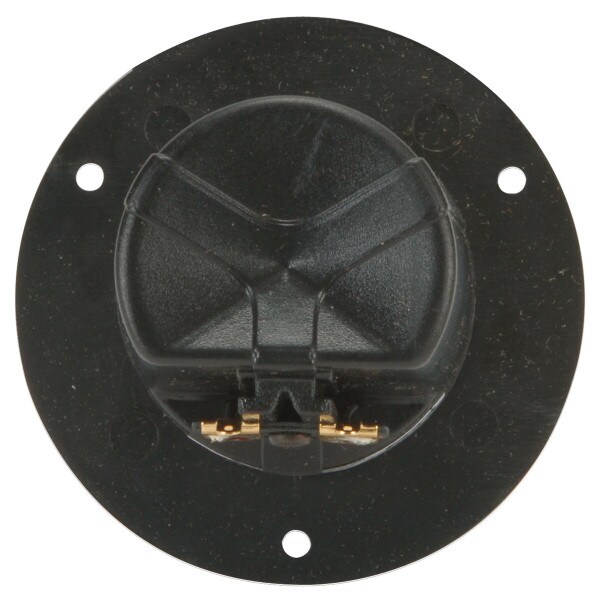

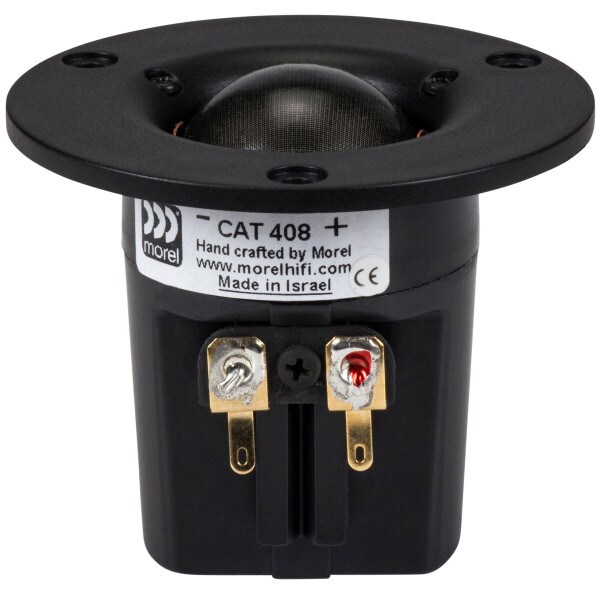

Morel CAT 408 1-1/8" Compact Soft Dome Tweeter

MorelPart # 277-086
Model: CAT 408
The CAT408 is virtually identical to the superb MDT-39 but with one very important difference: it employs Morel's Hexatech aluminum voice coil technology to improve efficiency and greatly improve power handling (to 120 watts RMS!).

Key Features

  • 72 mm compact faceplate
  • Large Hexatech&#153 aluminum voice coil
  • Neodymium magnet system
  • Ferrofluid cooled
  • High power handling
Your Price: $113.00
+ FREE SHIPPING
MSRP: $145.99
Save $32.99 (23%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Morel CAT 408 1-1/8" Compact Soft Dome Tweeter is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel CAT 408 1-1/8" Compact Soft Dome Tweeter

The CAT408 is virtually identical to the superb MDT-39 but with one very important difference: it employs Morel's Hexatech aluminum voice coil technology to improve efficiency and greatly improve power handling (to 120 watts RMS!). Its small faceplate allows very close placement to a woofer or midrange for improved sound integration. Fully shielded for A/V use. Latest evolution of Morel's MDT-40.

Specifications: • Power handling: 120 watts RMS/170 watts max • VCdia: 1-1/8" • Impedance: 8 ohms • DC resistance: 5.2 ohms • Frequency response: 2,200-20,000 Hz • Fs: 750 Hz • SPL: 89 dB 1W/1m • Dimensions: Overall diameter: 2.83" x 2.83", Cutout diameter: 1.73", Depth: 2.36".

Product Details

BrandMorel
ModelCAT 408
Part Number277-086
UPC844632070778
Unit of MeasureEach
Weight0.25

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter1.73
Tweeter TypeSoft Dome
Power Handling (RMS)120 Watts
Impedance8Ω
Frequency Response1,600 to 25,000Hz
Sensitivity89dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)780Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)0.09mH
Mechanical Q (Qms)0.87
Electromagnetic Q (Qes)1.3
Total Q (Qts)0.52

Mounting Information

Overall Outside Diameter2.83"
Depth2.24"
