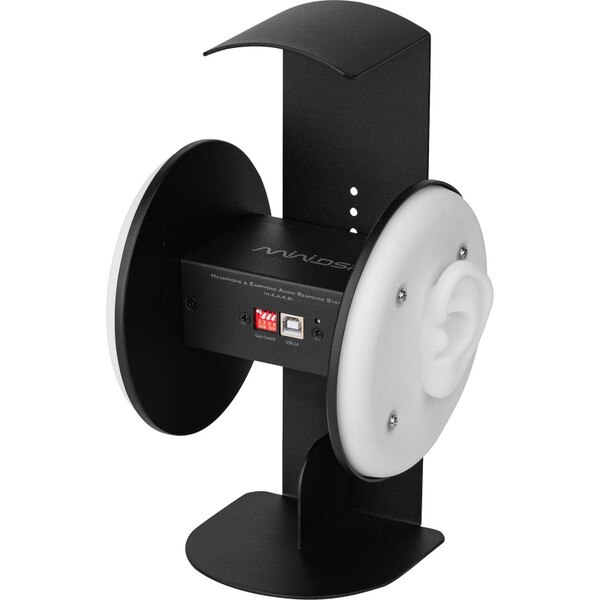

miniDSP EARS Calibrated USB Measurement Test Jig for Headphones

miniDSPPart # 230-3424
Model: EARS

The miniDSP EARS Headphone Jig (Earphone Audio Response System) is an affordable USB-connected headphone measurement fixture designed to help capture frequency response data and create EQ filters for headphone systems. It’s built using technology similar to the miniDSP UMIK-1 measurement microphone and outputs as a plug-and-play USB audio device.

Key Features

  • Affordable calibrated headphone test jig for measurements
  • Plug-and-play USB audio streaming for Windows, Mac, and Linux
  • Headphone frequency sweep measurement capability when used with software like Room EQ Wizard
  • Built using the same technology as the miniDSP UMIK-1 calibrated measurement microphone
  • Powered from USB with no external power supply needed
  • Designed for EQ filter creation across headphone systems with EQ capability
Your Price: $399.98
+ FREE SHIPPING
MSRP: $499.99
Save $100.01 (20%)
Bulk Pricing
Only 7 In Stock
Get Notified When Available

We'll send you an email when miniDSP EARS Calibrated USB Measurement Test Jig for Headphones is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

miniDSP EARS Calibrated USB Measurement Test Jig for Headphones

miniDSP EARS Calibrated USB Measurement Test Jig for Headphones

Calibrated headphone test fixture, low noise capsules, USB audio plug and play setup, Configurable jumpers

Introducing "EARS", the Earphone Audio Response System. miniDSP EARS brings headphone measurement capability to "the masses" - it's just an extremely affordable measurement rig for headphones and IEMs that miniDSP has built using the same technology as their popular UMIK-1 calibrated measurement microphone. Alternatively one could use EARS as a binaural microphone with USB audio streaming.

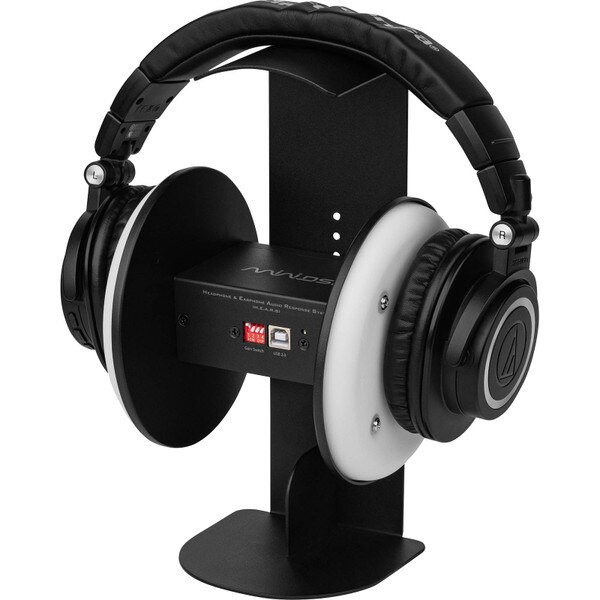

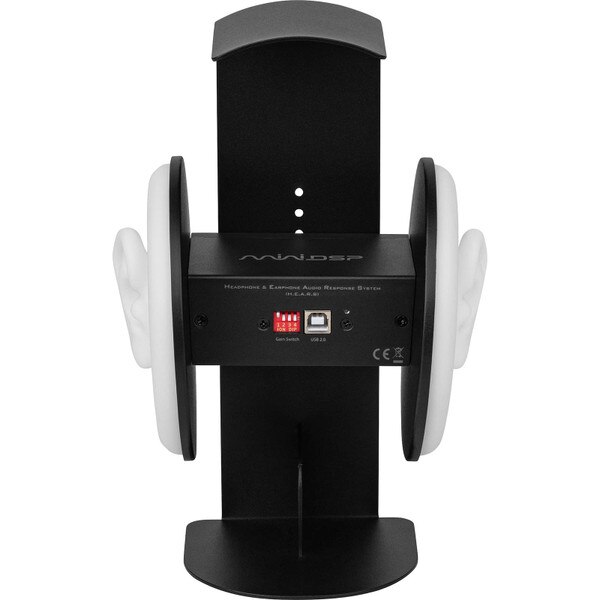

Each pair of EARS has two microphone capsules mounted in a minimal "dummy head". Measurement output is via the driverless USB connection. The EARS are powered from the USB so there is no need for an external power supply. To measure headphones, just mount your headphones on the rig and run a measurement sweep using your headphone amp and favorite measurement program (e.g. Room EQ Wizard). The supplied calibration file corrects for the response of the microphone capsule and the ear. The miniDSP EARS is the perfect tool for creating EQ filters for the miniDSP HA-DSP headphone amplifier or for any other headphone system with EQ capability.

NOTE: Please note that EARS is not an industry-standard measurement head. Even expensive test jigs can produce measurements that are different to each other depending on the type of ear simulator. miniDSP's goal with the EARS is to produce something that is affordable and fun to use.

    Features

  • Affordable Headphone test jig
  • Plug and play USB audio streaming for Win/Mac/Linux
  • Step by step application notes on how to Equalize your headphone using EARS

    What's in the box?

  • 1 x EARS test jig
  • 1 x shielded USB cable (1.5m)

Unique Calibration File Download

All EARS are calibrated with unique left and right calibration files. To download the calibration files, click here and scroll down to "Unique Calibration File Download."

Specifications

  • Capsule Type & Polar pattern:   6mm electret, Omni-Directional
  • Frequency response: 20 Hz - 20kHz
  • USB Audio class: 1.0 Driverless interface for Windows, Mac & Linux
  • Connector:   USB Connector
  • Calibration File: Unique microphone calibration .txt file referenced to the Serial Number. Includes on frequency / Amplitude / Sensitivity drift

  • Resolution & Sample rate: 24bit ADC @ 48kHz
  • Max SPL for 1 % TDH @ 1kHz: 133 dB SPL @OdB gain setting
  • Weight: 1.3kG
  • Power: USB Powered (5V) - Blue LED indicates unit under power
  • Win/Mac/Linux Compatible: ✔

Product Details

BrandminiDSP
ModelEARS
Part Number230-3424
UPC848864071343
Unit of MeasureEach
Weight4.5
