  • Mean Well MW LRS-600-48 48 VDC 12.5A 600W Regulated Switching Power Supply AC Adapter

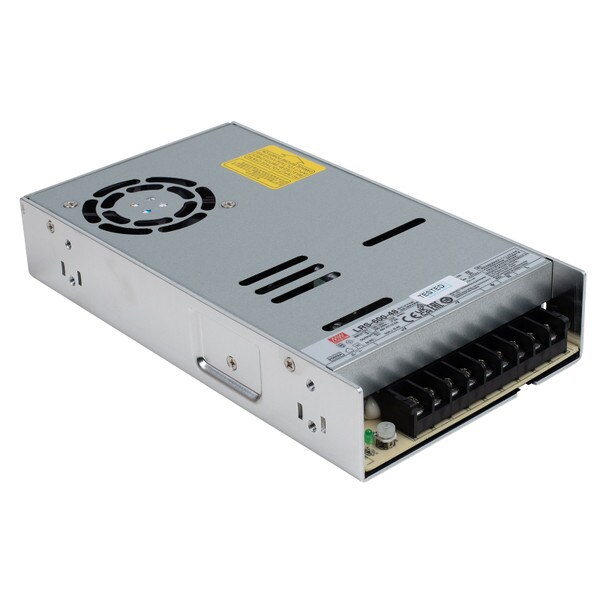

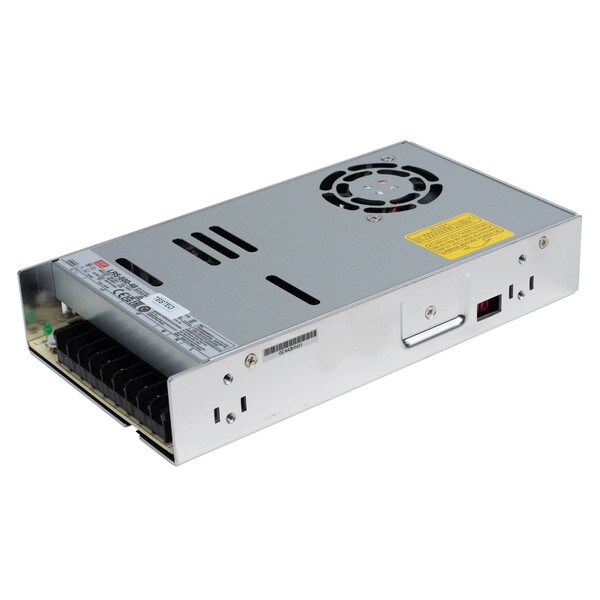

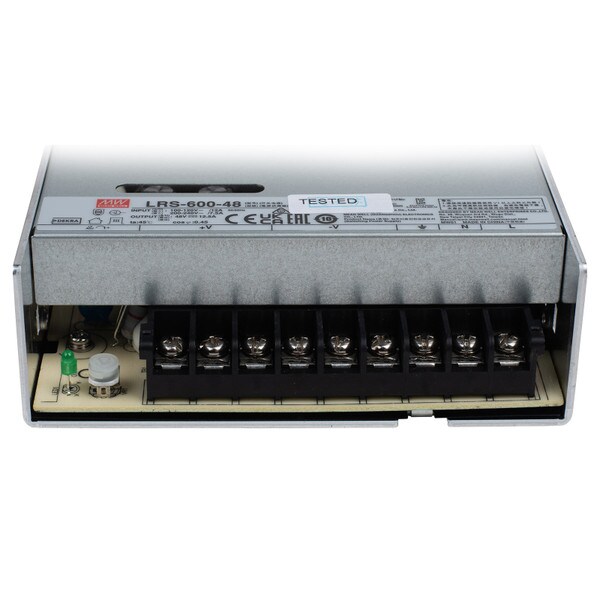

NEW Mean Well MW LRS-600-48 48 VDC 12.5A 600W Regulated Switching Power Supply AC Adapter

Mean WellPart # 320-3170
Model: LRS-600-48

This large 48 Volt DC, 12.5 Amp regulated power supply is capable of supporting amplifiers with up to 600 watts of output. Adjustable 45.6 to 52.8 Volts DC output and switchable 90-264 Volts AC input. UL recognized design.

Key Features

  • Supplies up to 600W of power for lighting and current hungry amplifiers
  • Up to 92% efficient
  • Adjustable output of 45.6 to 52.8 VDC
  • UL recognized, regulated output with forced air cooling for long lasting consistent voltage
  • World compatible 90 to 264 VAC input voltage
NEW $74.98
MSRP: $89.99
Save $15.01 (17%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Mean Well MW LRS-600-48 48 VDC 12.5A 600W Regulated Switching Power Supply AC Adapter is back in stock or available for preorder.

Estimated back in stock 2/13/2026
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Mean Well MW LRS-600-48 48 VDC 12.5A 600W Regulated Switching Power Supply AC Adapter

Large amplifiers require large power supplies, and they don't get much larger than this! With a regulated output of 48 Volts DC (which can be adjusted from 45.6 to 52.8 V), and current capacity of 12.5 amps, this power supply is the perfect partner for amplifier boards capable of up to 600 watts of output.

Voltage input can be switched for use with 110 or 240 VAC mains power. Overload, over voltage, and over temperature protection is built-in, shutting down the power supply to prevent damage and then restoring power upon recovery. Forced air cooling regulates temperature internally. Power supply cable and output cable included. UL recognized design.

Note: Minimum recommend power wire gauge is 16 AWG.

Specifications:
• Input power: Switchable between 90-132 VAC and 180-264 VAC, 47-63 Hz
• Current consumption: 12A @ 115 VAC, 7.5A @ 230 VAC
• Output power: 48 VDC, 12.5A
• Adjustable output voltage range: 45.6-52.8 V
• Efficiency: 92%
• Dimensions: 8.86" L x 4.88" W x 1.62" H (225 x 124 x 41 mm)
• Includes: 5 ft. AC cord and 3 ft. DC cord with 2.5 x 5.5 mm plug

Product Details

BrandMean Well
ModelLRS-600-48
Part Number320-3170
UPC848864079950
Unit of MeasureEach
Weight2.1

Product Specifications

DC Output Voltage48V
Input Voltage100~240 VAC

Specifications
