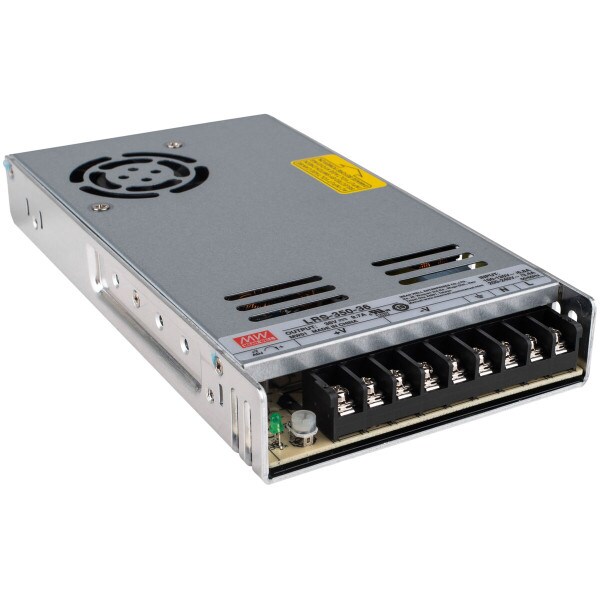

CLEARANCE Mean Well MW LRS-350-36 36V 9.7A 350W Regulated Switching Power Supply AC Adapter with Power Cables

Mean WellPart # 320-3168
Model: LRS-350-36
A reliable, fully tested power supply by Mean Well for high current amplifier boards, and other 36 VDC projects requiring less than 9.7A. UL recognized design.

Key Features

  • AC input range for domestic or international use
  • Built-in Short circuit, overload, and over voltage protection
  • Forced air cooling by built-in DC fan
  • LED indicator for power on
  • 100% full load burn-in test
  • Switching regulated power supply for reliable, constant voltage
  • UL 60950-1 approved for safety when used with 3-prong grounded AC cord (not included)
Get Notified When Available

We'll send you an email when Mean Well MW LRS-350-36 36V 9.7A 350W Regulated Switching Power Supply AC Adapter with Power Cables is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Mean Well MW LRS-350-36 36V 9.7A 350W Regulated Switching Power Supply AC Adapter with Power Cables

This power supply is your best choice for reliable, fully tested power output for amp boards, and other 36 V projects. AC input range accepts from 90~132 / 180~264V by switch operation. Short-circuit, over-load, over-voltage protection is built-in. Forced air cooling fan keeps the power supply cool. 100% full load burn-in tested. The Mean Well LRS-350-36 meets UL 60950-1 safety standards.

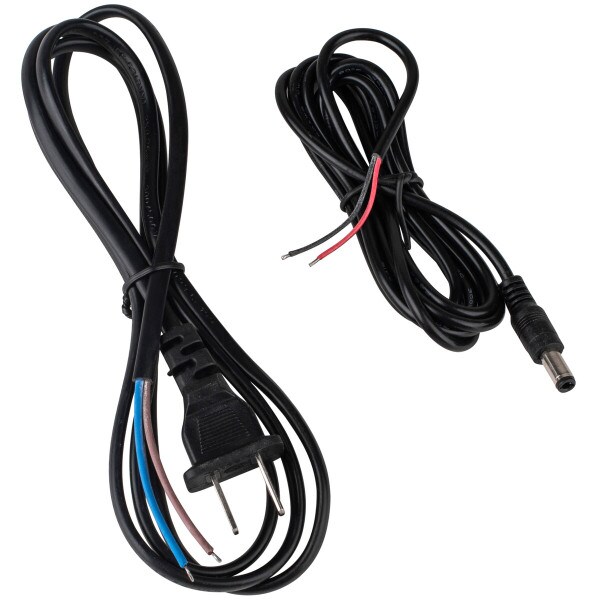

Specifications: • Input power: 90~132 / 180~264 VAC by switch, 47-63 Hz • Output power: 32.4~39.6 V, 9.7A • Dimensions: 8.47" L x 4.53" W x 1.181" H • Includes: 5 ft. 2-prong AC cord and 3 ft. DC cord with 2.5 x 5.5 mm plug.

Product Details

BrandMean Well
ModelLRS-350-36
Part Number320-3168
UPC6959687379982
Unit of MeasureEach
Weight2

Product Specifications

DC Output Voltage36V
