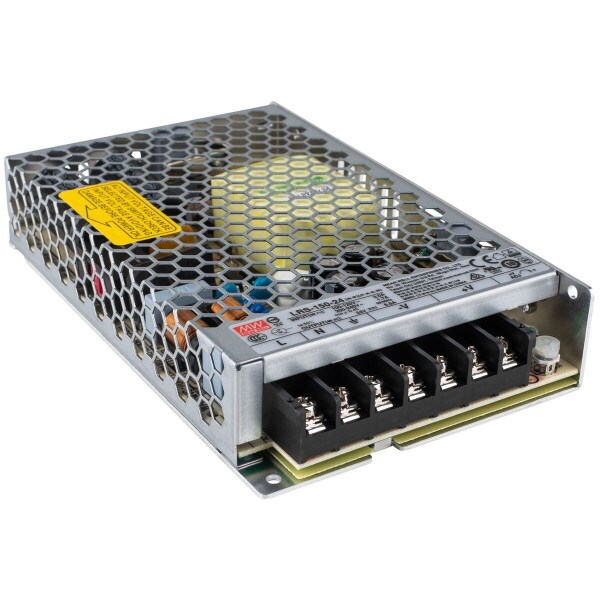

Mean Well MW LRS-150-24 24V 6.5A 150W Regulated Switching Power Supply AC Adapter with Power Cables
$32.98
Ships next business day. Details
Free Shipping available on orders over in the US. Details
60 Day No Hassle Return PolicyOverview
This power supply is your best choice for reliable, fully tested power output for amp boards, and other 24 V projects. AC input range accepts from 90~132 / 180~264V by switch operation. Short-circuit, over-load, over-voltage protection is built-in. Free air convection keeps the power supply cool. 100% full load burn-in tested. The Mean Well LRS-150-24 meets UL 60950-1 safety standards.

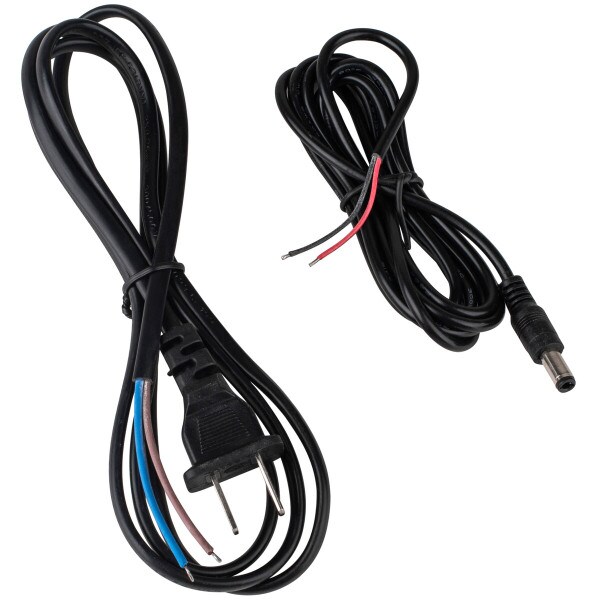

Specifications: • Input power: 90~132 / 180~264 VAC by switch, 47-63 Hz • Output power: 21.6~28.8 V, 6.5A • Dimensions: 6.26" L x 3.82" W x 1.181" H • Includes: 5 ft. 2-prong AC cord and 3 ft. DC cord with 2.5 x 5.5 mm plug.
