  • Mabuchi RS-555PC-3550 High Torque 12 VDC Motor with 1/8" Dia. Shaft

BUYOUT Mabuchi RS-555PC-3550 High Torque 12 VDC Motor with 1/8" Dia. Shaft

Factory Buyouts
Part #259-555

BUYOUT Mabuchi RS-555PC-3550 High Torque 12 VDC Motor with 1/8" Dia. Shaft

Factory Buyouts
Part #259-555
Model: RS-555PC-3550
The Mabuchi RS- 555PC robust 12 VDC motor is perfect for any number of electronic projects, including modelling, R/C, and robotics
Key Features
  • High speed of 4800 RPM, with no load, at 12 VDC
  • Wrap-around shield reduces electrical interference
  • Easily front mount with two M3 screws (sold separately)
  • Voltage range is 9 - 30 VDC for versatility
  • Common 1/8" Dia. shaft for press fit pulleys and gears
  • High 2253 g-cm stall torque helps prevent unintended motor stoppage
  • Carbon brush and ferrite magnets for longevity
BUYOUT $4.97
MSRP: $14.99
Save $10.02 (67%)
Bulk Pricing
Quantity:Qty: 1-9 $4.97/ea
Quantity:Qty: 10-49 $4.47/ea
Quantity:Qty: 50+$3.98/ea
Order in the next 3 hr 44 min to ship today. Details

208In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

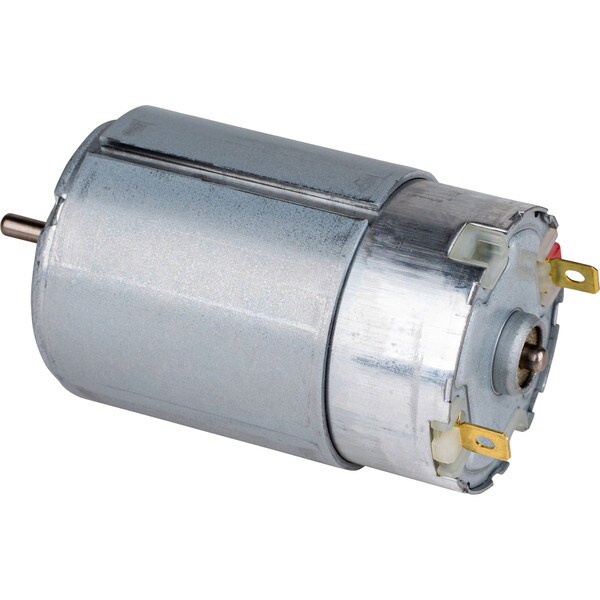

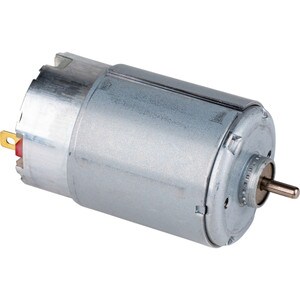

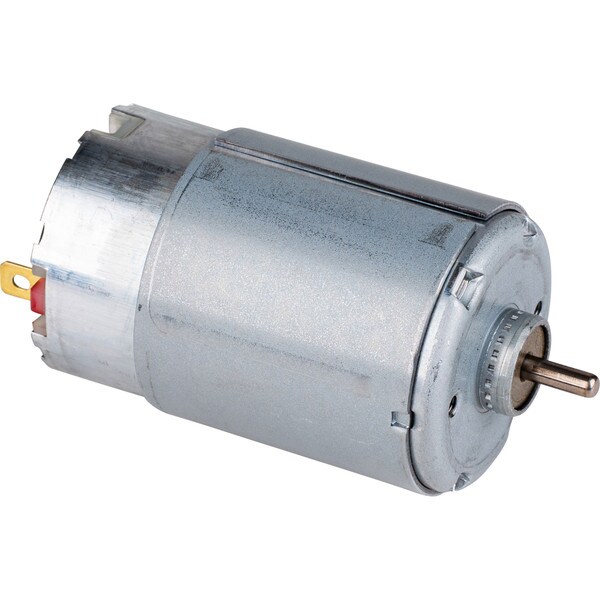

Mabuchi RS-555PC-3550 High Torque 12 VDC Motor with 1/8" Dia. Shaft

Originally offered as a high torque motor for ink jet printers and electric drills, this motor satisfies those requirements and more. Many hobbyist projects such as radio controlled vehicles, robotics, model-building, home automation are all perfect fit for this stout 12 VDC motor. The 5-pole construction utilizes permanent magnets, so the motor produces high torque with high efficiency. Simply mount the motor with two M3 screws into the two threaded 3 mm holes on the face of the motor.

Specifications: • Speed at 12 VDC: 4800 rpm +/- 3% • Speed / Torque: 4240 rpm / 261 g-cm • Current draw under spec load: 1.3A • Wattage output: 5-90W • Stall torque: 2253 g-cm • Dimensions including shaft and terminals: 3.02" L x 1.5" Dia. • Shaft dimensions: 0.34" L x 0.126" Dia. • Mounting hole cutout: 0.5125" Dia. x 0.17" D • M3 screw hole spacing to center: 0.985" • Terminals size: 3/16".

Product Details

BrandFactory Buyouts
ModelRS-555PC-3550
Part Number259-555
UPC848864060514
Unit of MeasureEach
Weight0.55
