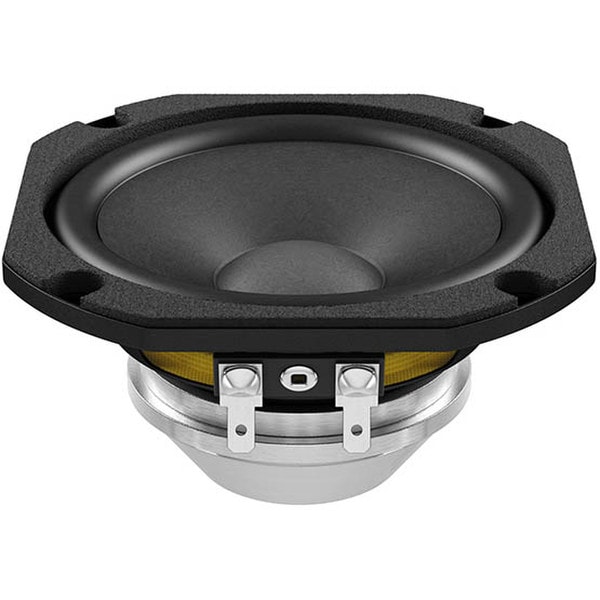

LaVoce WSN041.00 4" Neodymium Woofer

LavocePart # 293-796
Model: WSN041.00

The LaVoce WSN041.00 is a superb 4" woofer that features a gasket that allows for flexible mounting options. With controlled response down to 120 Hz, this woofer has the ability to crossover very low, and mate to a subwoofer easily.

Key Features

  • FEM optimized motor
  • Copper voice coil on a polyimide former for high power handling
  • Resonance-free, heavy duty steel basket demonstrates excellent build quality
  • Low resonant frequency for easy mating to a subwoofer
Your Price: $62.00
MSRP: $93.00
Save $31.00 (33%)
Bulk Pricing
6 In Stock
Get Notified When Available

We'll send you an email when LaVoce WSN041.00 4" Neodymium Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce WSN041.00 4" Neodymium Woofer

The LaVoce WSN041.00 is a superb 4" woofer that features a gasket that allows for flexible mounting options. The excellent response down to 120 Hz gives this woofer the ability to crossover very low, and mate to a subwoofer easily. To add to the versatility of this driver, the cone has been treated to be waterproof, making it ideal for outdoor cabinets.

Product Details

BrandLavoce
ModelWSN041.00
Part Number293-796
UPC848864072715
Unit of MeasureEach
Weight1.2

Product Specifications

Nominal Diameter4"
Power Handling (RMS)40 Watts
Power Handling (MAX)80 Watts
Impedance
Frequency Response100 to 10,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)100Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)0.27mH
Mechanical Q (Qms)7
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.31
Compliance Equivalent Volume (Vas)0.06ft³
Mechanical Compliance of Suspension (Cms)0.4mm/N
BL Product (BL)7.9T·m
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)54cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.09"
Baffle Cutout Diameter3.68"
Depth2.21"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.016ft³
Sealed F3259Hz
Vented Volume0.075ft³
Vented F393.4Hz
