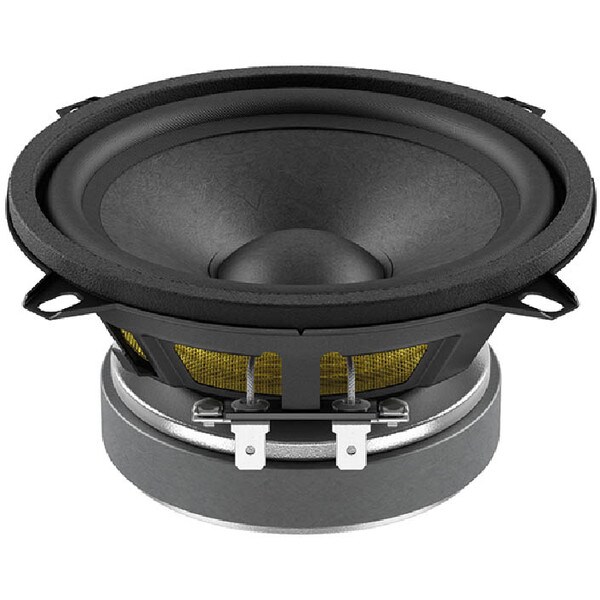

Lavoce WSF051.02 5" Woofer

LavocePart # 293-802
Model: WSF051.02
Read 1 Review or

The LaVoce WSF051-02 5" woofer utilizes an impressive list of materials that make it a great choice for high powered, high output applications.

Key Features

  • 1" copper voice coil
  • 120 watt program power handling
  • Heavy duty, resonance-free steel basket design
Your Price: $39.00
MSRP: $58.00
Save $19.00 (33%)
Bulk Pricing
4 In Stock
Get Notified When Available

We'll send you an email when Lavoce WSF051.02 5" Woofer is back in stock or available for preorder.

Order in the next 3 hr 45 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Lavoce WSF051.02 5" Woofer

The LaVoce WSF051-02 5" woofer utilizes an impressive list of materials that make it a great choice for high powered, high output applications. A water resistant treated cone and rubber surround mean this will last years in the harshest environments. An impressive 120 watt program power handling and over 91 dB sensitivity combine for surprising output capability. A resonance-free steel frame holds the FEA optimized motor structure in place.

Product Details

BrandLavoce
ModelWSF051.02
Part Number293-802
UPC848864072739
Unit of MeasureEach
Weight2.45

Product Specifications

Nominal Diameter6"
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response100 to 5,000Hz
Sensitivity91.5dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)106Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.27mH
Mechanical Q (Qms)7.02
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.6
Compliance Equivalent Volume (Vas)0.12ft³
Mechanical Compliance of Suspension (Cms)0.312mm/N
BL Product (BL)6.4T·m
Maximum Linear Excursion (Xmax)3.1mm
Surface Area of Cone (Sd)88.25cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6"
Baffle Cutout Diameter4.43"
Depth2.73"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.09ft³
Sealed F3142.2Hz
Vented Volume0.22ft³
Vented F380Hz
