Lavoce WAF124.01 12" Woofer

Lavoce
Part #293-812

Lavoce WAF124.01 12" Woofer

Lavoce
Part #293-812
Model: WAF124.01

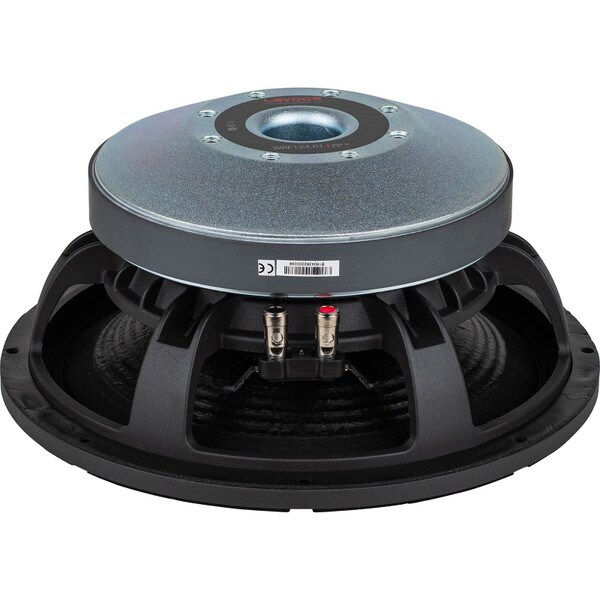

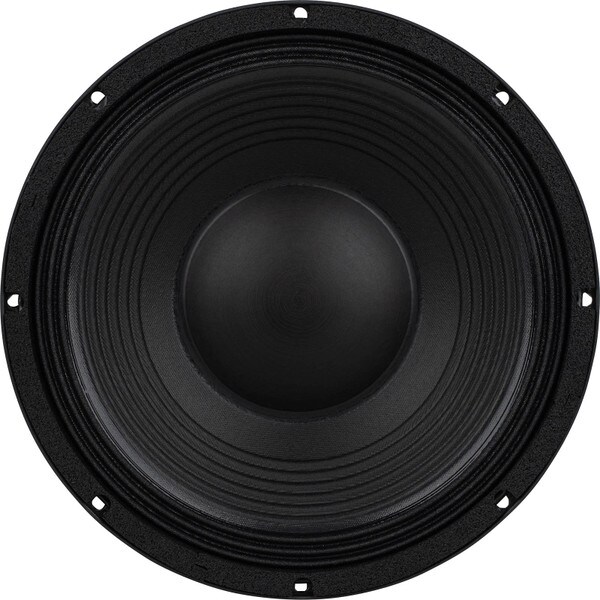

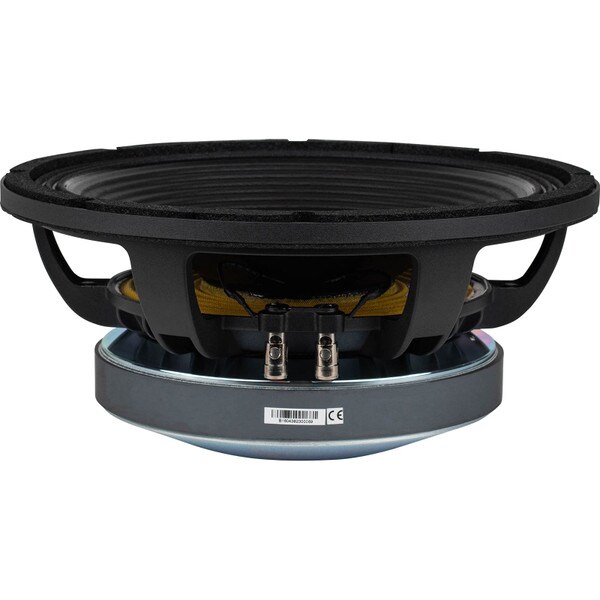

The LaVoce WAF124.01 is a powerful 12" woofer that features an impressive aluminum basket which provides exceptional cooling. A 4" voice coil and above average excursion make this a great choice for high powered bass applications.

Key Features
  • FEM optimized ferrite motor and suspensions
  • Optimized cooling system for reliable performance
  • Resonance-free, heavy-duty aluminum basket demonstrates excellent build quality
Your Price: $259.00
+ FREE SHIPPING
MSRP: $386.57
Save $127.57 (33%)
Bulk Pricing

Back-Ordered

Estimated back in stock 6/27/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Lavoce WAF124.01 12" Woofer

The LaVoce WAF124.01 is a powerful 12" woofer that features an impressive aluminum basket which provides exceptional cooling. A 4" voice coil and above average excursion make this a great choice for high powered bass applications. The gasket on this driver allows it to be rear mounted easily, providing additional installation flexibility. To add to the versatility of this driver, the cone has been treated to be waterproof, making it ideal for outdoor cabinets.

Product Details

BrandLavoce
ModelWAF124.01
Part Number293-812
UPC848864072777
Unit of MeasureEach
Weight29.35

Product Specifications

Nominal Diameter12"
Power Handling (RMS)1000 Watts
Power Handling (MAX)2000 Watts
Impedance8Ω
Frequency Response40 to 1,000Hz
Sensitivity96.5dB 2.83V/1m
Voice Coil Diameter4"

Thiele-Small Parameters

Resonant Frequency (Fs)42Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)1.58mH
Mechanical Q (Qms)5.72
Electromagnetic Q (Qes)0.22
Total Q (Qts)0.22
Compliance Equivalent Volume (Vas)1.88ft³
Mechanical Compliance of Suspension (Cms)0.129mm/N
BL Product (BL)25.62T·m
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)540cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.40"
Baffle Cutout Diameter11.28"
Depth5.49"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume1.625ft³
Vented F347.9Hz
