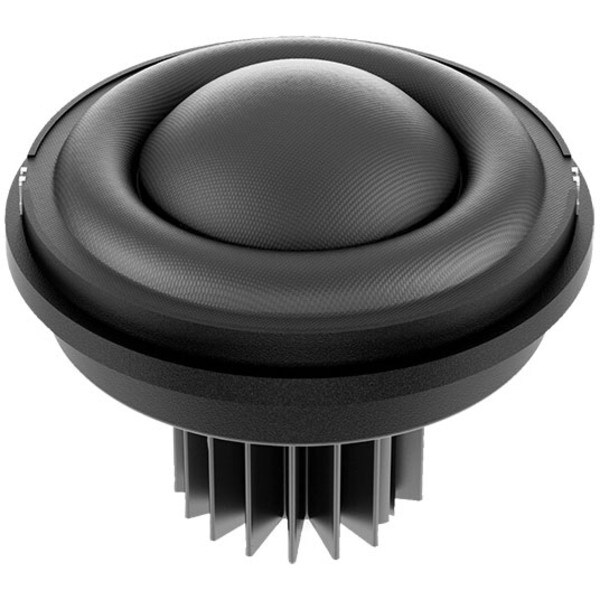

LaVoce TN131.00 1.3" Soft Dome Neodymium Tweeter 8 Ohm

LavocePart # 293-739
Model: TN131.00
LaVoce's TN131.00 is a high-quality 1.3" soft dome tweeter offering an excellent frequency response and low distortion. The compact design makes utilizing multiple tweeters very easy.

Key Features

  • FEM optimized motor and diaphragm
  • Textile dome and surround for non-fatiguing sound
  • Neodymium motor design with heatsink for proper heat dissipation
Your Price: $21.00
MSRP:
Save $10.00 (32%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when LaVoce TN131.00 1.3" Soft Dome Neodymium Tweeter 8 Ohm is back in stock or available for preorder.

Order in the next 3 hr 43 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce TN131.00 1.3" Soft Dome Neodymium Tweeter 8 Ohm

LaVoce's TN131.00 is a high-quality 1.3" soft dome tweeter offering an excellent frequency response and low distortion. The compact design makes utilizing multiple tweeters very easy.

The LaVoce TN131.00's neodymium motor assembly effectively concentrates flux in the gap, and highest motor strength efficiency is achieved through the use of FEM (Finite Element Modeling). A voice coil manufactured with CCAW (Copper Clad Aluminum Wire) and wound on a polyimide former assures great stability and thermal resistance.

Product Details

BrandLavoce
ModelTN131.00
Part Number293-739
UPC848864057613
Unit of MeasureEach
Weight0.25

Product Specifications

Cone / Dome Diameter1.125"
Cutout Diameter1.67
Tweeter TypeSoft Dome
Power Handling (RMS)15 Watts
Impedance8Ω
Frequency Response1,250 to 30,000Hz
Sensitivity92dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1250Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)0.89
Electromagnetic Q (Qes)1.6
Total Q (Qts)0.57

Mounting Information

Overall Outside Diameter1.89"
Depth1.22"
