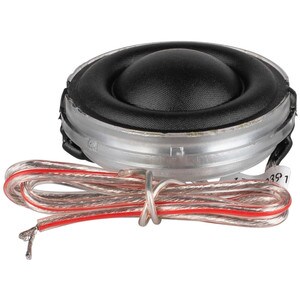

Lavoce TN100.70 1" Soft Dome Neodymium Tweeter 8 Ohm

LavocePart # 293-738
Model: TN100.70
LaVoce's TN100.70 is a high-quality 1" soft dome tweeter offering an excellent frequency response and low distortion. The rear pressure fit design makes installation simple and clean.

Key Features

  • FEM optimized motor and diaphragm
  • Textile dome and surround for non-fatiguing sound

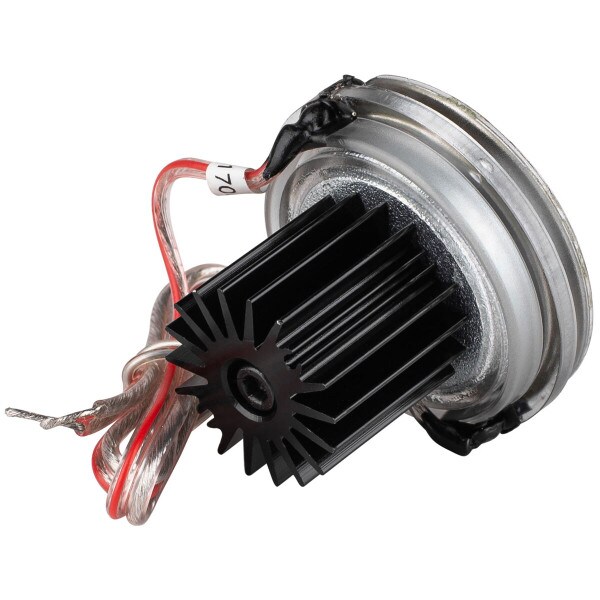

  • Neodymium motor design with heatsink for proper heat dissipation
  • Rear pressure fit design
Your Price: $15.00
MSRP: $22.39
Save $7.39 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Lavoce TN100.70 1" Soft Dome Neodymium Tweeter 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Lavoce TN100.70 1" Soft Dome Neodymium Tweeter 8 Ohm

LaVoce's TN100.70 is a high-quality 1" soft dome tweeter offering an excellent frequency response and low distortion. The rear pressure fit design makes installation simple and clean.

The LaVoce TN100.70's neodymium motor assembly effectively concentrates flux in the gap, and highest motor strength efficiency is achieved through the use of FEM (Finite Element Modeling). A voice coil manufactured with CCAW (Copper Clad Aluminum Wire) and wound on a polyimide former assures great stability and thermal resistance.

The wire with red stripe is the positive (+) terminal.

Product Details

BrandLavoce
ModelTN100.70
Part Number293-738
UPC848864057606
Unit of MeasureEach
Weight0.15

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.31
Tweeter TypeSoft Dome
Power Handling (RMS)8 Watts
Impedance
Frequency Response1,500 to 30,000Hz
Sensitivity90dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1500Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)2
Electromagnetic Q (Qes)2.9
Total Q (Qts)1.2

Mounting Information

Overall Outside Diameter1.51"
Depth0.94"
