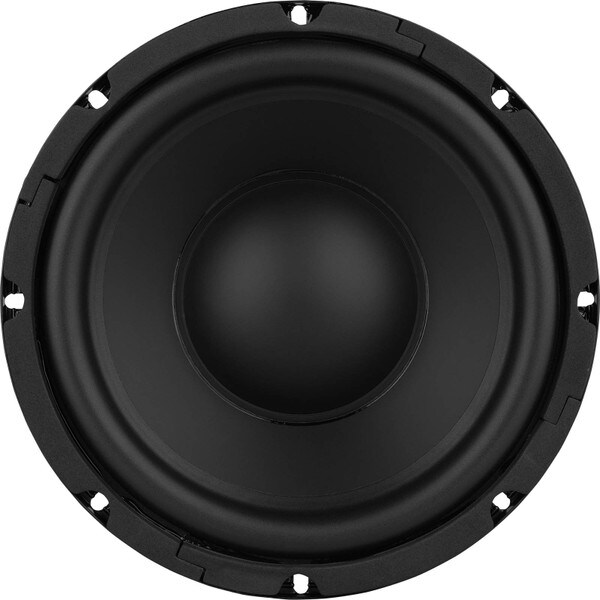

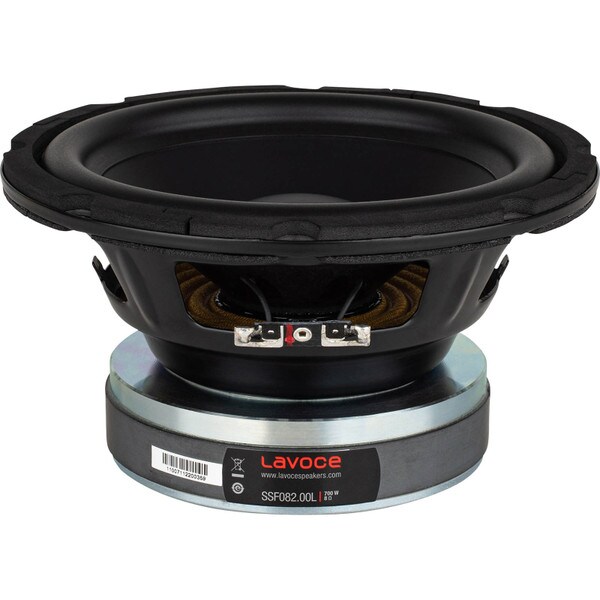

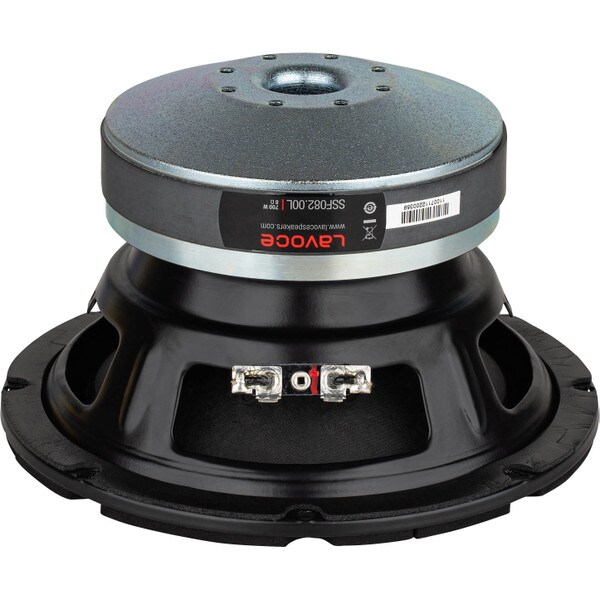

LaVoce SSF082.00L 8" Paper Cone Subwoofer

LavocePart # 293-784
Model: SSF082.00L
1 Question, 2 Answers or
The Lavoce SSF082.00L is the perfect candidate for a high-powered woofer or subwoofer application. Boasting 350 watts of RMS power, 29mm P-P maximum excursion and a 2” diameter CCAW voice coil, this woofer is ideal for chest thumping bass for home, studio or small PA applications.


Key Features

  • 2” copper clad aluminum voice coil for exceptional power handling
  • 700 watt program power handling (350WRMS)
  • Long throw design, 29mm (1.1”) P-P excursion
  • FEM optimized motor and suspensions
  • Long lasting rubber surround
  • Heavy duty treated paper cone
Your Price: $99.00
MSRP: $147.76
Save $48.76 (33%)
Bulk Pricing
9 In Stock
Get Notified When Available

We'll send you an email when LaVoce SSF082.00L 8" Paper Cone Subwoofer is back in stock or available for preorder.

Order in the next 11 hr 43 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce SSF082.00L 8" Paper Cone Subwoofer

The Lavoce SSF082.00L is the perfect candidate for a high-powered woofer or subwoofer application. Boasting 350 watts of RMS power, 29mm P-P maximum excursion and a 2” diameter CCAW voice coil, this woofer is ideal for chest thumping bass in home, studio or small PA applications. This woofer can be front or rear mounted and uses a heavy duty resonance-free steel basket design and optimized cooling for long lasting durability. With a sensitivity of 88 dB, it won’t require the biggest amplifiers to drive efficiently.


Product Details

BrandLavoce
ModelSSF082.00L
Part Number293-784
UPC848864069715
Unit of MeasureEach
Weight10.5

Product Specifications

Nominal Diameter8"
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance
Frequency Response50 to 500Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)52Hz
DC Resistance (Re)5.2Ω
Voice Coil Inductance (Le)2.51mH
Mechanical Q (Qms)9.94
Electromagnetic Q (Qes)0.52
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)0.34ft³
Mechanical Compliance of Suspension (Cms)0.144mm/N
BL Product (BL)14.67T·m
Diaphragm Mass Inc. Airload (Mms)66.3g
Maximum Linear Excursion (Xmax)9mm
Surface Area of Cone (Sd)216.42cm²

Materials of Construction

Cone MaterialPaper-Treated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter8.27"
Baffle Cutout Diameter7.17"
Depth4.49"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.35ft³
Sealed F360.2Hz
Vented Volume0.7ft³
Vented F342.5Hz
