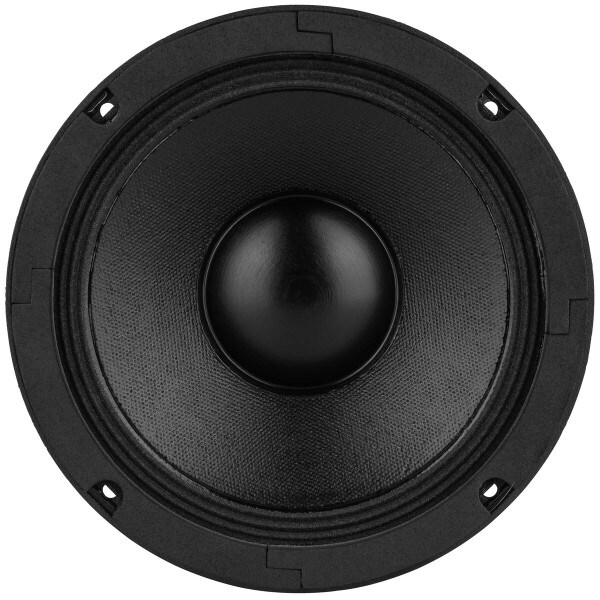

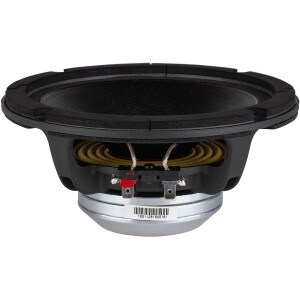

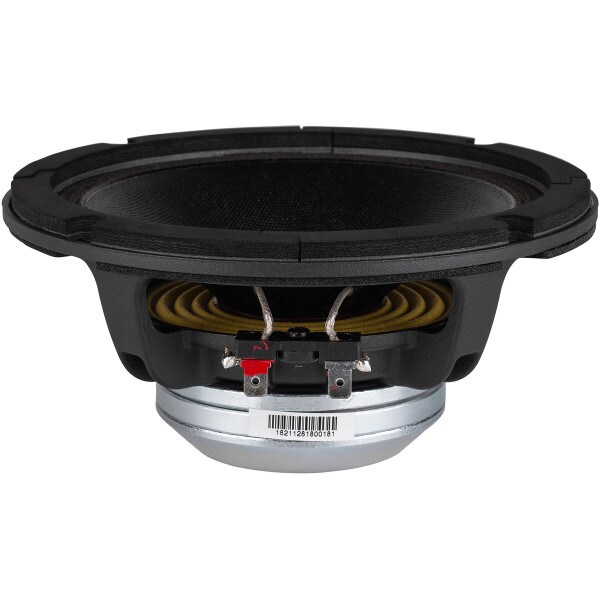

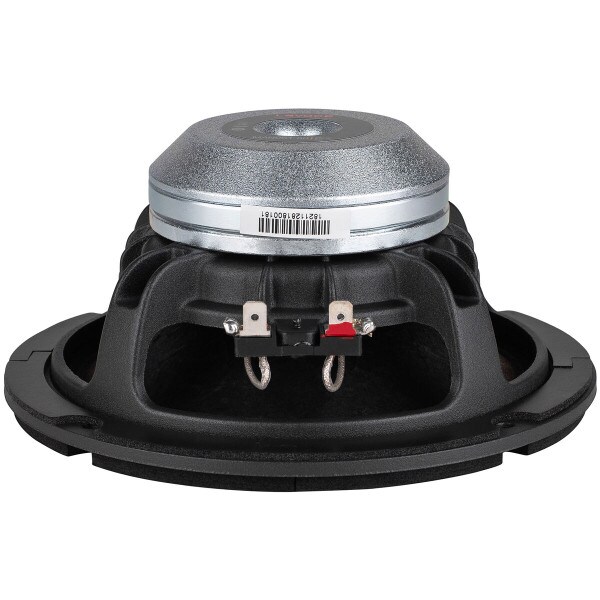

LaVoce MAN061.80 6-1/2" Neodymium Midrange Woofer 8 Ohm

Lavoce
Part #293-713

LaVoce MAN061.80 6-1/2" Neodymium Midrange Woofer 8 Ohm

Lavoce
Part #293-713
Model: MAN061.80
The LaVoce MAN061.80 is a 6.5" midrange driver that features a rigid cast aluminum basket which provides exceptional cooling and minimal resonance. The impressive 95.5 dB sensitivity gives this driver incredible dynamics and high output capability.
Key Features
  • FEM optimized Neodymium motor and suspensions
  • Optimized cooling system for reliable performance and low compression
  • 95.5 dB sensitivity for high output, even with moderately powered systems
  • Resonance-free, heavy-duty aluminum basket demonstrates excellent build quality
Your Price: $109.00
+ FREE SHIPPING
MSRP: $162.69
Save $53.69 (33%)
Bulk Pricing
Order in the next 0 hr 49 min to ship today. Details

Only 4 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce MAN061.80 6-1/2" Neodymium Midrange Woofer 8 Ohm

LaVoce's MAN061.80 6.5" high output midrange driver features a cast aluminum basket which provides exceptional cooling with minimal resonance. The impressive 95.5 dB sensitivity allows this driver to produce high SPL with incredible dynamics. With a front and rear mounted gasket, this driver can easily be installed onto either side of a baffle providing additional installation flexibility. To add to the versatility of this driver, the cone has been treated with a waterproof coating, making it ideal for outdoor cabinets.

Product Details

BrandLavoce
ModelMAN061.80
Part Number293-713
UPC848864057354
Unit of MeasureEach
Weight2.9

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.14
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance8Ω
Frequency Response170 to 6,000Hz
Sensitivity95.5dB 2.83V/1m
Voice Coil Diameter1.8"

Thiele-Small Parameters

Resonant Frequency (Fs)170Hz
DC Resistance (Re)5.5Ω
Voice Coil Inductance (Le)0.08mH
Mechanical Q (Qms)4.5
Electromagnetic Q (Qes)0.6
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)0.07ft³
Mechanical Compliance of Suspension (Cms)0.07mm/N
BL Product (BL)11T·m
Diaphragm Mass Inc. Airload (Mms)13g
Maximum Linear Excursion (Xmax)3mm
Surface Area of Cone (Sd)137cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.69"
Baffle Cutout Diameter5.71"
Depth3.08"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.06ft³
Sealed F3250Hz
Vented Volume0.12ft³
Vented F3137.5Hz
