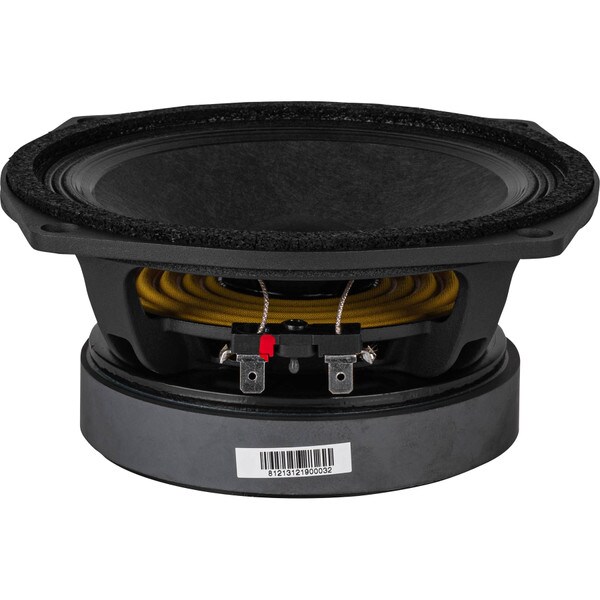

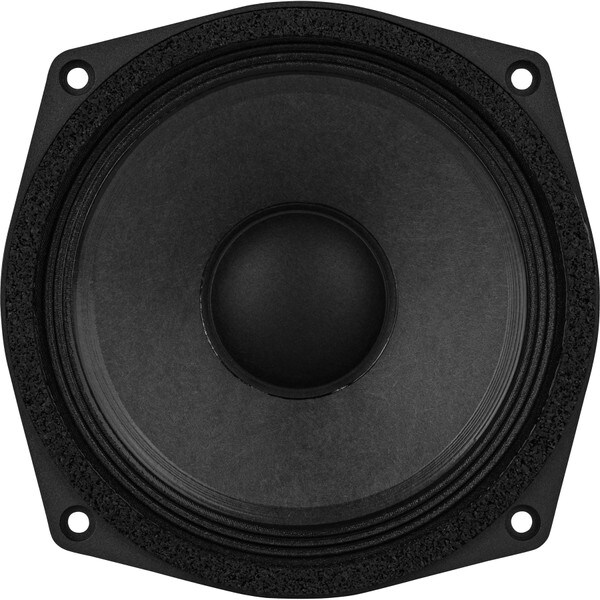

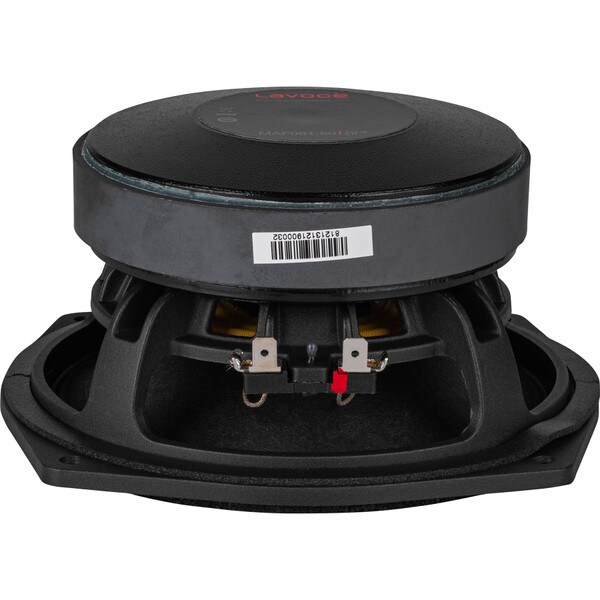

LaVoce MAF061.50 6-1/2" Professional Midrange Driver 8 Ohm

LavocePart # 293-746
Model: MAF061.50

Save Even More

A Restocked, Refurbished or Open Box unit is available!

View Now
The MAF061.50 6-1/2" professional midrange driver from LaVoce will deliver low distortion midrange response while achieving incredibly high SPL levels. The incredibly flat response and wide dispersion makes this driver perfect for use in high output 3-way designs such as mobile DJ speakers, stackable line arrays, or even mobile audio systems.

Key Features

  • Large 1.5" edgewound voice coil to handle up to 120 watts RMS (240 watts max)
  • 97 dB sensitivity ensures high output capability with dynamic response
  • Remarkably flat response even at 45 degrees off axis
  • Waterproof treated paper cone produces natural response with minimal resonances
Your Price: $95.00
MSRP: $142.00
Save $47.00 (33%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when LaVoce MAF061.50 6-1/2" Professional Midrange Driver 8 Ohm is back in stock or available for preorder.

Estimated back in stock 10/3/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce MAF061.50 6-1/2" Professional Midrange Driver 8 Ohm

Lavoce's MAF061.50 6-1/2" midrange driver is capable of high output midrange response with extremely low distortion. This driver features a powerful ferrite motor and lightweight cone and voice coil for incredibly high efficiency and dynamic output. The 1-1/2" edgewound CCA wire voice coil give the MAF061.50 the ability to handle up to 120 watts RMS (240 watts peak). With 97 dB sensitivity you can expect high output even with moderate input power. To keep inductance and distortion as low as possible the motor includes an integrated aluminum shorting ring. The waterproof treated paper cone has excellent damping properties and produces remarkably smooth response from 150 to 9,000 Hz for an easy transition to a woofers and tweeters. With a rugged construction and hi-fi type frequency response, the MAF061.50 will deliver incredible performance in any high SPL speaker systems.

Product Details

BrandLavoce
ModelMAF061.50
Part Number293-746
UPC848864061474
Unit of MeasureEach
Weight5.05

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)120 Watts
Power Handling (MAX)240 Watts
Impedance8Ω
Frequency Response150 to 9,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)172Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.32mH
Mechanical Q (Qms)3.2
Electromagnetic Q (Qes)0.59
Total Q (Qts)0.49
Compliance Equivalent Volume (Vas)0.09ft³
Mechanical Compliance of Suspension (Cms)0.09mm/N
BL Product (BL)9.97T·m
Diaphragm Mass Inc. Airload (Mms)9.7g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.69"
Baffle Cutout Diameter5.80"
Depth4.72"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3279.8Hz
Vented Volume0.2ft³
Vented F3127.2Hz
