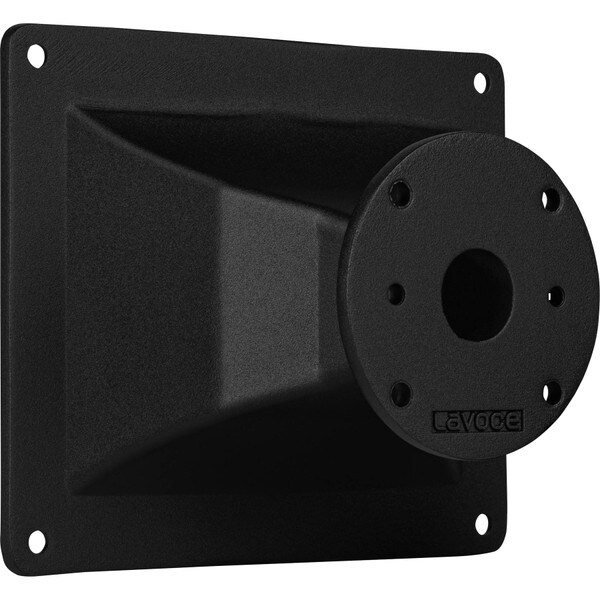

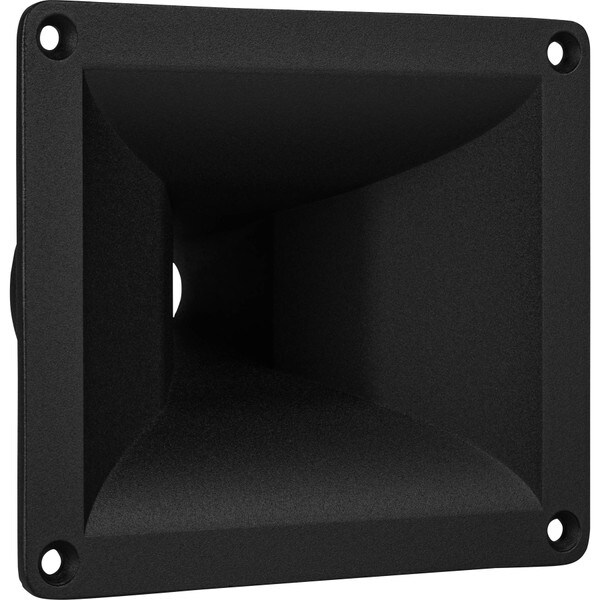

LaVoce HD1004 1" Cast Aluminum Exponential Horn 90 x 60 4-Bolt

LavocePart # 293-742
Model: HD1004
With a 90 x 60 degree dispersion pattern, LaVoce's HD1004 cast aluminum horn is perfect for filling a wide area with sound while controlling unwanted reflections. The 1" throat and low 1,200 Hz cutoff frequency makes this horn compatible with many of your favorite compression drivers.

Key Features

  • 80 x 60 degree dispersion pattern with excellent directivity control
  • Aluminum construction to ensure a solid mount and excellent heat dissipation
  • FEM optimized exponential flare with extremely even coverage
  • Low 1,200 Hz cutoff frequency for use with many popular 1" exit compression drivers
Your Price: $25.00
MSRP: $37.31
Save $12.31 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when LaVoce HD1004 1" Cast Aluminum Exponential Horn 90 x 60 4-Bolt is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce HD1004 1" Cast Aluminum Exponential Horn 90 x 60 4-Bolt

LaVoce's HD1004 1" constant directivity horn is a great choice when you need controlled dispersion high frequency output. With a rugged aluminum construction this horn will support the weight of the heavier compression drivers while acting as a heat sink to help lower power compression. The controlled 90° x 60° dispersion pattern will deliver the output right where you need it while minimizing unwanted reflections. This horn is a great choice for use with any of your favorite 1" exit bolt-on compression drivers.

Specifications: • Throat diameter: 1" • Driver mounting: 2-bolt • Nominal coverage: 90°H x 60° V • Cutoff frequency: 1,200 Hz • Dimensions: 6.1" H x 6.4" W x 3.9" D • Cutout dimensions: 4.5" H x 5.7" W.

Product Details

BrandLavoce
ModelHD1004
Part Number293-742
UPC848864061450
Unit of MeasureEach
Weight1.4

Product Specifications

ConstructionAluminum
Entry / Throat Diameter1"
Mounting Type2-Bolt
