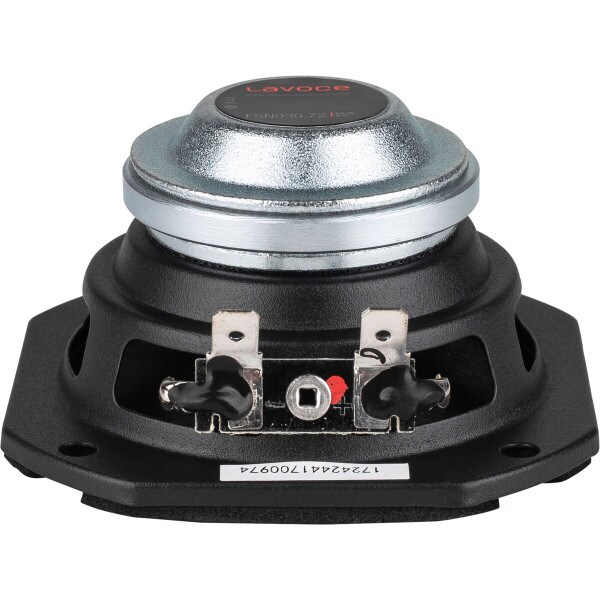

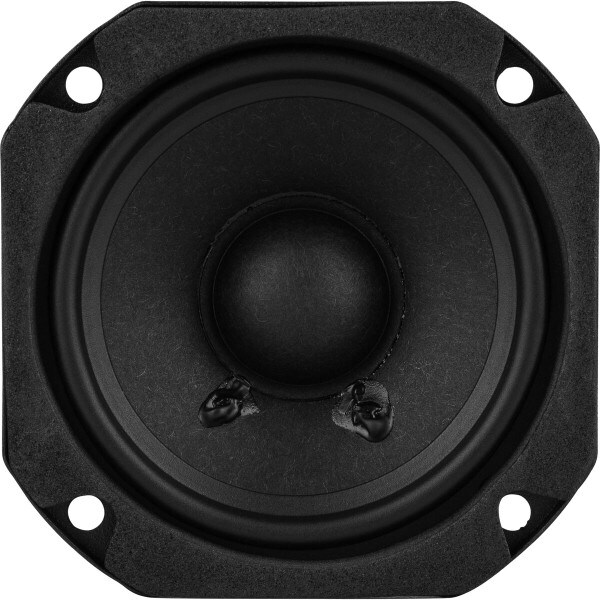

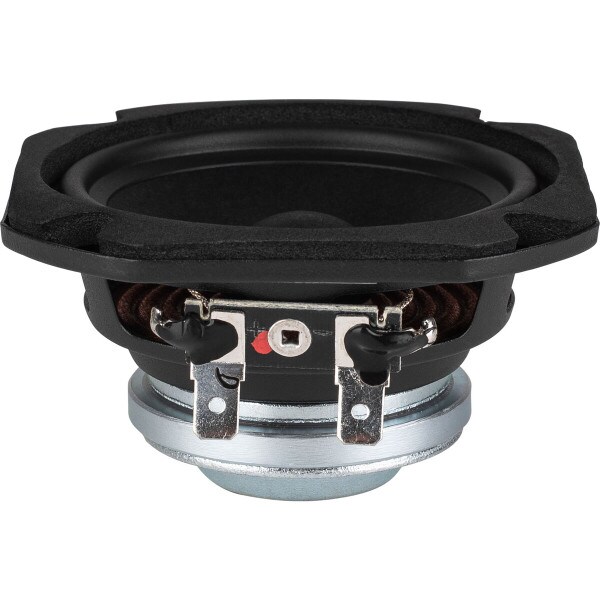

LaVoce FSN030.72 3" Neodymium Full-Range Woofer 8 Ohm

Lavoce
Part #293-707

LaVoce FSN030.72 3" Neodymium Full-Range Woofer 8 Ohm

Lavoce
Part #293-707
Model: FSN030.72
The LaVoce FSN030.72 is an impressive 3" full-range that features a rising response and compact frame, ideal for line arrays.
Key Features
  • FEM optimized Neodymium motor
  • Copper shorting sleeve for extended frequency response
  • Durable steel frame designed to reduce resonance
  • Integrated gasket allows for proper rear mounting
Your Price: $35.00
MSRP: $52.24
Save $17.24 (33%)
Bulk Pricing
Order in the next 0 hr 13 min to ship today. Details

Only 1 In Stock

More due any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce FSN030.72 3" Neodymium Full-Range Woofer 8 Ohm

The LaVoce FSN030.72 is an impressive 3" full-range driver that offers a waterproof treated paper cone. The rising response and the compact frame offered by this driver is ideal for line arrays and compact audio installations. The gasket on the front of the driver allows for it to be properly rear mounted.

Product Details

BrandLavoce
ModelFSN030.72
Part Number293-707
UPC848864057293
Unit of MeasureEach
Weight0.65

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.23
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response130 to 20,000Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)130Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.16mH
Mechanical Q (Qms)4.3
Electromagnetic Q (Qes)0.37
Total Q (Qts)0.34
Compliance Equivalent Volume (Vas)0.04ft³
Mechanical Compliance of Suspension (Cms)0.7mm/N
BL Product (BL)5.3T·m
Diaphragm Mass Inc. Airload (Mms)2.1g
Maximum Linear Excursion (Xmax)2.1mm
Surface Area of Cone (Sd)33.2cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.31"
Baffle Cutout Diameter2.77"
Depth46.5"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.01ft³
Sealed F3302.6Hz
Vented Volume0.04ft³
Vented F3131Hz
