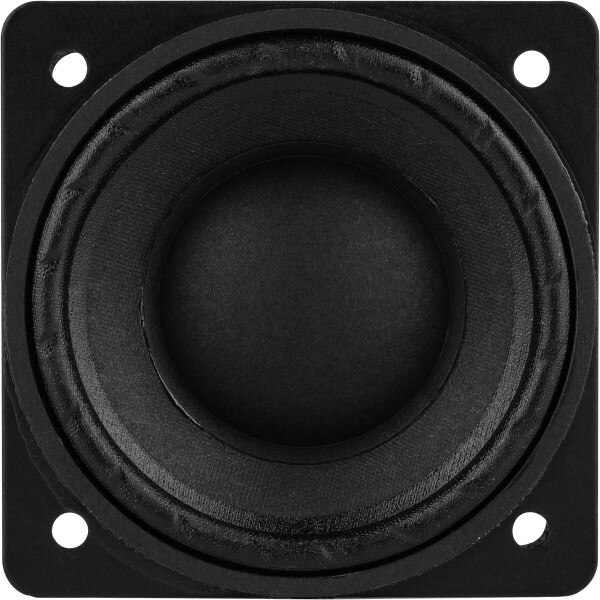

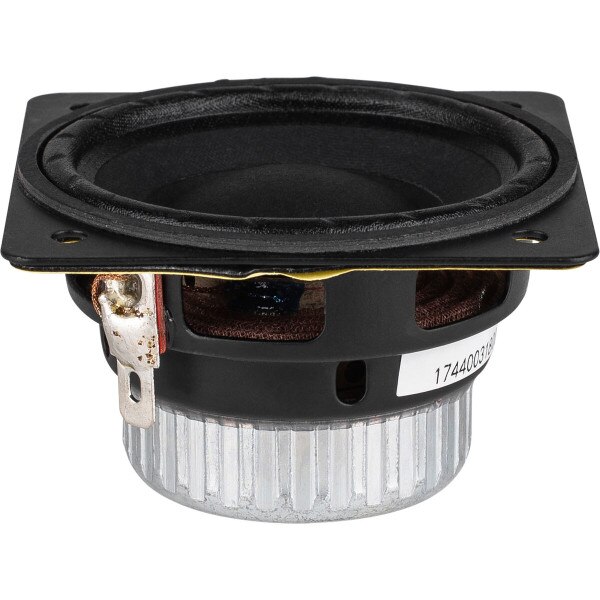

LaVoce FSN021.00 2" Neodymium Full-Range Woofer 8 Ohm

LavocePart # 293-704
Model: FSN021.00
The LaVoce FSN021.00 is an impressive 2" full-range that features a rising response and a compact frame, ideal for line arrays. the unique surround enhances the drivers linear excursion.

Key Features

  • FEM optimized Neodymium motor
  • Copper shorting sleeve for extended frequency response
  • Durable steel frame designed to reduce resonance
  • Flat flange design for easy mounting
  • Unique surround provides enhanced linearity
Your Price: $28.00
MSRP: $41.79
Save $13.79 (33%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when LaVoce FSN021.00 2" Neodymium Full-Range Woofer 8 Ohm is back in stock or available for preorder.

Special Order Ships in 20-30 Days
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce FSN021.00 2" Neodymium Full-Range Woofer 8 Ohm

The FSN021.00 from LaVoce is an impressive 2" full-range driver that offers a waterproof treated paper cone. The rising response and the compact flat frame offered by this driver is ideal for line arrays and compact audio installations. The unique surround enhances the linearity of the drivers excursion.

Product Details

BrandLavoce
ModelFSN021.00
Part Number293-704
UPC848864057262
Unit of MeasureEach
Weight0.4

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter2.3
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance
Frequency Response200 to 20,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)220Hz
DC Resistance (Re)5.7Ω
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)3
Electromagnetic Q (Qes)0.73
Total Q (Qts)0.59
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.4mm/N
BL Product (BL)3.6T·m
Diaphragm Mass Inc. Airload (Mms)1.25g
Maximum Linear Excursion (Xmax)1.8mm
Surface Area of Cone (Sd)19cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.52"
Baffle Cutout Diameter2.08"
Depth1.38"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.02ft³
Sealed F3295.2Hz
Vented Volume0.04ft³
Vented F3162Hz
