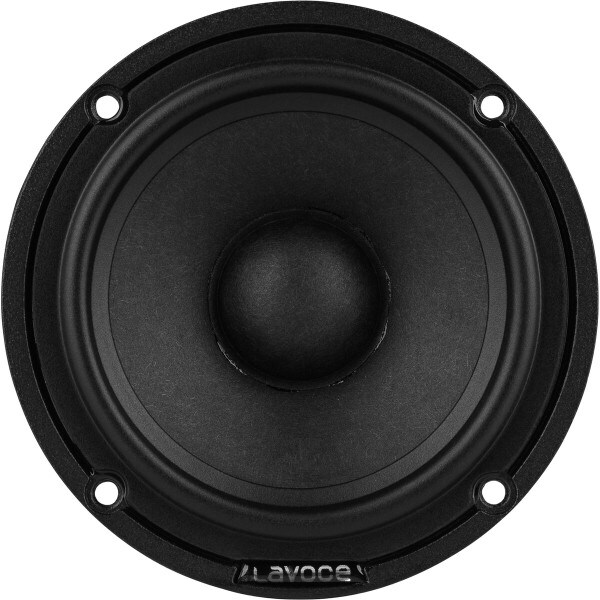

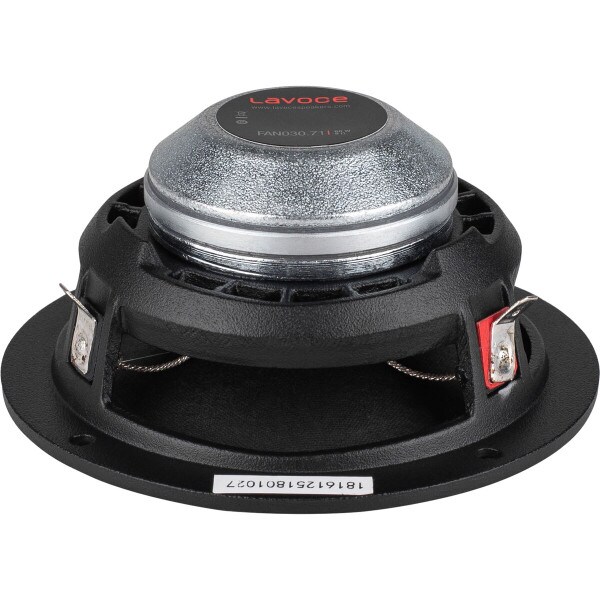

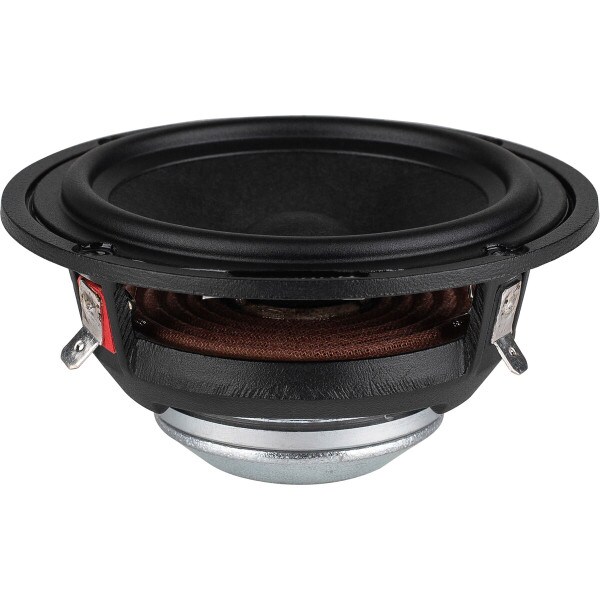

CLEARANCE LaVoce FAN030.71 3" Neodymium Full-Range Woofer 8 Ohm

LavocePart # 293-708
Model: FAN030.71
The LaVoce FAN030.71 is an impressive 3" full-range that features a rising response, which ideal for line arrays. The low resonant frequency of 120 Hz, gives this driver the ability to crossover very low, and mate to a subwoofer easily.

Key Features

  • FEM optimized Neodymium motor
  • Copper shorting sleeve for extended frequency response
  • Durable cast aluminum frame acts as an effective heatsink
  • Low resonant frequency for easy mating to a subwoofer
Get Notified When Available

We'll send you an email when LaVoce FAN030.71 3" Neodymium Full-Range Woofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

LaVoce FAN030.71 3" Neodymium Full-Range Woofer 8 Ohm

The LaVoce FAN030.71 is an impressive 3" full-range that features a rising response, which ideal for line arrays. The low resonant frequency of 120 Hz, gives this driver the ability to crossover very low, and mate to a subwoofer easily. In addition to aiding to its aesthetically pleasing appearance, the cast aluminum frame acts as a very effective heat sink.

Product Details

BrandLavoce
ModelFAN030.71
Part Number293-708
UPC848864057309
Unit of MeasureEach
Weight0.6

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.15
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response120 to 21,000Hz
Sensitivity89.5dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)120Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)4.4
Electromagnetic Q (Qes)0.6
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)0.05ft³
Mechanical Compliance of Suspension (Cms)0.8mm/N
BL Product (BL)4T·m
Diaphragm Mass Inc. Airload (Mms)2g
Maximum Linear Excursion (Xmax)2.1mm
Surface Area of Cone (Sd)33.2cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.46"
Baffle Cutout Diameter2.87"
Depth1.74"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.03ft³
Sealed F3191.2Hz
Vented Volume0.08ft³
Vented F3103.2Hz
