  • LaVoce DF10.172K 1" Polymer Compression Driver 4-Bolt

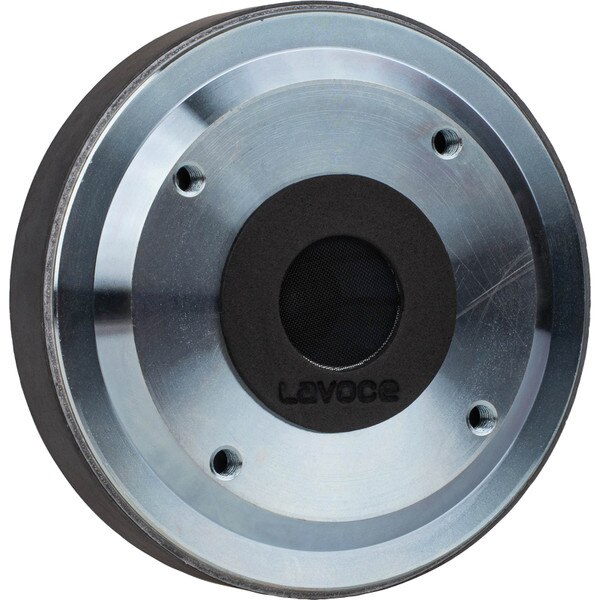

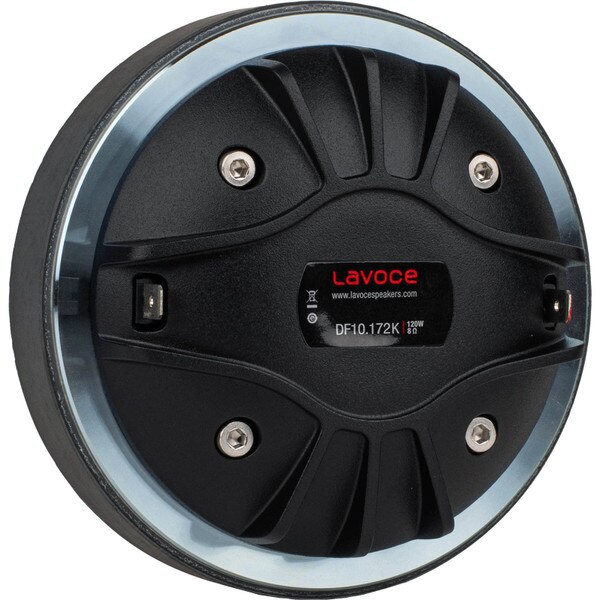

LaVoce DF10.172K 1" Polymer Compression Driver 4-Bolt

LavocePart # 293-774
Model: DF10.172K
Read 1 Review or
Lavoce’s DF10.172K 1” compression driver has been engineered for smooth response, low distortion, and high SPL output. With a 1.7” edgewound voice coil, damped polyimide diaphragm/surround assembly, and large ferrite magnet this driver is capable of remarkably smooth response with minimal power compression. The DF10.172K is perfect for any high output design that requires flat response, high power handling, and extreme output capability.

Key Features

  • 1.7” edgewound CCA voice coil on high temp Kapton former for low mass with maximum motor force
  • FEM optimized motor, phase plug, and diaphragm to deliver remarkably accurate response
  • Damped polyimide diaphragm and surround provides smooth and natural high frequency response
  • Next generation compression driver delivers natural sound and high output capability
  • Standard 4-bolt mount for use on many popular 1” throat horns and waveguides
Your Price: $109.00
+ FREE SHIPPING
MSRP: $163.00
Save $54.00 (33%)
Bulk Pricing
Only 2 In Stock
Get Notified When Available

We'll send you an email when LaVoce DF10.172K 1" Polymer Compression Driver 4-Bolt is back in stock or available for preorder.

Order in the next 14 hr 14 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce DF10.172K 1" Polymer Compression Driver 4-Bolt

The DF10.172K 1” high frequency compression driver from Lavoce’s Next Generation line offers lower distortion, smoother response, and lower power compression than their previous designs. With a naturally damped high temperature polyimide diaphragm and surround, the DF10.172K produces extremely flat response all the way up to 20,000 Hz for a natural and detailed sound. To minimize mass, the voice coil uses a heat resistant Kapton former wrapped with edgewound copper coated aluminum wire which allows this driver to deliver 108.5 dB sensitivity. The powerful ferrite motor helps dissipate unwanted heat which helps control power compression to ensure that output levels are consistent, even after being pushed to the limit for extended periods of time. Thanks to the smooth response and impressive output capability, the DF10.172K is capable of providing dynamic performance to anything from high fidelity home audio systems to professional designs capable of extreme sound pressure levels.

Specifications: • Power handling: 60 watts RMS (120 watts program power) • VCdia: 1.7" • Impedance: 8 ohms • Recommended crossover: 1,600 Hz @ 12dB/octave high pass • Frequency response: 1,000-20,000 Hz • SPL: 108.5 dB 2.83V/1m • Dimensions: 4.5" diameter x 2" depth • Net weight: 3.5 lbs.

Product Details

BrandLavoce
ModelDF10.172K
Part Number293-774
UPC848864068206
Unit of MeasureEach
Weight4

Product Specifications

Diaphragm MaterialKapton / Polyimide
Exit Diameter1"
Mounting Type4-Bolt
Power Handling (RMS)60 Watts
Impedance8Ω
