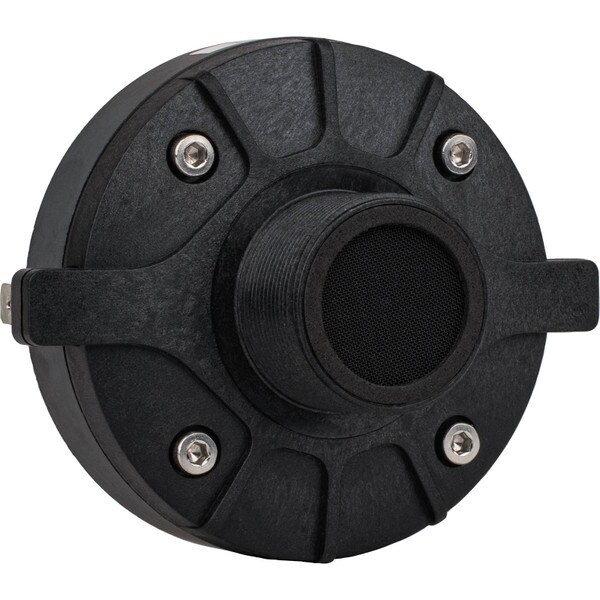

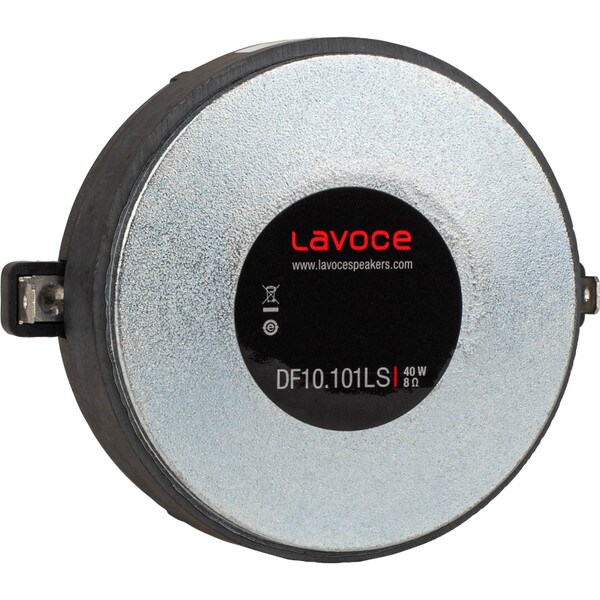

LaVoce DF10.101LS 1" Polymer Compression Driver 1-3/8"-18 TPI

1 Question, 2 Answers or
Lavoce
Part #293-768

LaVoce DF10.101LS 1" Polymer Compression Driver 1-3/8"-18 TPI

Lavoce
Part #293-768
Model: DF10.101LS
1 Question, 2 Answers or
Lavoce’s DF10.101LS 1” high frequency compression driver features a new diaphragm, chamber, and phase plug design to deliver remarkably smooth frequency response, low distortion, and minimal power compression. The high temperature polymer diaphragm and surround has excellent damping properties which gives the DF10.101LS smooth and natural response. This next generation compression driver is a great choice for use in high output home audio designs, studio monitors, and high SPL mobile systems.
Key Features
  • Next generation compression driver delivers natural response and high output capability
  • FEM optimized motor, diaphragm, and phase plug to produce flat response with low distortion
  • 107 dB efficiency with 20 watt RMS power handling for incredibly dynamic output
  • Damped polymer diaphragm and surround provides smooth and natural high frequency response
  • 1-3/8” 18 TPI mount for an easy fit onto many popular horns
Your Price: $39.00
MSRP: $58.21
Save $19.21 (33%)
Bulk Pricing
Order in the next 0 hr 54 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

LaVoce DF10.101LS 1" Polymer Compression Driver 1-3/8"-18 TPI

The DF10.101LS 1” high frequency compression driver from Lavoce’s Next Generation line offers lower distortion, smoother response, and lower power compression than their previous designs. With a naturally damped high temperature polymer diaphragm and surround, the DF10.101LS produces extremely flat response for a natural and accurate sound. To minimize mass, the voice coil uses a heat resistant Kapton former wound with copper coated aluminum wire which allows this driver to deliver 107 dB sensitivity. The powerful ferrite motor helps dissipate unwanted heat which helps control power compression to ensure that output levels are consistent, even after being pushed to the limit for extended periods of time. Thanks to the smooth response and impressive output capability, the DF10.101LS is capable of providing dynamic performance to anything from high fidelity home audio systems to professional designs capable of extreme sound pressure levels.

Specifications: • Power handling: 20 watts RMS (40 watts program power)• VCdia: 1" • Impedance: 8 ohms • Recommended crossover: 2,500 Hz @ 12dB/octave high pass • Frequency response: 1,500-18,000 Hz • SPL: 107 dB 2.83V/1m • Dimensions: 3.3" diameter x 0.8" depth (2.2" with threads) • Net weight: 1.7 lbs.

Product Details

BrandLavoce
ModelDF10.101LS
Part Number293-768
UPC848864068176
Unit of MeasureEach
Weight1.8

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)20 Watts
Impedance
