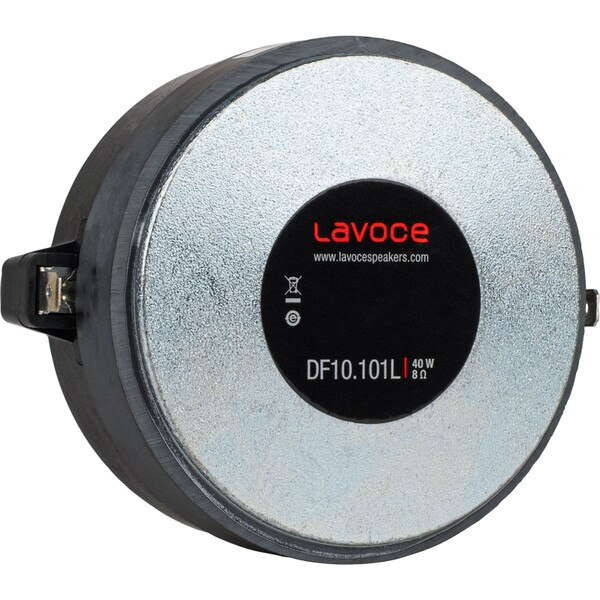

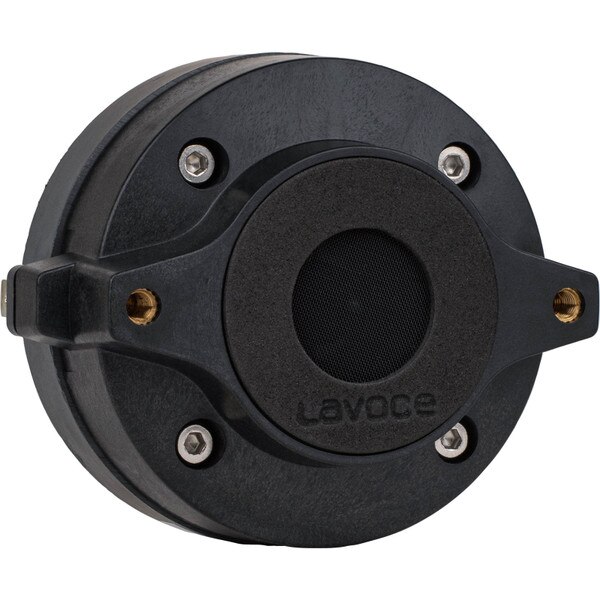

LaVoce DF10.101L 1" Polymer Compression Driver 2-Bolt

LavocePart # 293-770
Model: DF10.101L
Lavoce’s DF10.101L 1” high frequency compression driver features a new diaphragm, chamber, and phase plug design to deliver remarkably smooth frequency response, low distortion, and minimal power compression. The high temperature polymer diaphragm and surround has excellent damping properties which gives the DF10.101L smooth and natural response. This next generation compression driver is a great choice for use in high output home audio designs, studio monitors, and high SPL mobile systems.

Key Features

  • Next generation compression driver delivers natural response and high output capability
  • FEM optimized motor, diaphragm, and phase plug to produce flat response with low distortion
  • 107 dB efficiency with 20 watt RMS power handling for incredibly dynamic output
  • Damped polymer diaphragm and surround provides smooth and natural high frequency response
  • 1” exit with standard 2-bolt mount for an easy fit onto many popular horns
Your Price: $39.00
MSRP: $58.00
Save $19.00 (33%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when LaVoce DF10.101L 1" Polymer Compression Driver 2-Bolt is back in stock or available for preorder.

Order in the next 1 hr 18 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce DF10.101L 1" Polymer Compression Driver 2-Bolt

The DF10.101L 1” exit 2-bot high frequency compression driver from Lavoce’s Next Generation line offers lower distortion, smoother response, and lower power compression than their previous designs. With a naturally damped high temperature polymer diaphragm and surround, the DF10.101L produces extremely flat response for a natural and accurate sound. To minimize mass, the voice coil uses a heat resistant Kapton former wound with copper coated aluminum wire which allows this driver to deliver 107 dB sensitivity. The powerful ferrite motor helps dissipate unwanted heat which helps control power compression to ensure that output levels are consistent, even after being pushed to the limit for extended periods of time. Thanks to the smooth response and impressive output capability, the DF10.101L is capable of providing dynamic performance to anything from high fidelity home audio systems to professional designs capable of extreme sound pressure levels.

Specifications: • Power handling: 20 watts RMS (40 watts program power)• VCdia: 1" • Impedance: 8 ohms • Recommended crossover: 2,500 Hz @ 12dB/octave high pass • Frequency response: 1,500-18,000 Hz • SPL: 107 dB 2.83V/1m • Dimensions: 3.3" diameter x 2.2" depth • Net weight: 1.7 lbs.

Product Details

BrandLavoce
ModelDF10.101L
Part Number293-770
UPC848864068183
Unit of MeasureEach
Weight1.9

Product Specifications

Diaphragm MaterialPoly / Mylar
Exit Diameter1"
Mounting Type2-Bolt
Power Handling (RMS)20 Watts
Impedance8Ω
