  • LG EAB33496904 1-5/8" x 4-1/2" Full-Range Paper Cone Speaker

BUYOUT LG EAB33496904 1-5/8" x 4-1/2" Full-Range Paper Cone Speaker

Factory BuyoutsPart # 289-2254
Model: EAB33496904

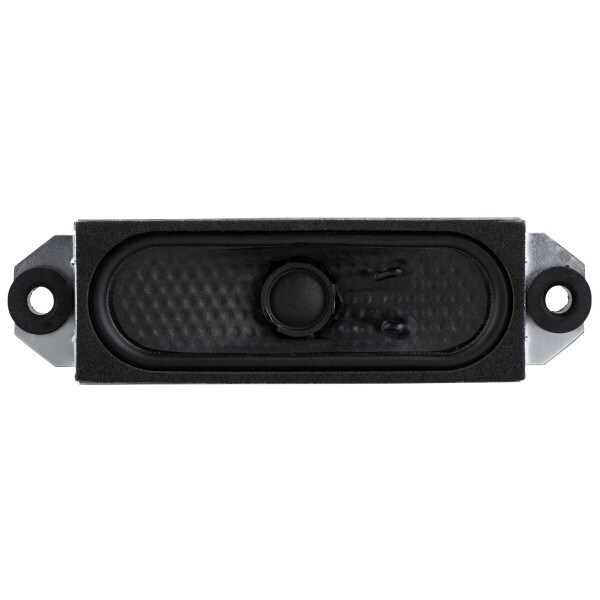

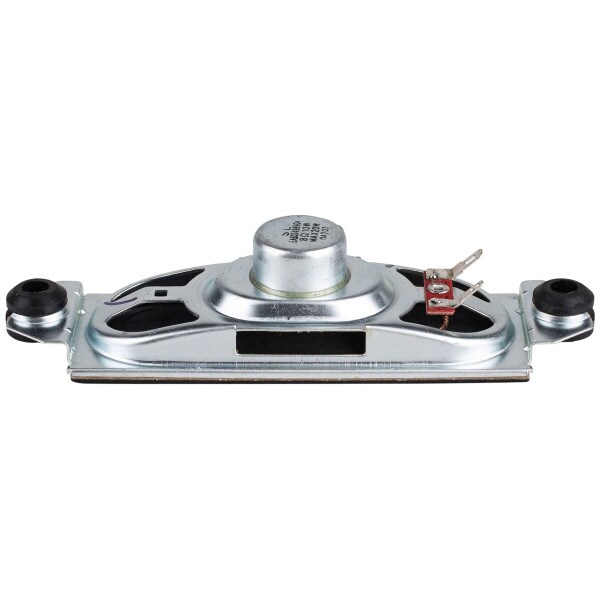

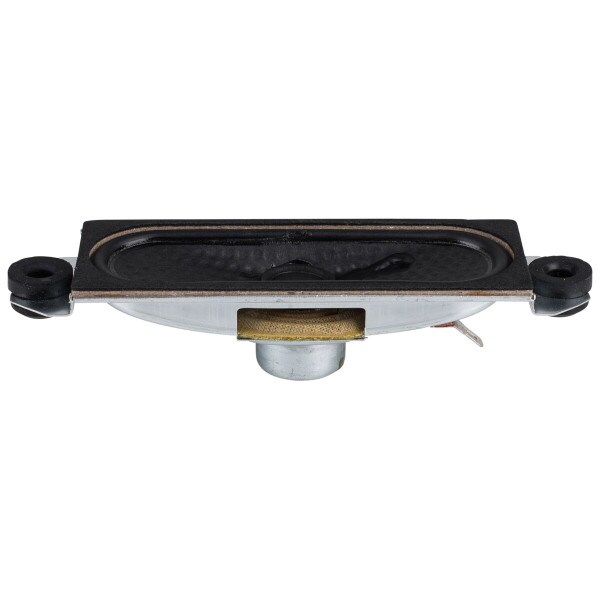

This 8 ohm 1-5/8" x 4-1/2" full-range replacement TV speaker is an OEM replacement driver for a number of LG LCD TVs. With a dimpled paper cone and rubber surround, this driver will produce natural frequency response with minimal resonances.

Key Features

  • Foam front gasket ensures good seal when rear mounted
  • Paper cone with rubber surround for minimal resonance
  • Powerful neodymium motor keeps size and weight to a minimum
  • Ideal for infinite baffle or open back designs
BUYOUT $1.61
Bulk Pricing
Quantity:Qty: 1-9 $1.61/ea
Quantity:Qty: 10-49 $1.09/ea
Quantity:Qty: 50+ $0.78/ea
4994 In Stock
Get Notified When Available

We'll send you an email when LG EAB33496904 1-5/8" x 4-1/2" Full-Range Paper Cone Speaker is back in stock or available for preorder.

Order in the next 4 hr 24 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LG EAB33496904 1-5/8" x 4-1/2" Full-Range Paper Cone Speaker

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1-5/8" x 4-1/2" speaker, which is part of a massive TV speaker factory buyout from Brazil.

Originally found in a number of LG LCD TVs, this speaker features a rectangular design with an extremely low profile frame making it a great choice for shallow designs such as sound bars and portable speakers. With a paper cone and rubber surround this driver will produce smooth response from 150 to 14,000 Hz.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
ModelEAB33496904
Part Number289-2254
UPC848864048499
Unit of MeasureEach
Weight0.15

Product Specifications

Nominal Diameter1 x 5"
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance8Ω
Frequency Response150 to 14,000Hz
Sensitivity80dB 2.83V/1m
Voice Coil Diameter0.625"

Thiele-Small Parameters

Resonant Frequency (Fs)180Hz
DC Resistance (Re)7.85Ω
Voice Coil Inductance (Le)0.44mH
Mechanical Q (Qms)4.09
Electromagnetic Q (Qes)4.36
Total Q (Qts)2.11
Compliance Equivalent Volume (Vas)0.02ft³
Mechanical Compliance of Suspension (Cms)0.43mm/N
BL Product (BL)1.93T·m
Diaphragm Mass Inc. Airload (Mms)1.82g
Surface Area of Cone (Sd)28.27cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter5.875" x 1.6875"
Baffle Cutout Diameter4.25" x 1.375"
Depth1.25"
# Mounting Holes2
