Knock-Down MDF 1.16 cu. ft. Tower Speaker CabinetCNC knock-down cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills, perfect for DIYers without expensive tools or access to a woodshop.

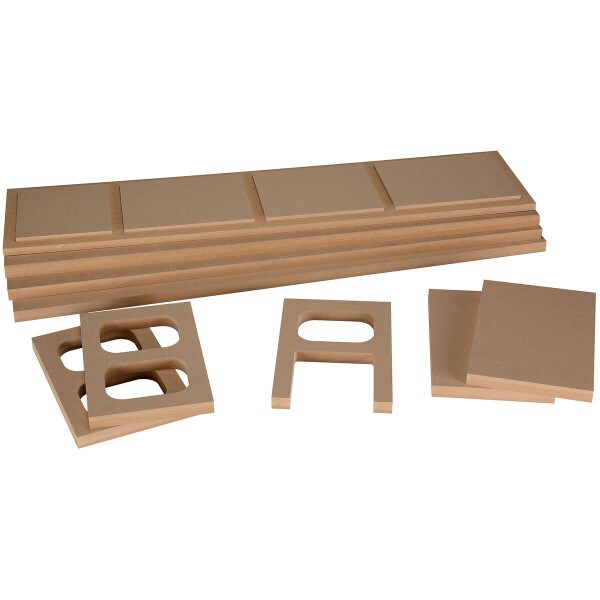

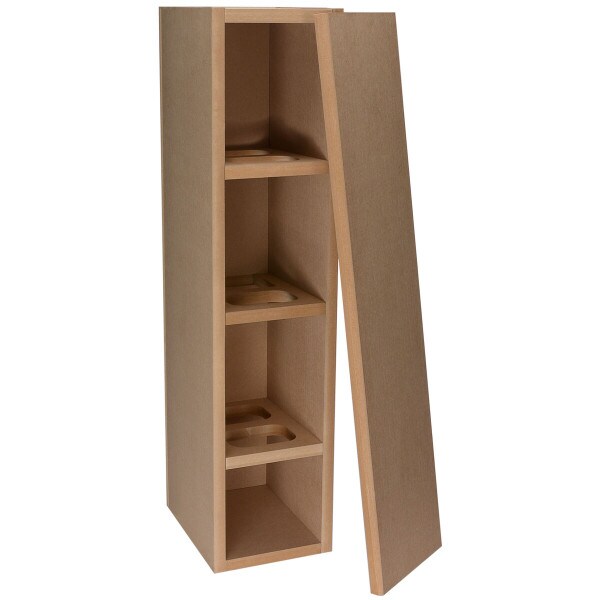

During the CNC process, dadoes are cut into the top, bottom, and rear panels to ensure a tight, secure fit that maximizes the gluing surface and making assembly that much easier. This tower cabinet allows you to create your very own front left or right tower speaker... or even a large format center channel speaker! Three included window braces add structural integrity while consuming as little internal volume as possible.
Additionally, users can mount side-firing a woofer (up to 8" maximum is recommended) for a modern 3-way design. The end result is a speaker cabinet that assembles in no time flat—all you need are wood clamps, wood glue, and about five minutes; no screws needed.
Note: Panel dimensions and a 3D SketchUp model are included in the Manuals/Resources section. To open and use the 3D model, you need to download and install a program to unzip the file (7-Zip is free and recommended) and then download and install SketchUp to open the .skp file.
Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished cabinet volume: 1.16 cubic feet • External dimensions: 34" H x 8" W x 11" D • Internal dimensions: 32-1/2" H x 6-1/2" W x 9-1/2" D • Made in the U.S.A. • Sold individually.
