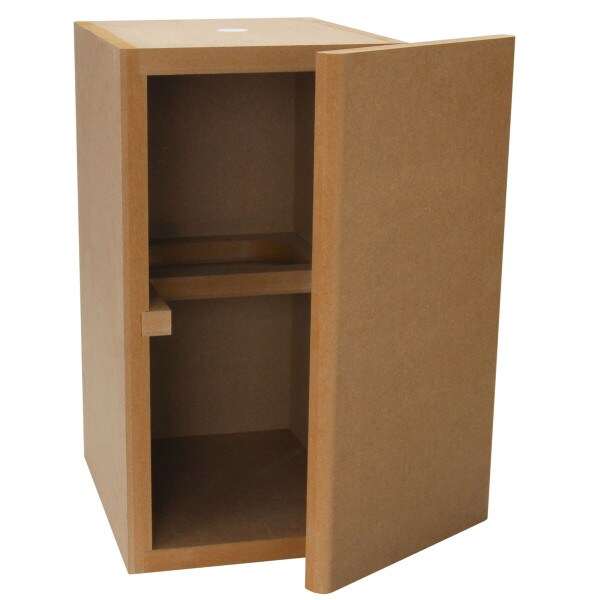

Knock-Down MDF 0.56 cu. ft. Bookshelf Speaker CabinetCNC knock-down cabinets make it easy for the beginner to end up with amazing finished results without all of the time and effort necessary to perfect your woodworking skills, perfect for speaker builders who don't have expensive tools or access to a woodshop. Assembly literally takes minutes!

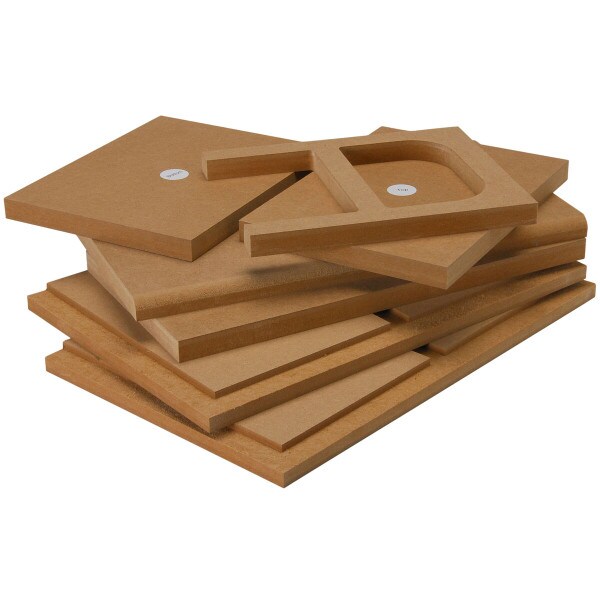

During the CNC process, dadoes are cut into the top, bottom, and rear of the side panels to ensure a secure fit while maximizing the gluing surface and making assembly easy. An optional window brace is included to offer rock-solid rigidity.
The front baffle features roundovers on the sides for a professional look while minimizing diffraction, and the entire cabinet is made of MDF for an acoustically inert effect on speakers. While designed to be a 0.56 cubic foot bookshelf cabinet, this enclosure can alternatively be laid upon its side for center channel use.

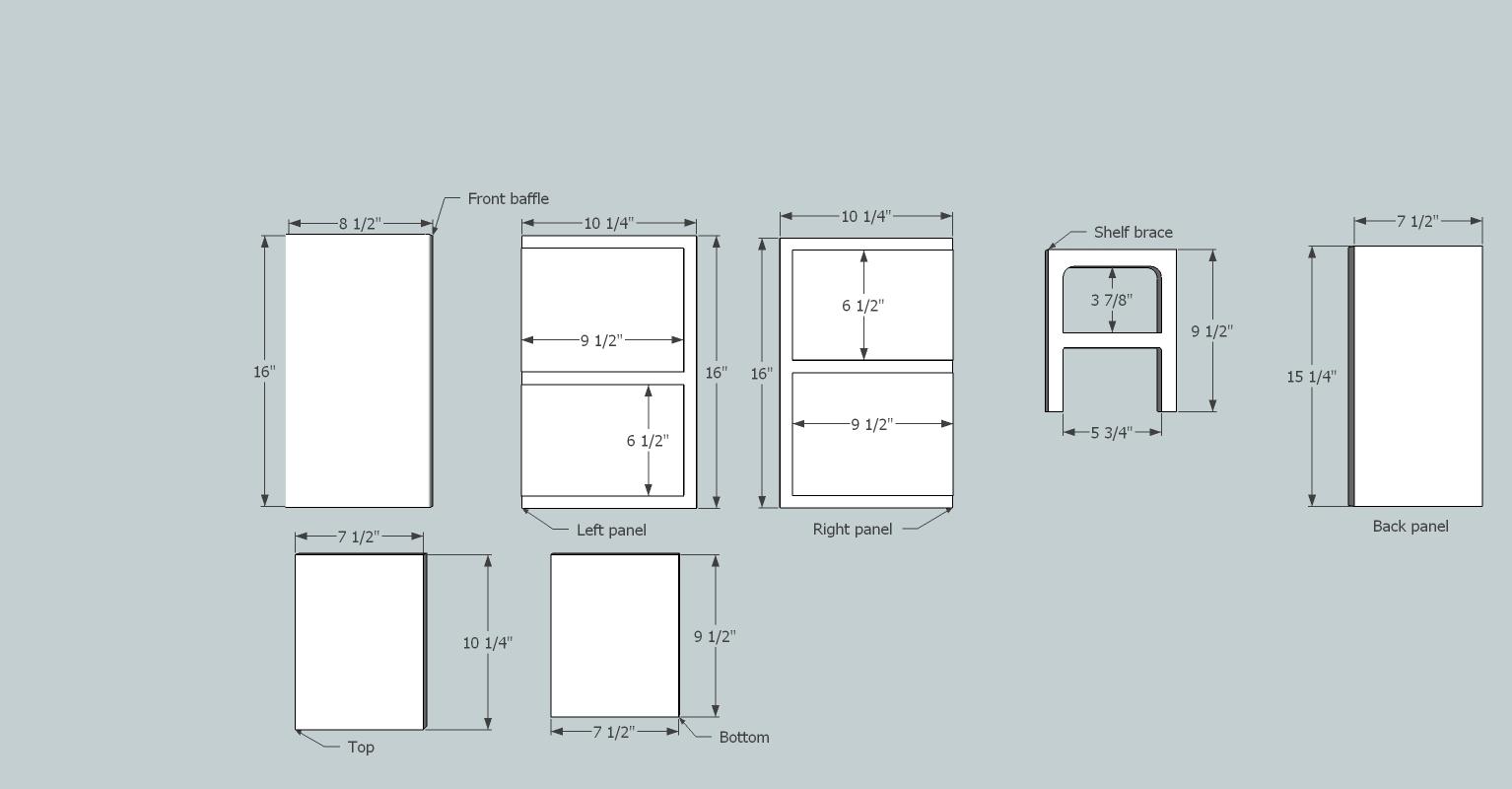

Note: Panel dimensions and a 3D SketchUp model are included in the Manuals/Resources section. To open and use the 3D model, you need to download and install a program to unzip the file (7-Zip is free and recommended) and then download and install SketchUp to open the .skp file.
Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished cabinet volume: 0.56 cubic feet • External dimensions: 16" H x 8.5" W x 11" D • Internal dimensions: 14.5" H x 7" W x 9.5" D • Made in the U.S.A. • Sold individually.
